Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Recline the driver seat rearward to access the left center trim pillar.
  1. Remove the upper portion of the left center trim pillar.
  2. Disconnect the electrical connector.
  3. Remove the retaining clips from the B pillar.
  4. Remove the inside air temperature sensor assembly (1) from the B pillar.

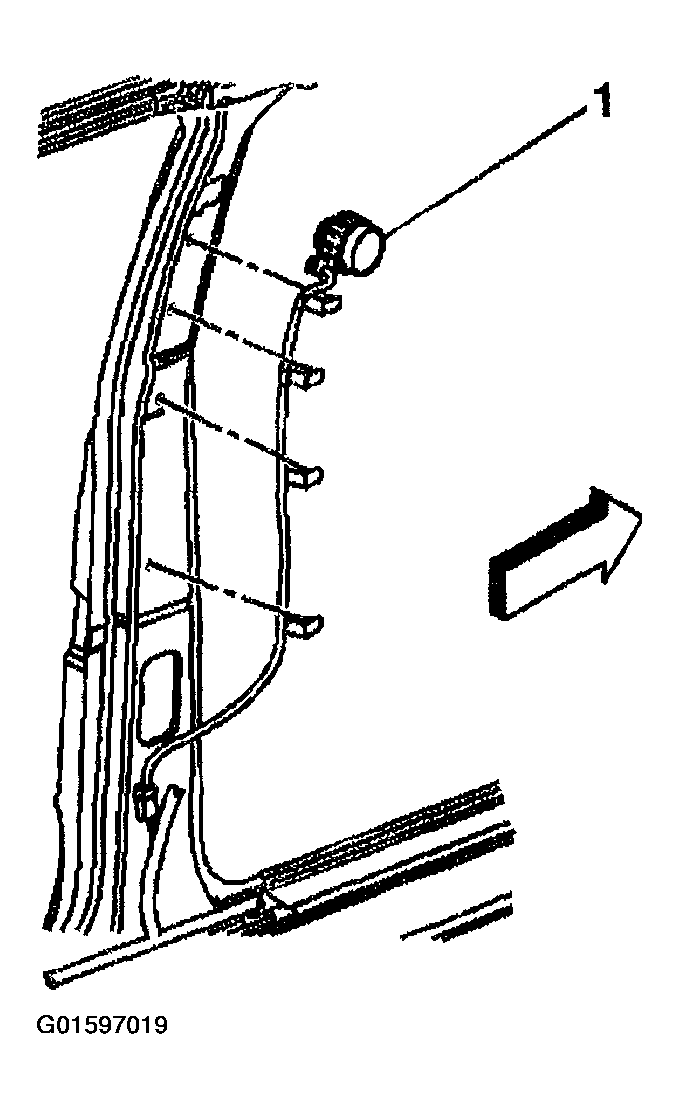

    Fig 1: Removing Inside Air Temperature Sensor Assembly
    G01597019Courtesy of GENERAL MOTORS CORP.
