Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press downward and to the right on the front auxiliary blower motor switch.
  2. Remove the front auxiliary blower motor switch from the console.
  3. Disconnect the electrical connector from the front auxiliary blower motor switch.

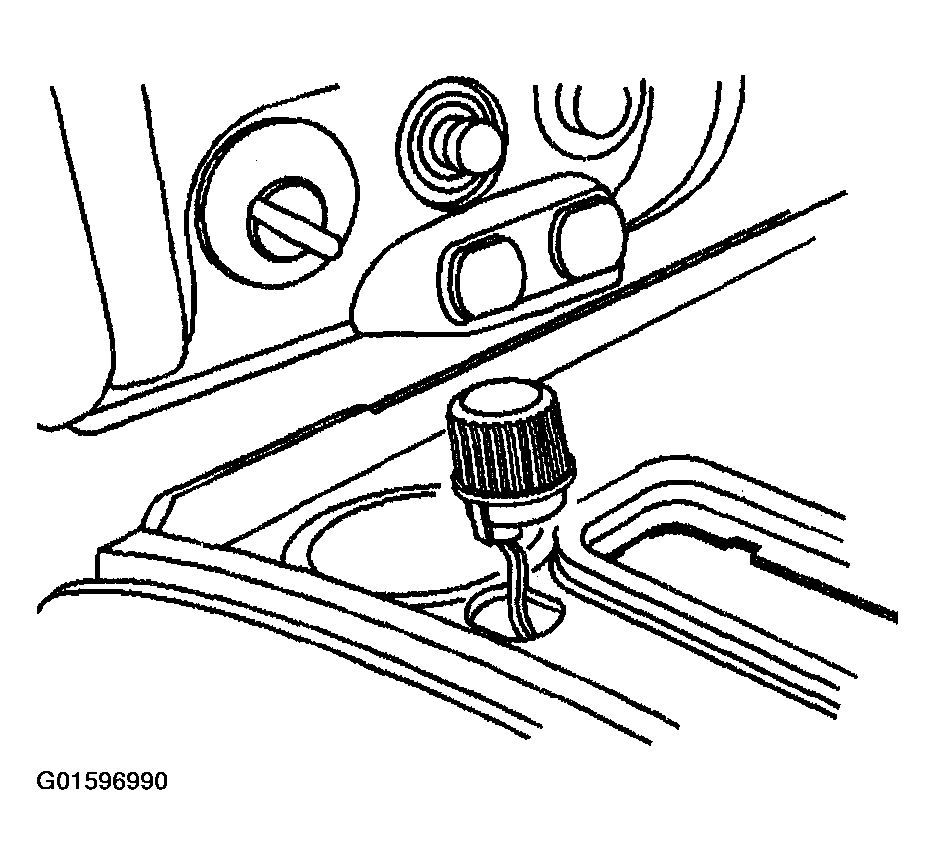

    Fig 1: Removing Front Auxiliary Blower Motor Switch From Console
    G01596990Courtesy of GENERAL MOTORS CORP.
