Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the IP carrier. Refer to INSTRUMENT PANEL (I/P) CARRIER REPLACEMENT  in Instrument Panel, Gages, and Console.
  2. Disconnect the electrical connector from the defroster actuator.

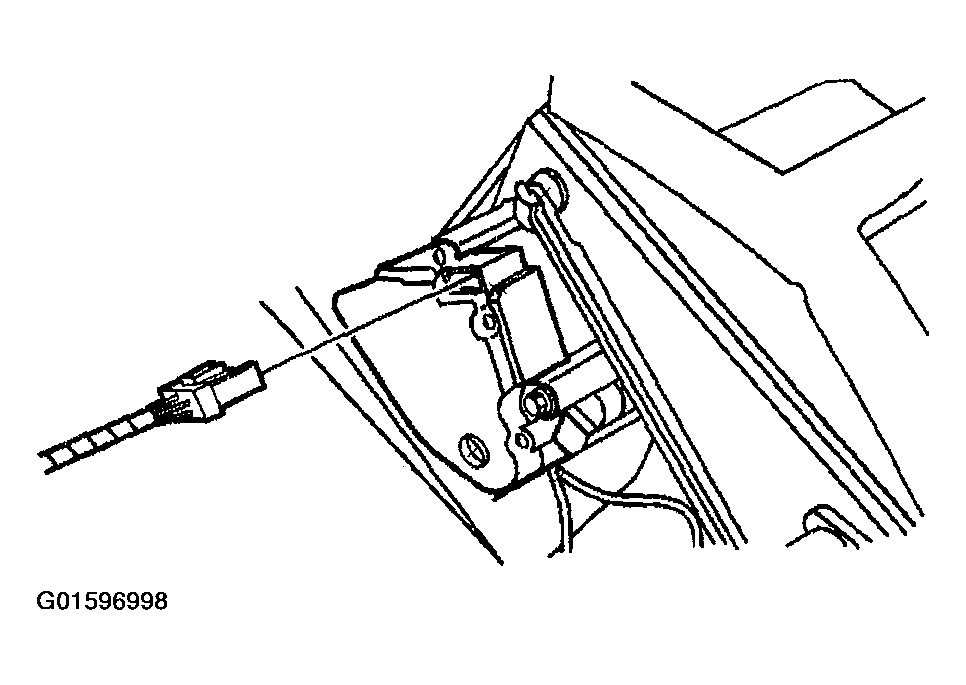

    Fig 1: Disconnecting Defroster Actuator Electrical Connector
    G01596998Courtesy of GENERAL MOTORS CORP.
  3. Remove the screws from the defroster actuator.
  4. Remove the defroster actuator.
