Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the air temperature sensor-lower right (2).

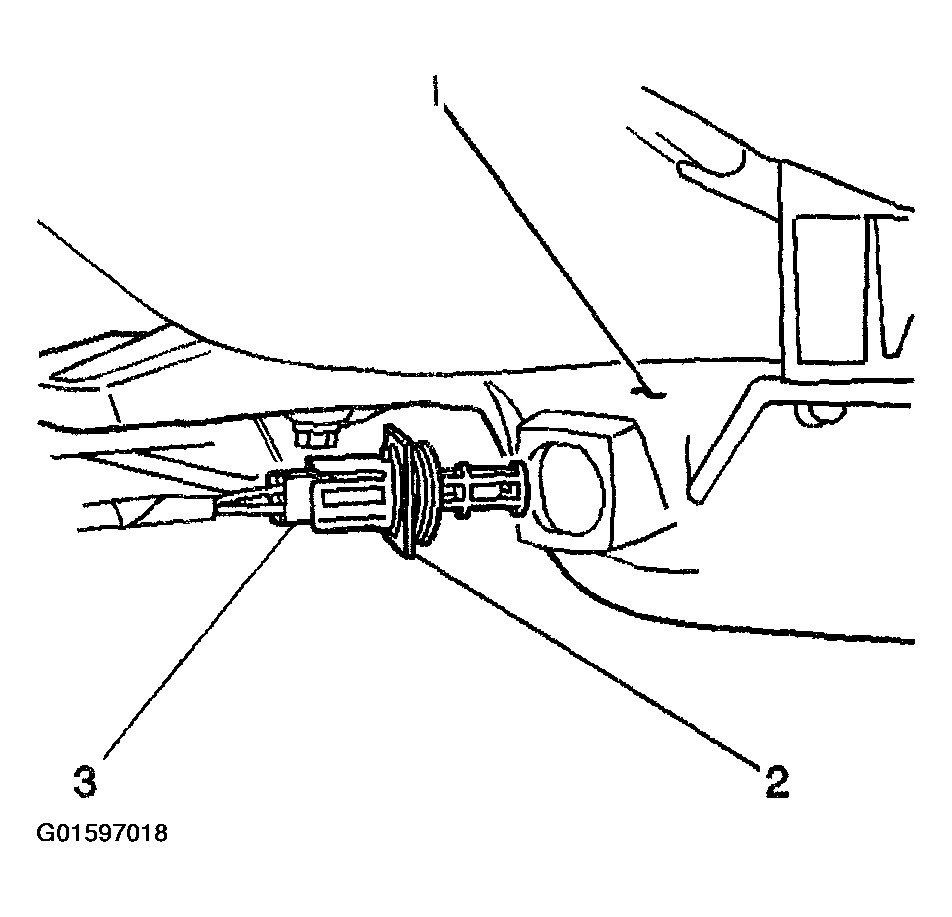

    Fig 1: Installing Air Temperature Sensor-Lower Right
    G01597018Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector (3) to the air temperature sensor-lower right (2).
  3. Install the IP lower closeout panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) LOWER (GMC/CHEVROLET)  in Instrument Panel, Gages and Console.
  4. Install the passenger side closeout panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT  in Instrument Panel, Gages and Console.
