Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the radio. Refer to RADIO REPLACEMENT  in Entertainment.
  2. Disconnect the electrical connector (2) from the air temperature sensor-upper right (1).
  3. Remove the air temperature sensor-upper right (1) by turning the sensor clockwise and pulling out.

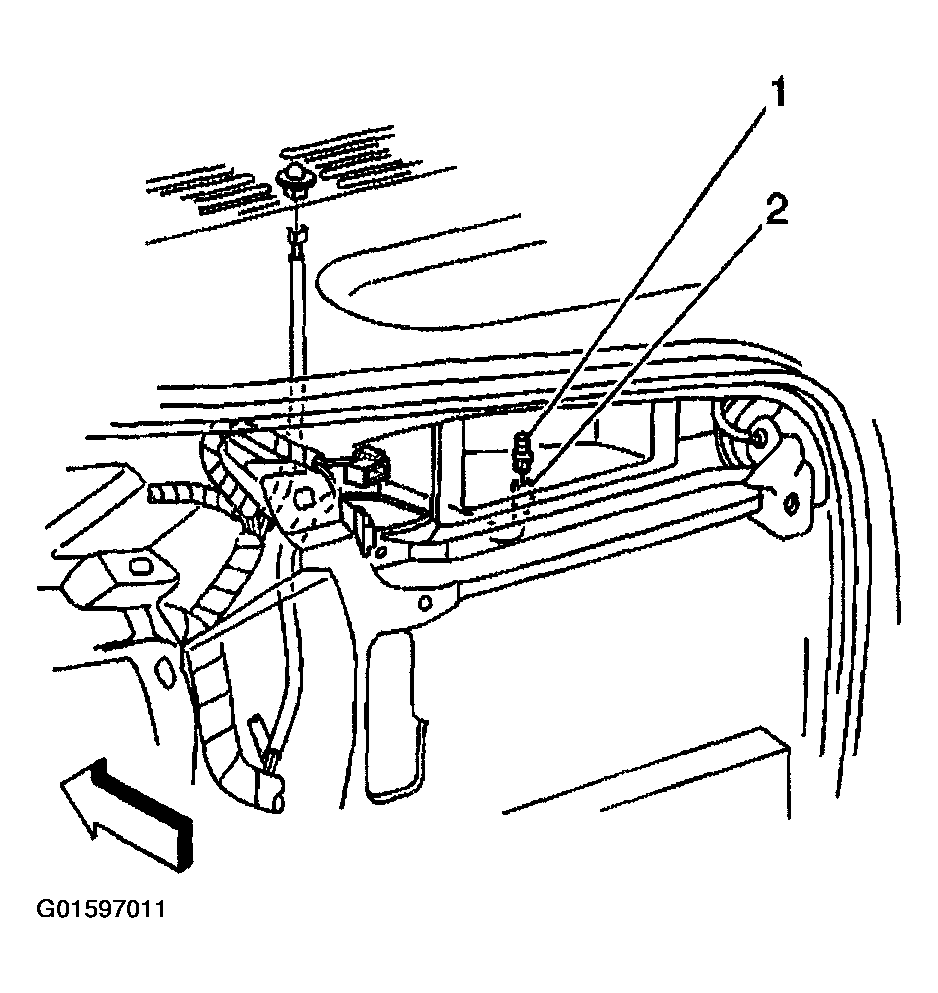

    Fig 1: Removing Air Temperature Sensor-Upper Right
    G01597011Courtesy of GENERAL MOTORS CORP.
