Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Install the air temperature sensor-upper right (1).
Connect the electrical connector (2) to the air temperature sensor-upper right (1).
Install the radio. Refer to RADIO REPLACEMENT in Entertainment.

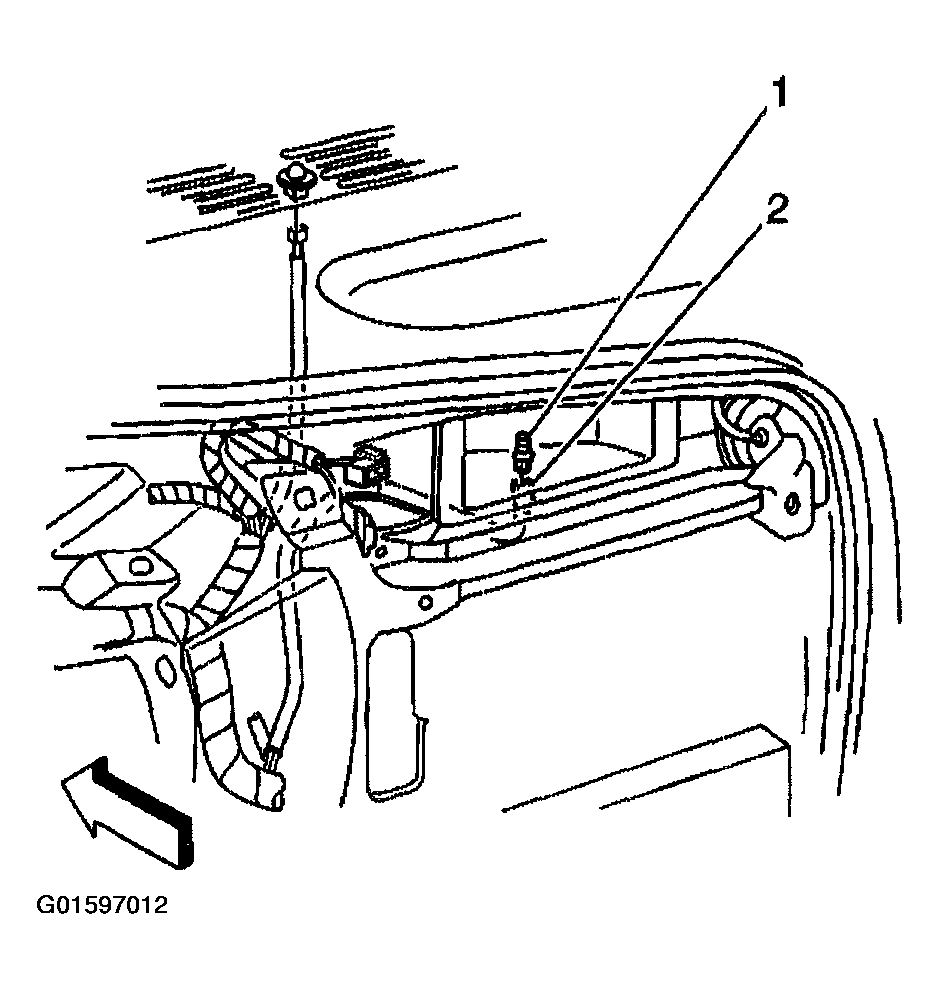

Fig 1: Installing Air Temperature Sensor-Upper Right
Courtesy of GENERAL MOTORS CORP.
