Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the IP assembly. Refer to INSTRUMENT PANEL (I/P) ASSEMBLY REPLACEMENT  in Instrument Panel, Gages and Console.
  2. Disconnect the electrical connector from the air temperature sensor-lower left (2).
  3. Remove the air temperature sensor-lower left.

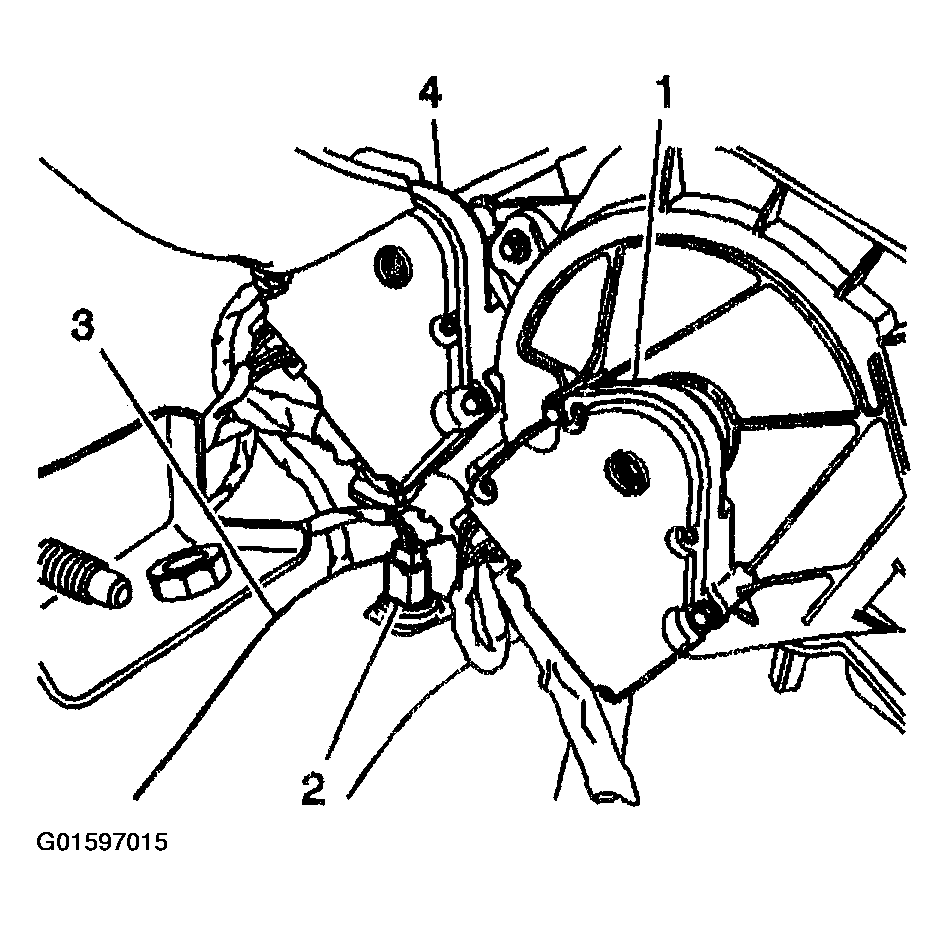

    Fig 1: Removing Air Temperature Sensor-Lower Left
    G01597015Courtesy of GENERAL MOTORS CORP.
