Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the air temperature sensor-lower left (2).

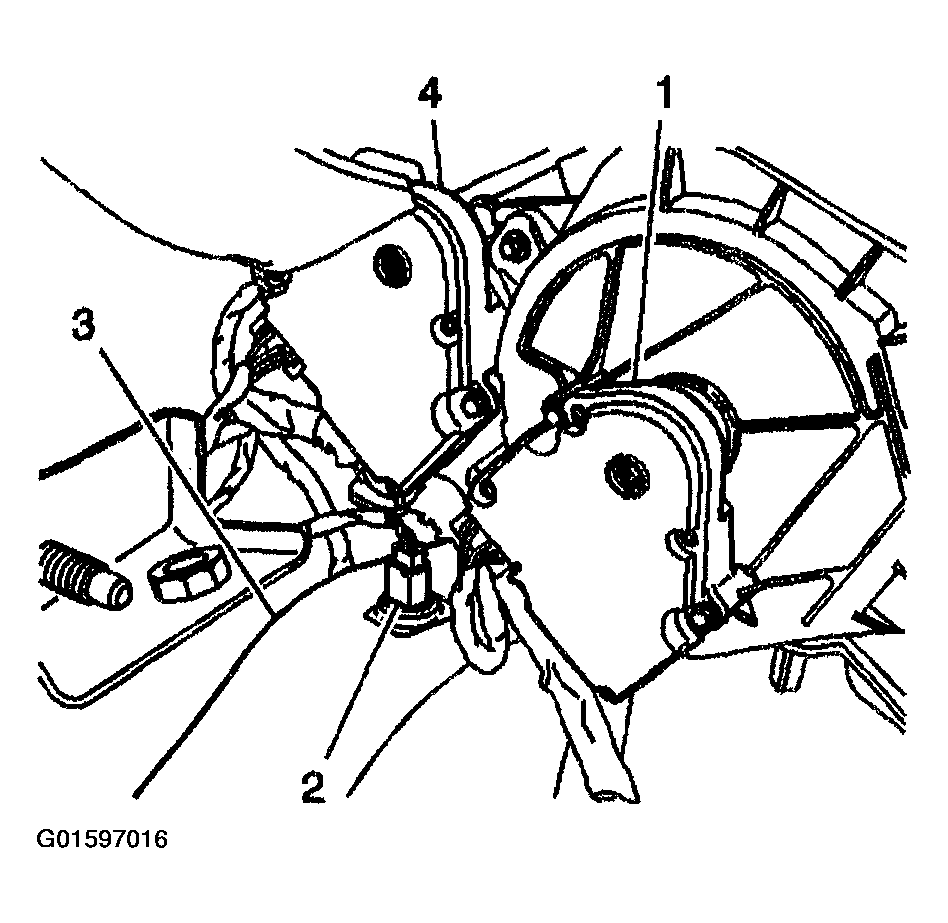

    Fig 1: Installing Air Temperature Sensor-Lower Left
    G01597016Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector to the air temperature sensor-lower left.
  3. Install the IP assembly. Refer to INSTRUMENT PANEL (I/P) ASSEMBLY REPLACEMENT  in Instrument Panel, Gages and Console.
