Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the air temperature actuator-right.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Tighten the air temperature actuator-right retaining screws.
  3. Tighten
  4. Tighten the screws to 1.9 N.m (17 lb ft).

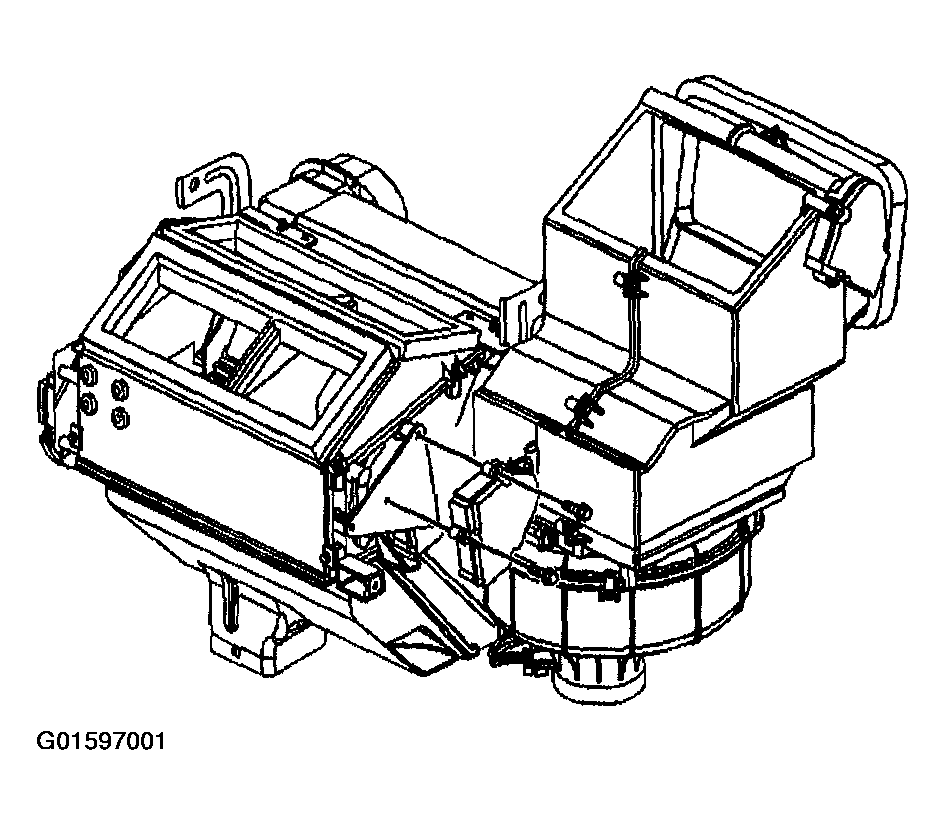

    Fig 1: Installing Air Temperature Actuator-Right
    G01597001Courtesy of GENERAL MOTORS CORP.
  5. Install the air temperature actuator-right electrical connector.
  6. Install the I/P carrier. Refer to INSTRUMENT PANEL (I/P) CARRIER REPLACEMENT  in Instrument Panel, Gages, and Console.
  7. Recalibrate the air temperature actuator on vehicles equipped with automatic climate control (C68). Refer to Re-Calibrating Actuators (Primary)   or RE-CALIBRATING ACTUATORS (AUXILIARY HVAC)   .
