Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the I/P carrier. Refer to INSTRUMENT PANEL (I/P) CARRIER REPLACEMENT  in Instrument Panel, Gages and Console.
  2. Remove the air temperature actuator-left (1) retaining screws.
  3. Disconnect the air temperature actuator-left electrical connector.
  4. Remove the air temperature actuator-left.

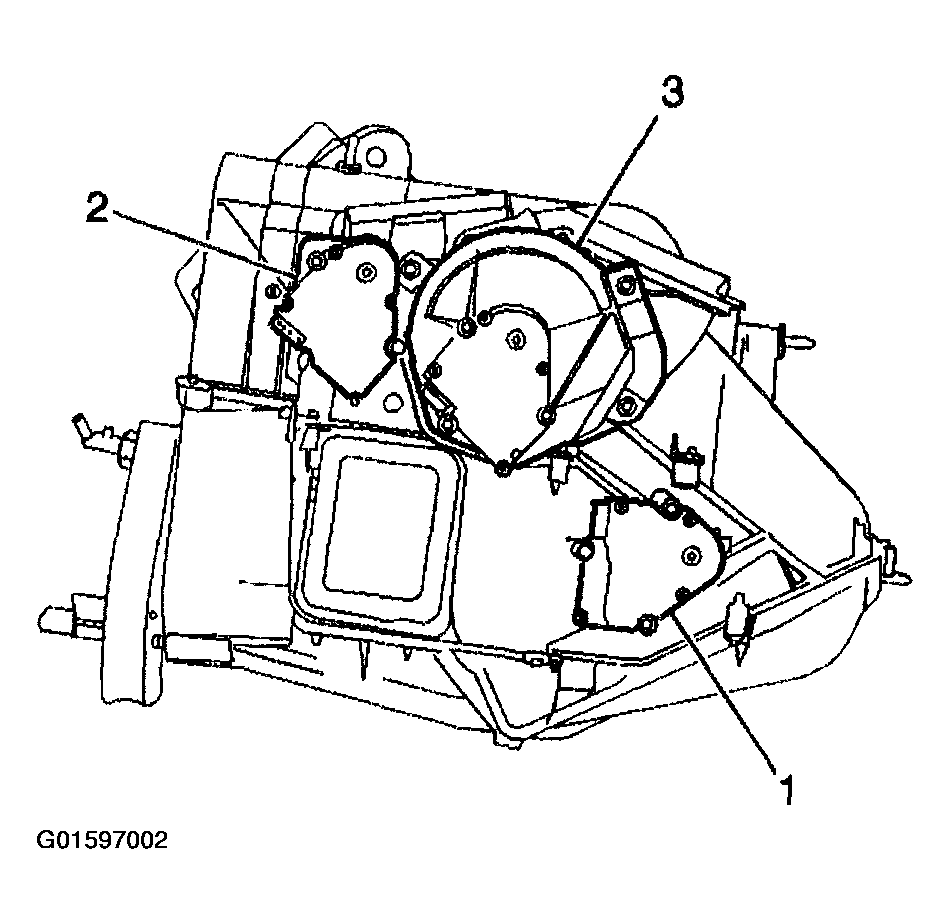

    Fig 1: Removing Air Temperature Actuator-Left
    G01597002Courtesy of GENERAL MOTORS CORP.
