Too Cold In Vehicle - Temperature - Scan Tool Display

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

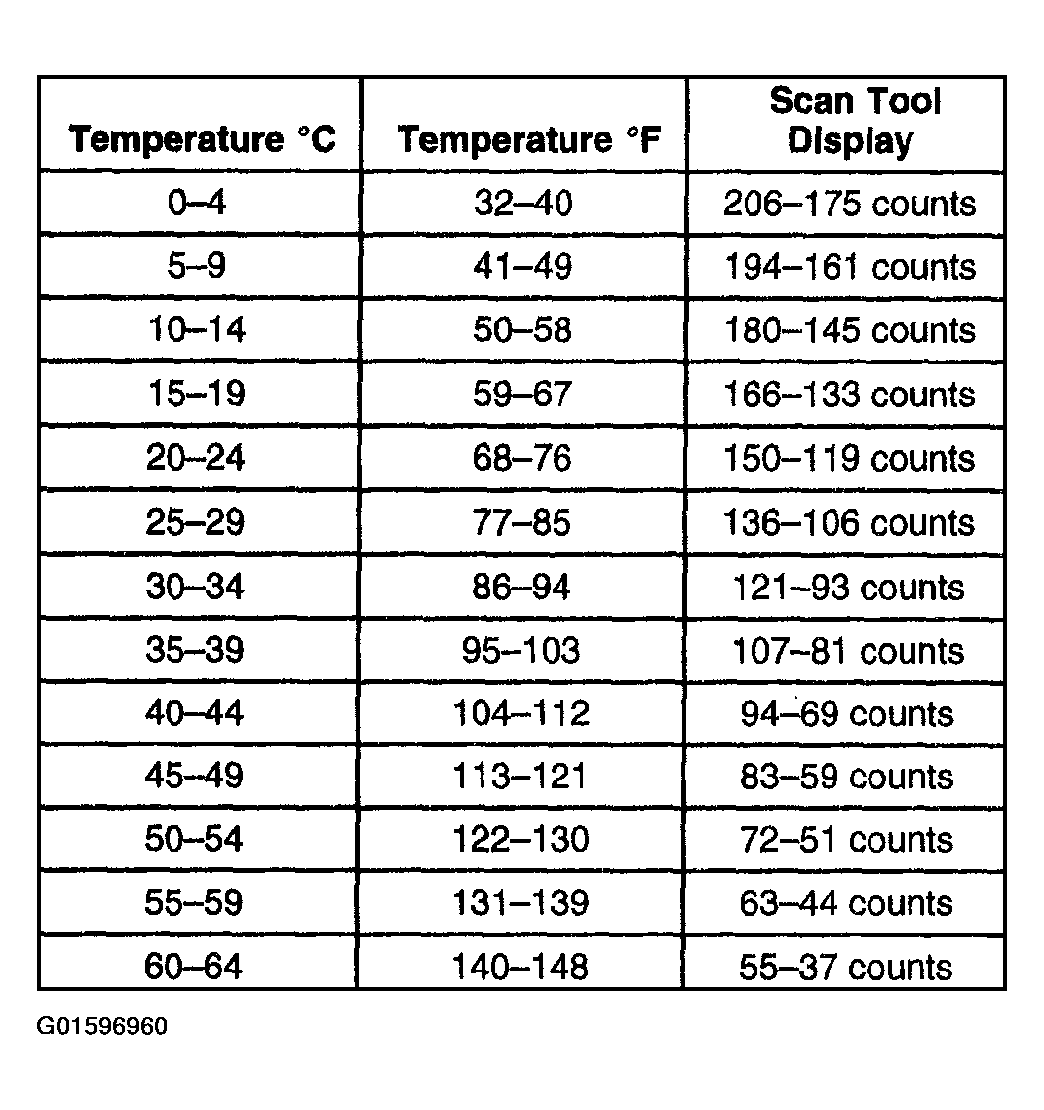

Fig 1: Too Cold In Vehicle - Temperature - Scan Tool Display
G01596960Courtesy of GENERAL MOTORS CORP.
