DTC B2815: Steering Wheel Controls Illegal Resistance Value: B2815

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

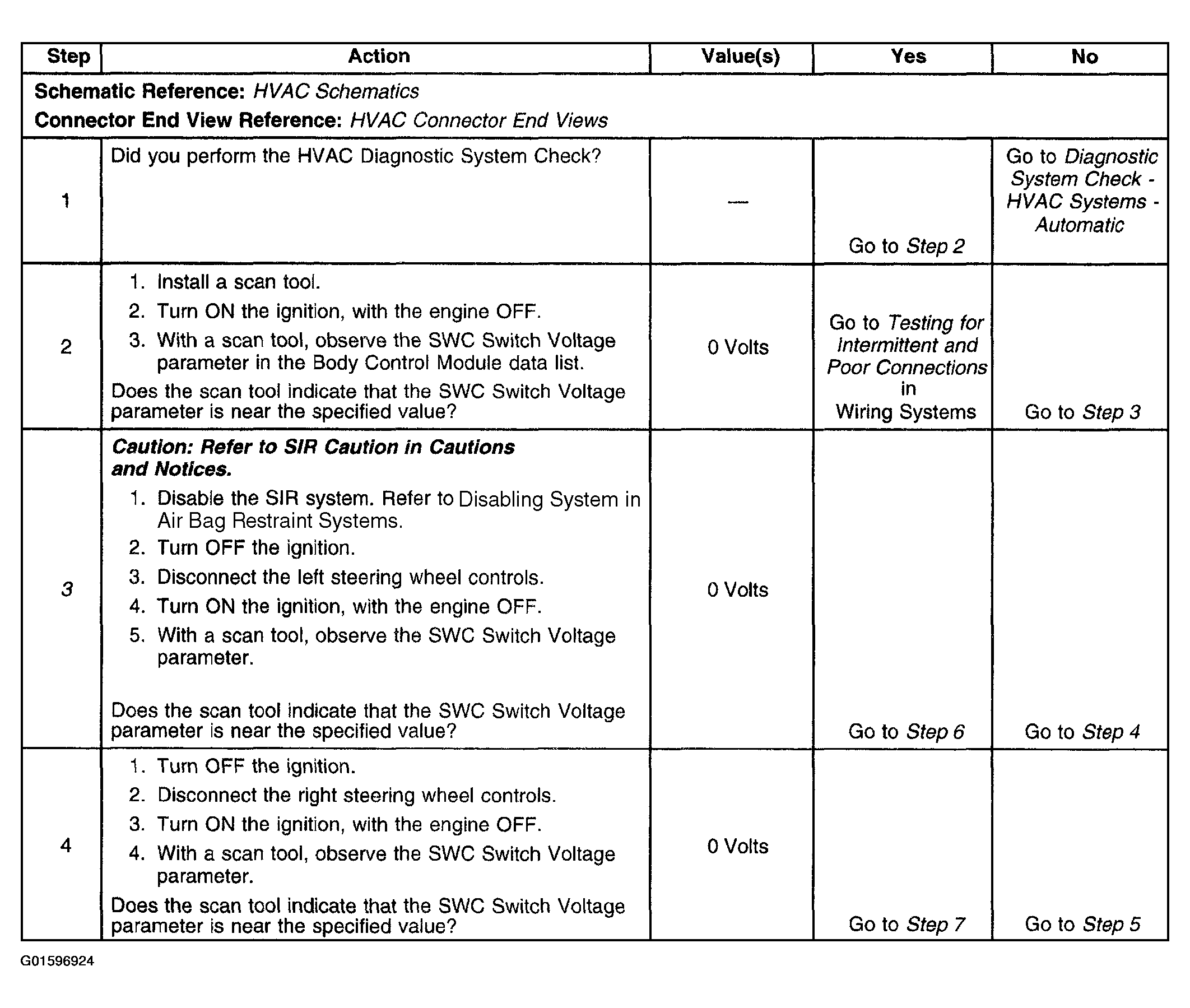

Fig 1: Diagnostic System Check - DTC B2815 (Steps 1 - 4)
G01596924Courtesy of GENERAL MOTORS CORP.

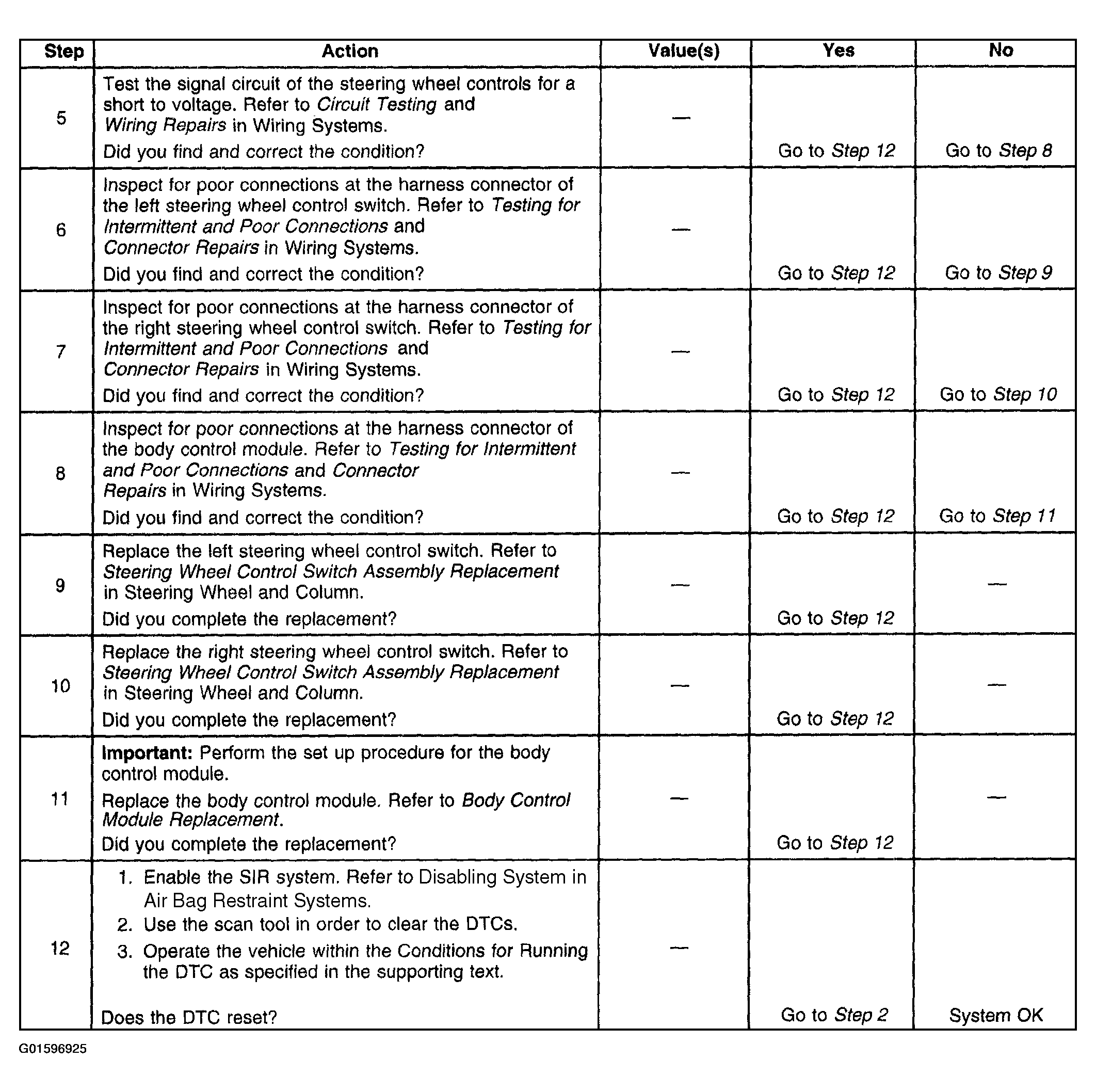

Fig 2: Diagnostic System Check - DTC B2815 (Steps 5 - 12)
G01596925Courtesy of GENERAL MOTORS CORP.
