Air Temperature Sensor - Lower Right

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

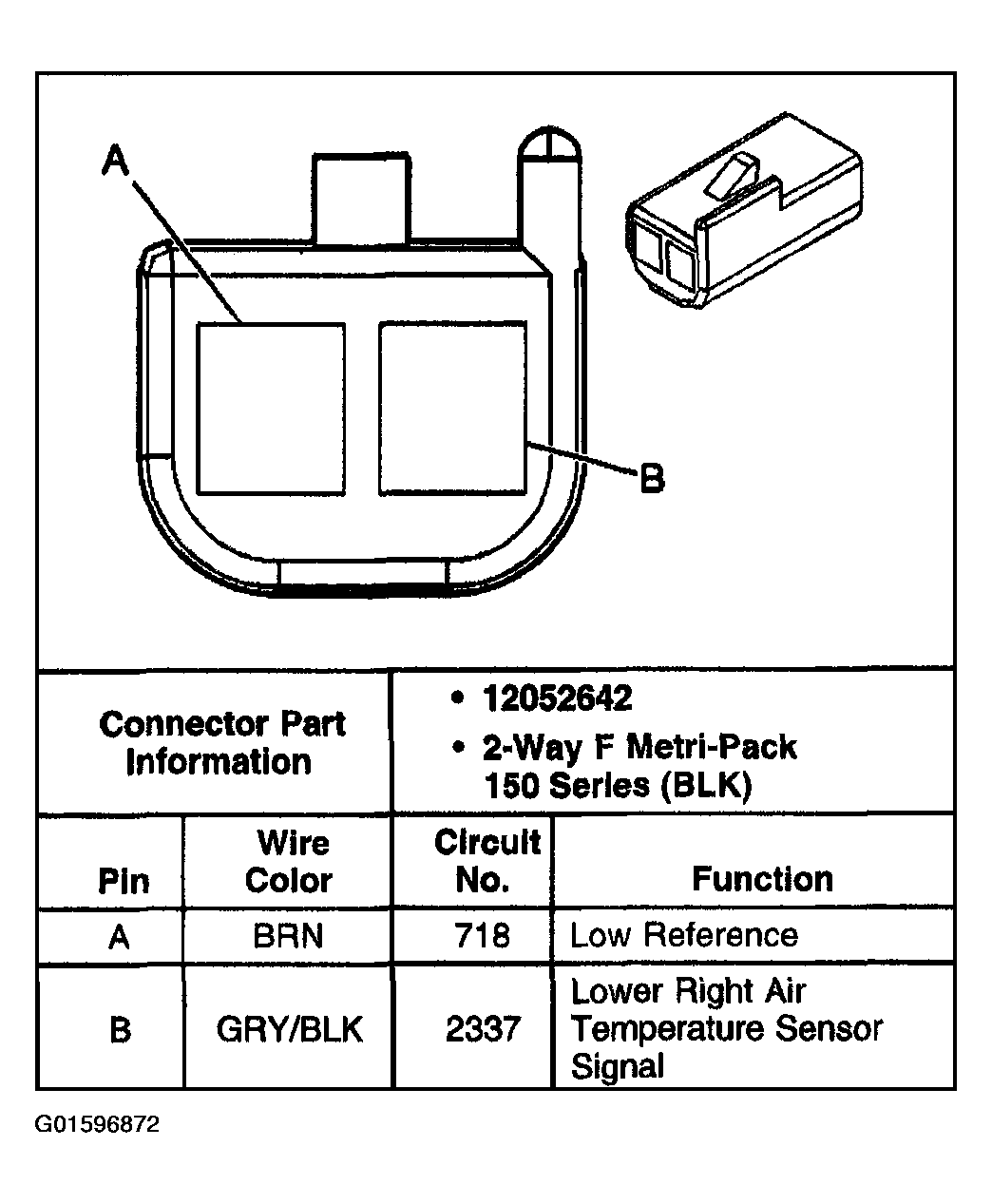

Fig 1: Identifying Air Temperature Sensor - Lower Right Connector Terminals
G01596872Courtesy of GENERAL MOTORS CORP.
