HVAC Schematics (Air Delivery/Temperature Actuators)

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

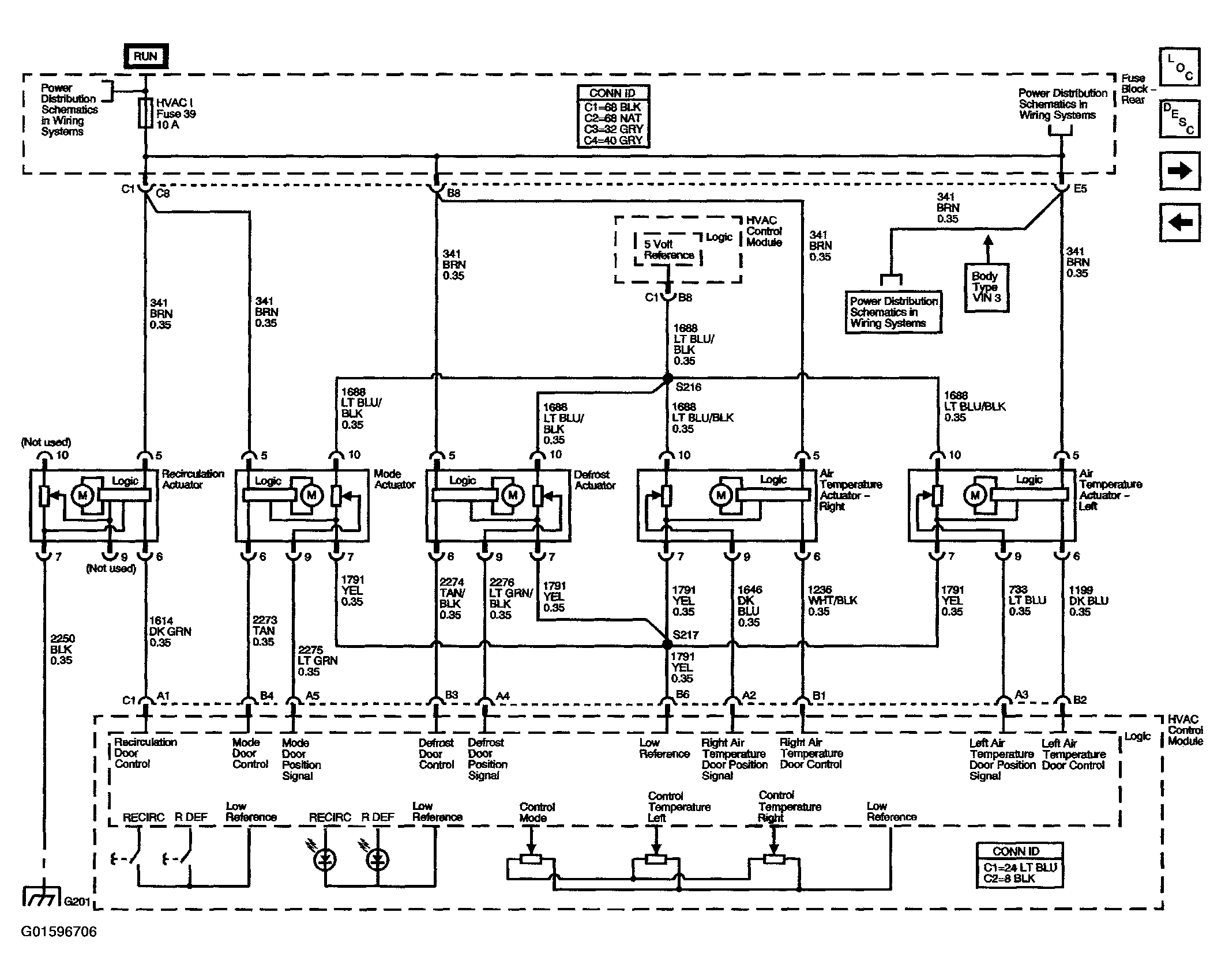

Fig 1: HVAC Schematics (Air Delivery/Temperature Actuators)
G01596706Courtesy of GENERAL MOTORS CORP.
