Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the HVAC module assembly. Refer to HVAC MODULE ASSEMBLY REPLACEMENT in Heating, Ventilation and Air Conditioning.
  2. Remove the air inlet assembly screws.
  3. Remove the air inlet assembly.
  4. Remove the recirculation actuator screws.
  5. Remove the electrical connector from the recirculation actuator.
  6. Remove the recirculation actuator.

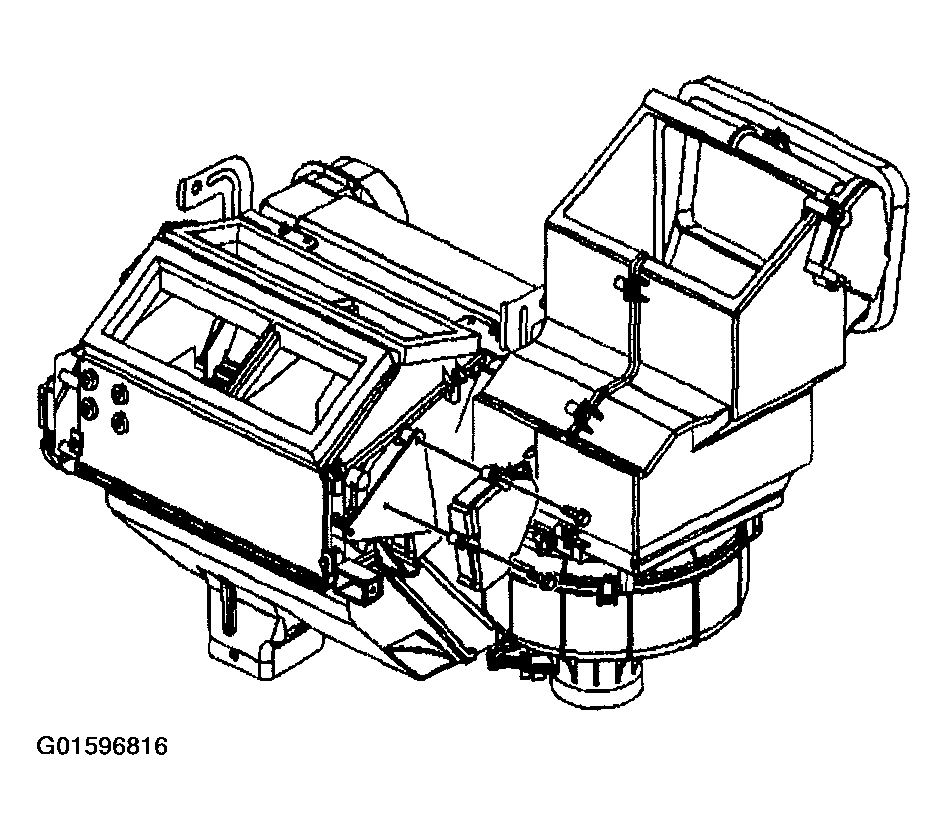

    Fig 1: Removing Recirculation Actuator
    G01596816Courtesy of GENERAL MOTORS CORP.
