Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the floor console. Refer to CONSOLE REPLACEMENT in Instrument Panel, Gages, and Console.
  2. Rotate the console.
  3. Remove the screw from the air outlet duct.
  4. Remove the air outlet duct from the floor console.
  5. Remove the rear mode actuator retaining screws.
    Fig 1: Removing Floor Console
    G01596826Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the electrical connector.
  7. Remove the rear mode actuator.

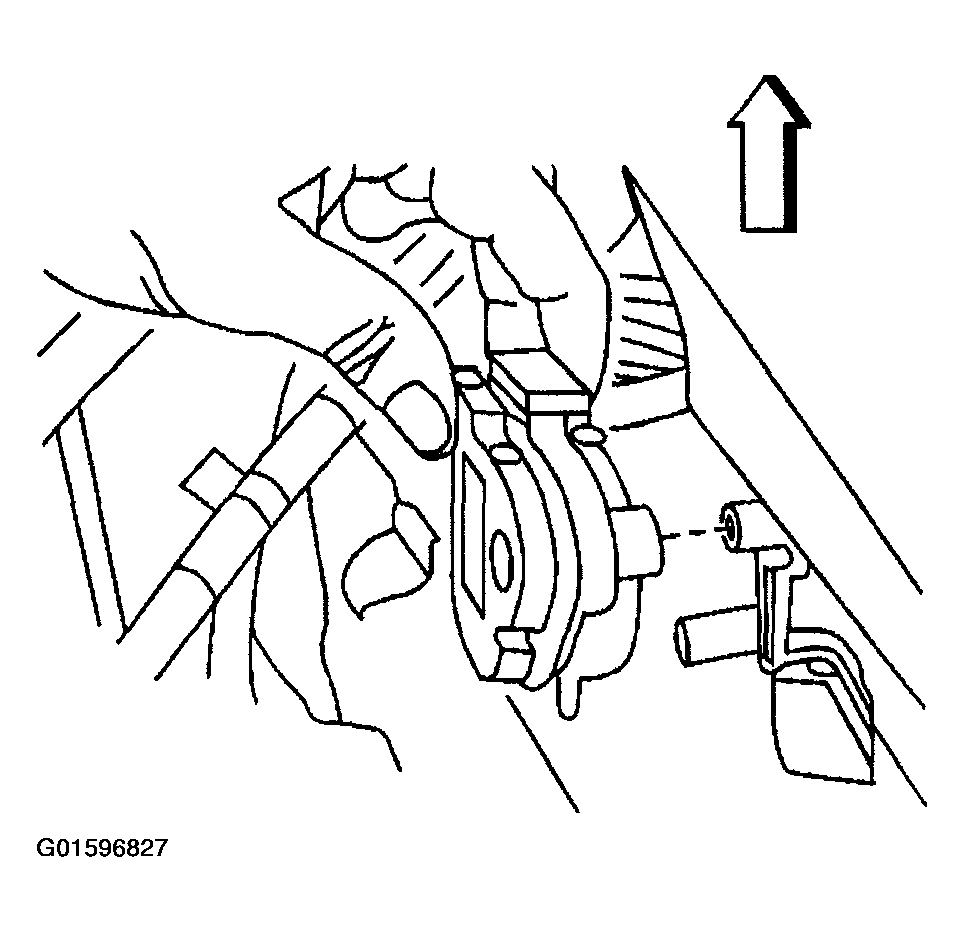

    Fig 2: Removing Rear Mode Actuator
    G01596827Courtesy of GENERAL MOTORS CORP.
