Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the mode actuator.
  2. Connect the electrical connector.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the screws to the mode actuator.

    Tighten

    Tighten the screws to 1.9 N.m (17 lb in).

  4. Install the air outlet duct to the console.
  5. Install the screw to the air outlet duct.

    Tighten

    Tighten the screw to 1.9 N.m (17 lb in).

  6. Install the console. Refer to CONSOLE REPLACEMENT  in Instrument Panel, Gages, and Console.

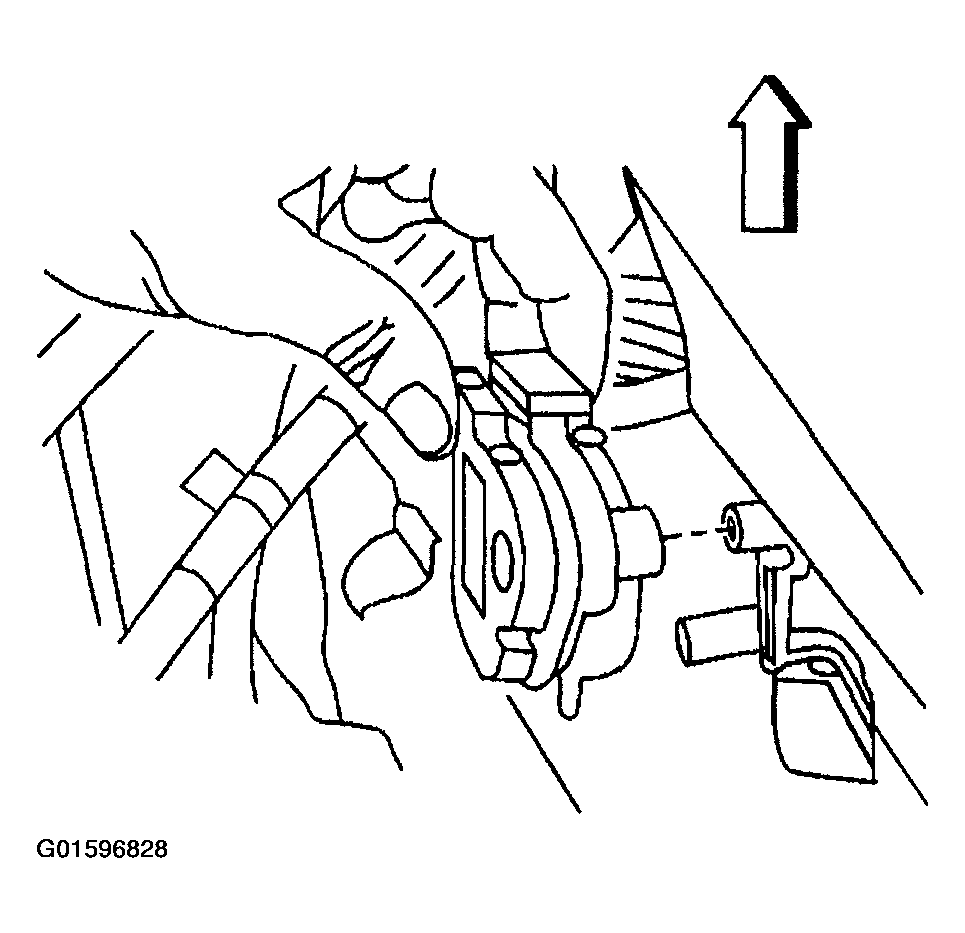

    Fig 1: Installing Rear Mode Actuator
    G01596828Courtesy of GENERAL MOTORS CORP.
