Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the IP accessory trim plate. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY (CHEVROLET) or TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY (OLDSMOBILE) or BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER (CHEVROLET) or BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER (GMC/OLDSMOBILE) in Instrument Panel, Gages and Console.
  2. Remove the control module retaining screws.
  3. Depress the HVAC control module retaining tabs (3) and remove the HVAC control module (2) from the instrument panel (4).
  4. Disconnect the electrical connectors (1) from the HVAC control module (2).

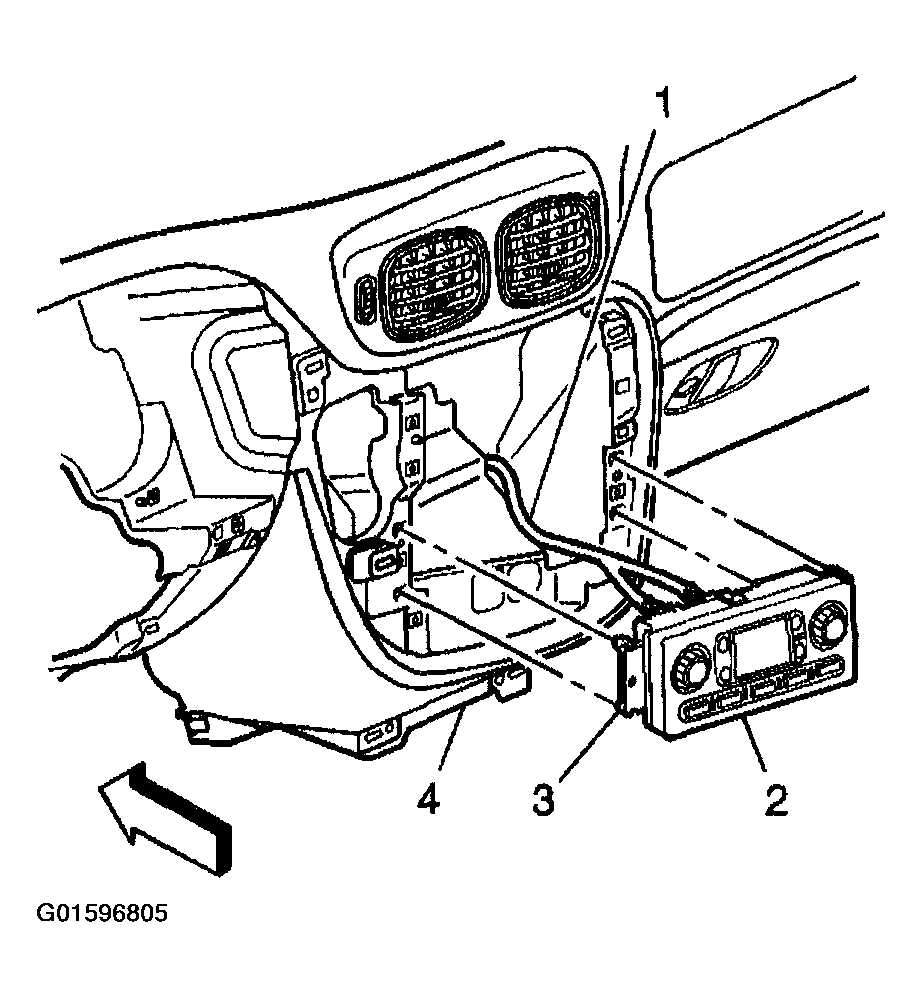

    Fig 1: Disconnecting Electrical Connectors From HVAC Control Module
    G01596805Courtesy of GENERAL MOTORS CORP.
