Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Using a flat bladed tool, carefully pry out on the top of the HVAC control- auxiliary.
Remove the HVAC control-auxiliary from the center console/seat.

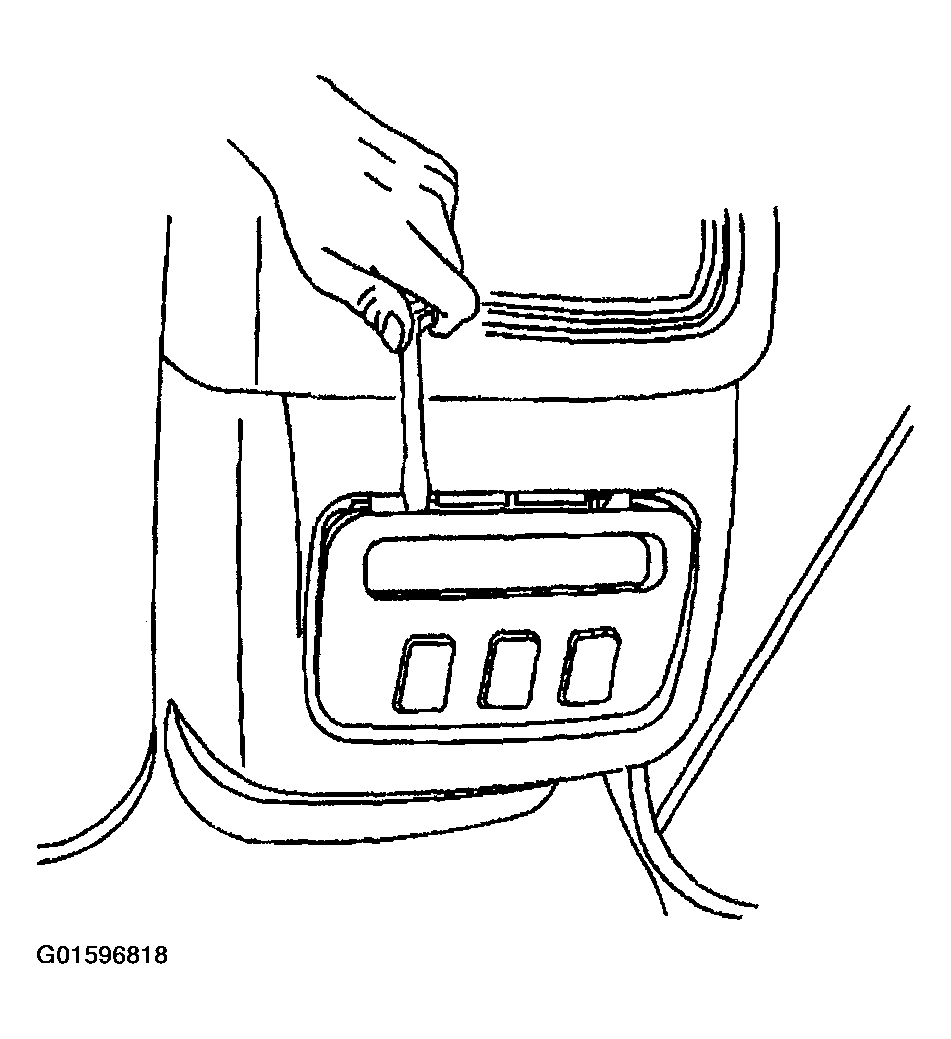

Fig 1: Removing HVAC Control-Auxiliary
Courtesy of GENERAL MOTORS CORP.
Disconnect the electrical connector.
Remove the rear HVAC control-auxiliary from the vehicle.

Fig 2: Disconnecting Rear HVAC Control-Auxiliary Electrical Connector
Courtesy of GENERAL MOTORS CORP.
