Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the rear HVAC control-auxiliary electrical connector.
    Fig 1: Connecting Rear HVAC Control-Auxiliary Electrical Connector
    G01596820Courtesy of GENERAL MOTORS CORP.
  2. Install the HVAC control-auxiliary in the console bottom first.
  3. Push in at the top of the HVAC control-auxiliary in order to engage the HVAC control-auxiliary in the console/seat.

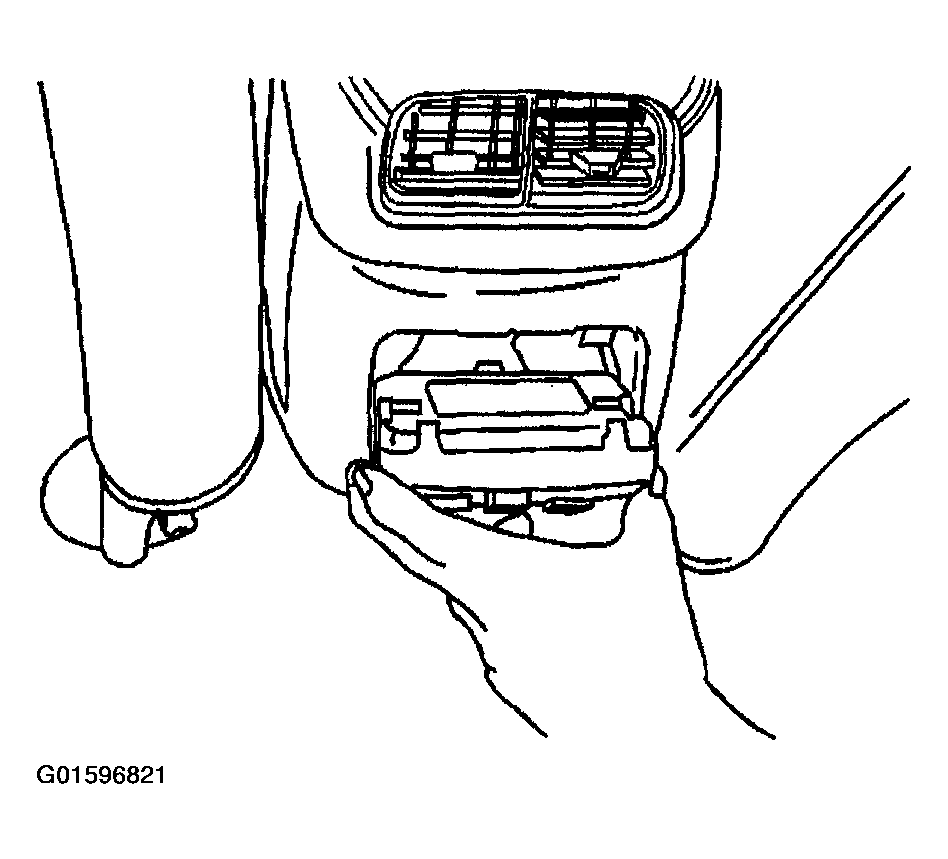

    Fig 2: Installing HVAC Control-Auxiliary In Console Bottom First
    G01596821Courtesy of GENERAL MOTORS CORP.
