Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the IP carrier. Refer to INSTRUMENT PANEL (I/P) CARRIER REPLACEMENT in Instrument Panel, Gages and Console.
  2. Disconnect the electrical connector from the defroster actuator.
  3. Remove the screws from the defroster actuator.
  4. Remove the defroster actuator.

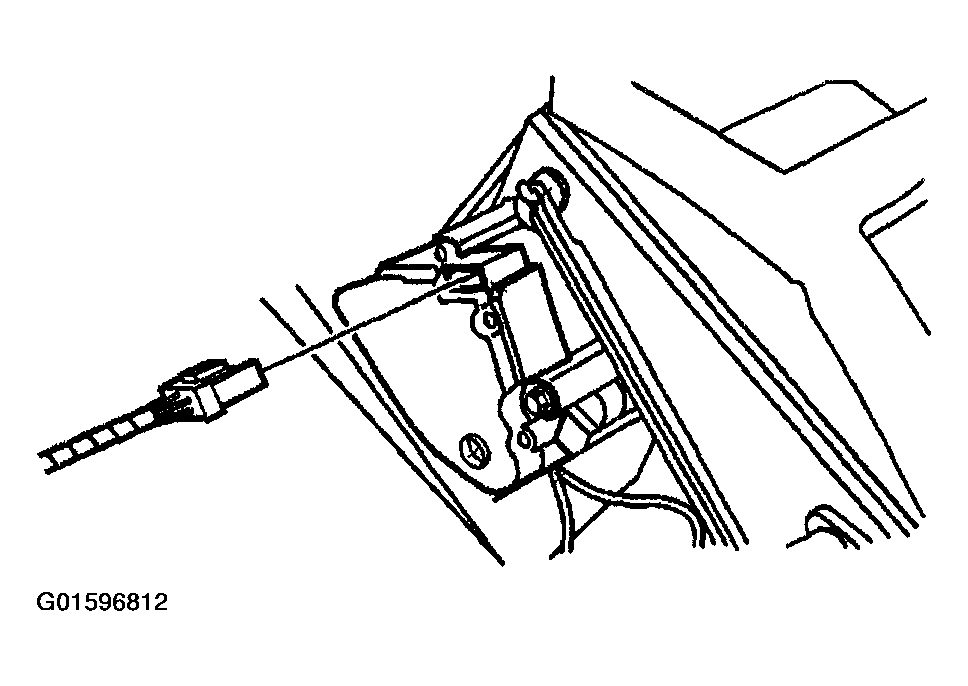

    Fig 1: Disconnecting Electrical Connector From Defroster Actuator
    G01596812Courtesy of GENERAL MOTORS CORP.
