Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the right side air temperature actuator.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the right side air temperature actuator retaining screws.

    Tighten

    Tighten the screws to 1.9 N.m (17 lb in).

  3. Connect the right side air temperature actuator electrical connector.
  4. Install the I/P carrier. Refer to INSTRUMENT PANEL (I/P) CARRIER REPLACEMENT in Instrument Panel, Gages and Console.
  5. Recalibrate the air temperature actuator on vehicles equipped with automatic climate control (C68). Refer to Re-Calibrating Actuators (Primary)  or Re-Calibrating Actuators (Auxiliary HVAC) .

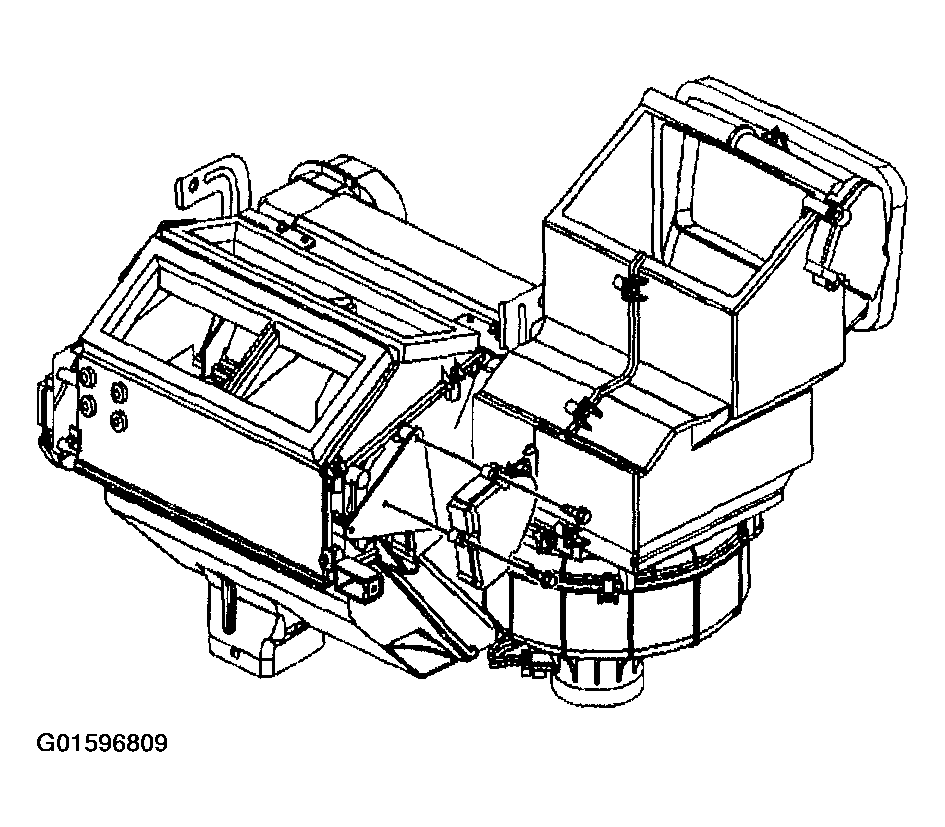

    Fig 1: Installing Right Side Air Temperature Actuator
    G01596809Courtesy of GENERAL MOTORS CORP.
