Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the I/P carrier. Refer to INSTRUMENT PANEL (I/P) CARRIER REPLACEMENT in Instrument Panel, Gages and Console.
  2. Remove the left side air temperature actuator (1) retaining screws.
  3. Disconnect the left side air temperature actuator electrical connector.
  4. Remove the left side air temperature actuator.

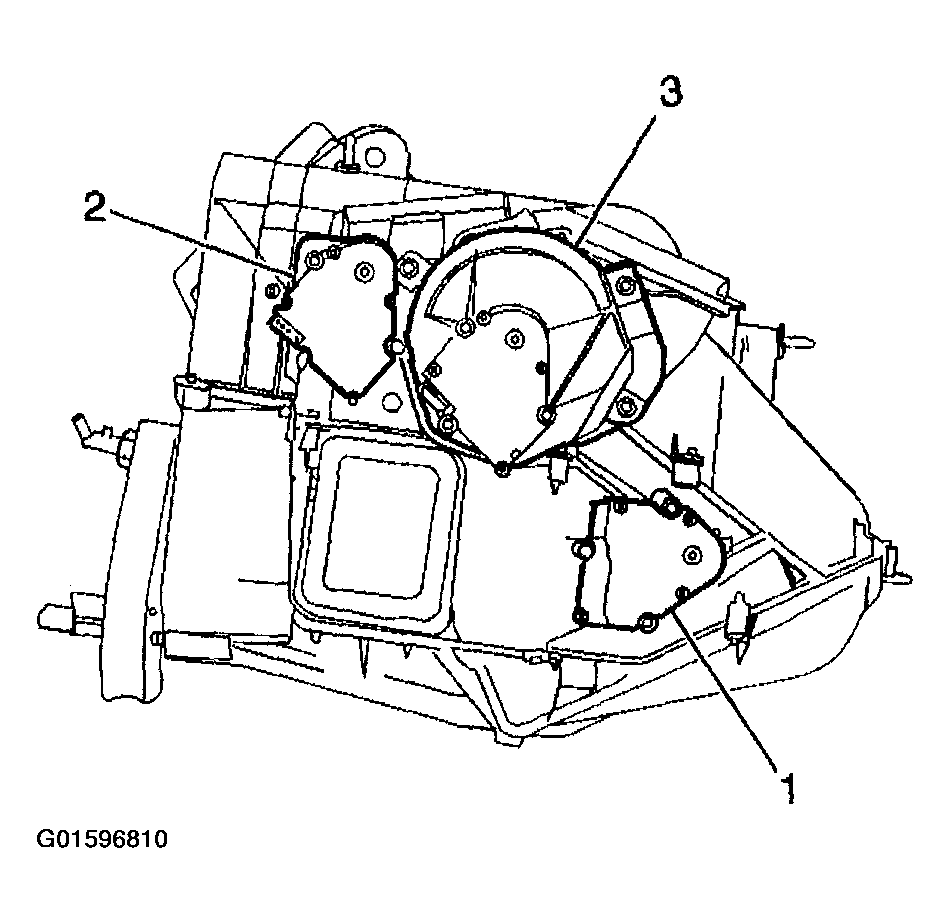

    Fig 1: Removing Left Side Air Temperature Actuator
    G01596810Courtesy of GENERAL MOTORS CORP.
