Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right rear quarter trim panel. Refer to INTERIOR TRIM or INTERIOR TRIM in Interior Trim.
  2. Disconnect the electrical connector from the air temperature actuator.
  3. Remove the retaining screws from the air temperature actuator.
  4. Remove the air temperature actuator (1) from the rear HVAC module.

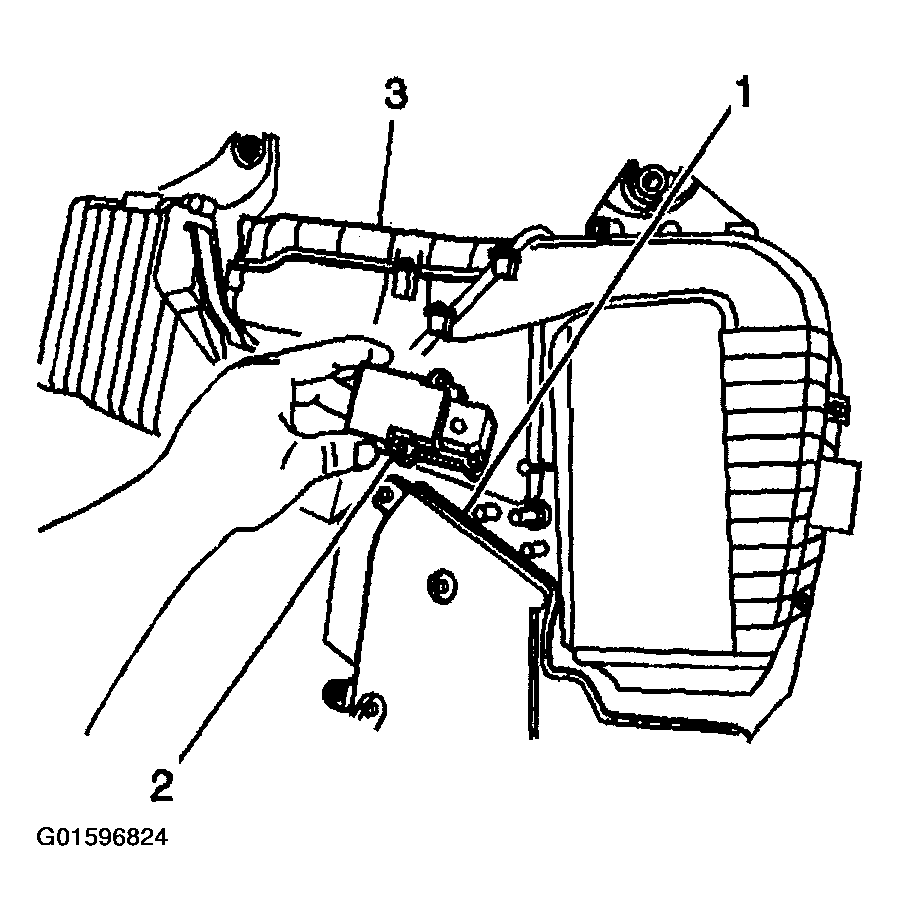

    Fig 1: Removing Air Temperature Actuator From Rear HVAC Module
    G01596824Courtesy of GENERAL MOTORS CORP.
