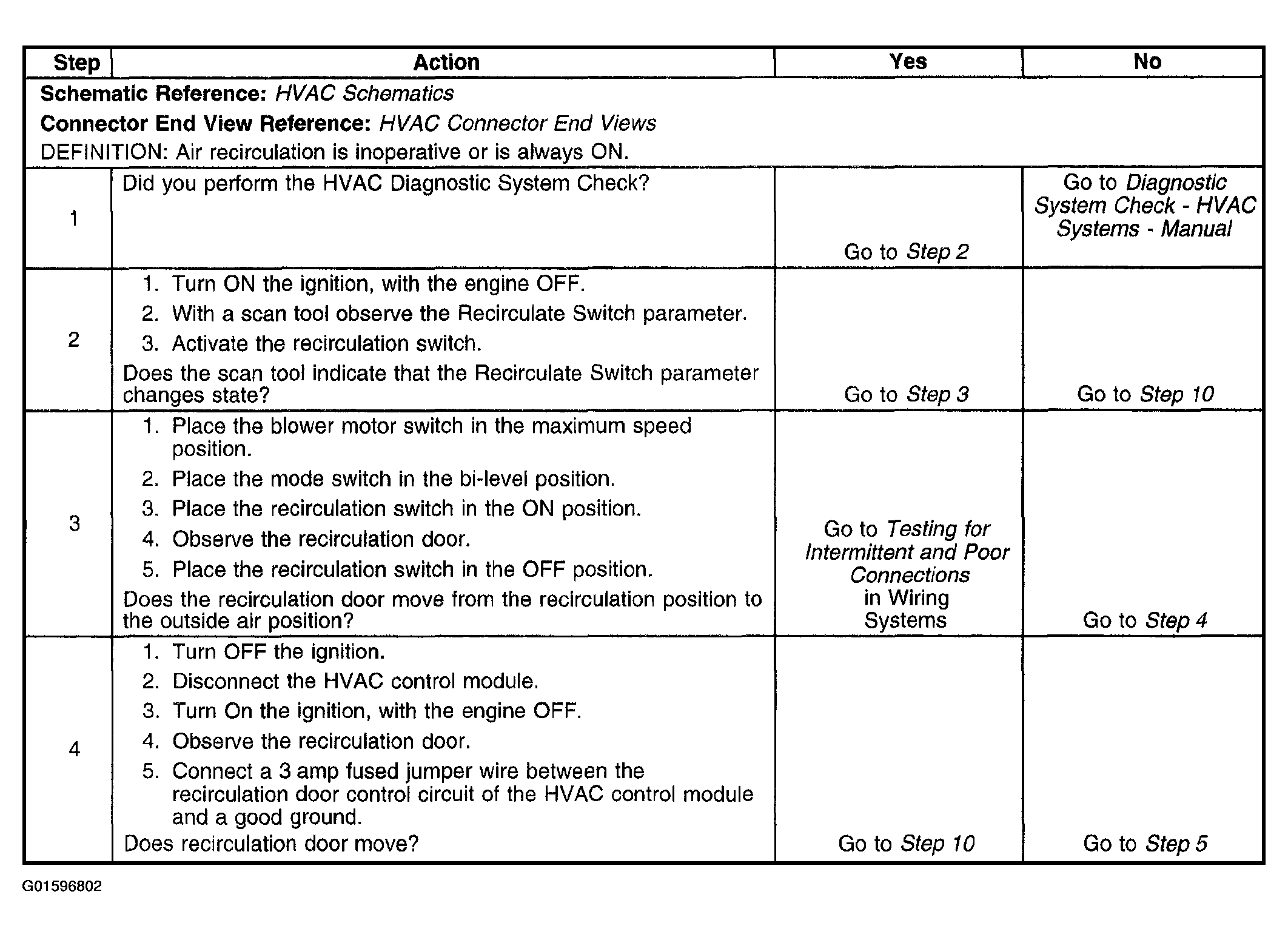

Fig 1: Diagnostic System Check - Air Recirculation Malfunction (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

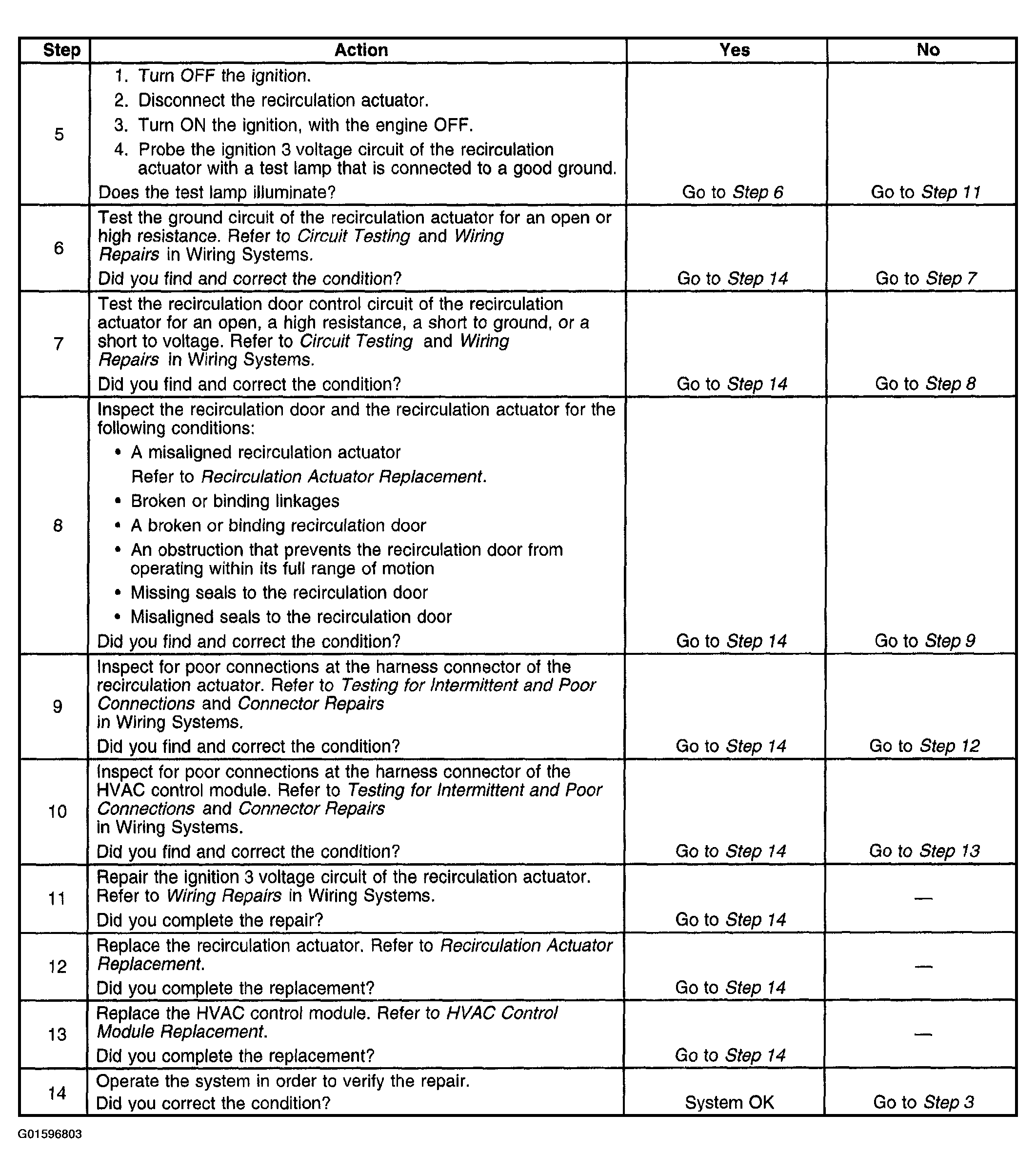

Fig 2: Diagnostic System Check - Air Recirculation Malfunction (2 Of 2)
