Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the evaporator core-auxiliary. Refer to EVAPORATOR CORE REPLACEMENT - AUXILIARY .
  2. Remove the foam insulators (3) from the evaporator core-auxiliary lines.
  3. Remove the foam insulators from the thermal expansion valve-auxiliary (4).
  4. Using a back up wrench loosen the flare nuts from the thermal expansion valve-auxiliary.
  5. Remove the auxiliary thermal expansion valve sensing bulb and retaining clip from the evaporator core-auxiliary lines.
  6. Remove the thermal expansion valve-auxiliary from the evaporator core- auxiliary.

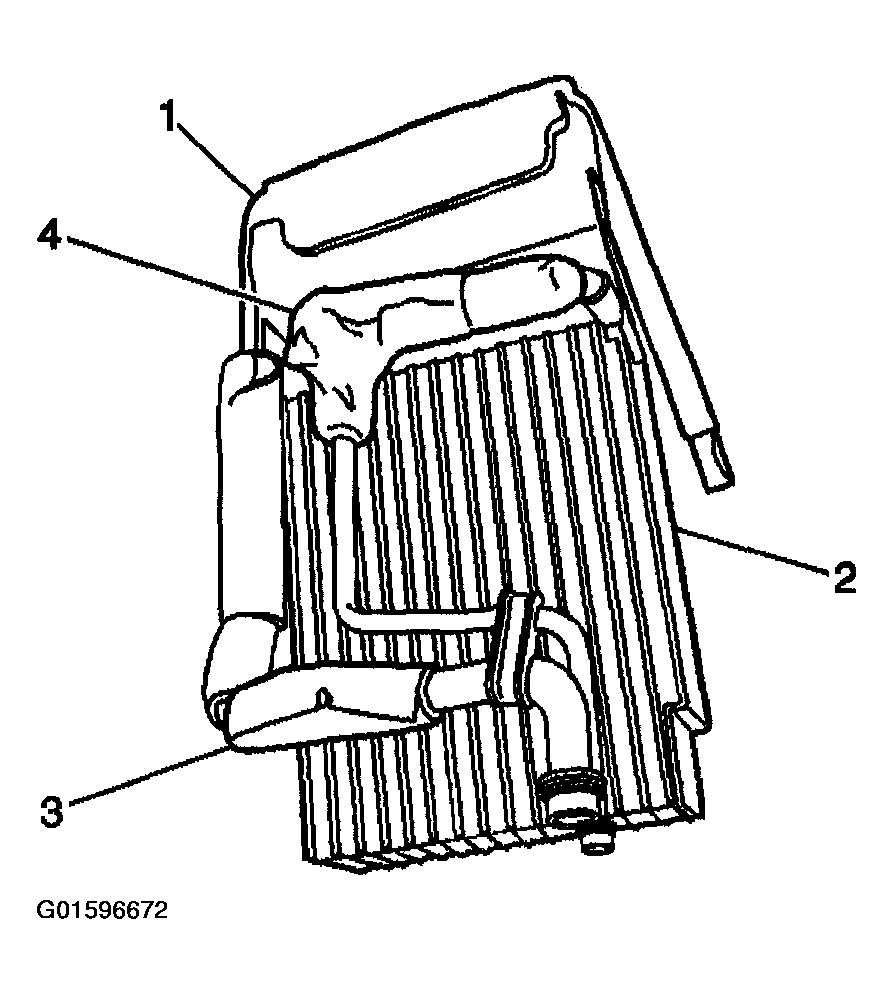

    Fig 1: Removing Foam Insulators From Thermal Expansion Valve-Auxiliary
    G01596672Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Cap or tape the open A/C refrigerant lines immediately.
  7. Remove and discard the O-ring seals from the evaporator core-auxiliary. Cap or tape the lines to prevent contamination of the evaporator core-auxiliary.
