Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cap or tape from the evaporator core-auxiliary lines.
  2. Install the new O-ring. Refer to O-RING REPLACEMENT .
  3. Install the thermal expansion valve-auxiliary onto the evaporator core- auxiliary lines.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Using a back up wrench, install the flare nuts from the evaporator core- auxiliary lines to the thermal expansion valve-auxiliary.

    Tighten

    Tighten the nuts to 5 N.m (44 lb in).

  5. Install the foam insulators to the evaporator core-auxiliary lines (3).
  6. Install the foam insulators to the thermal expansion valve-auxiliary (4).

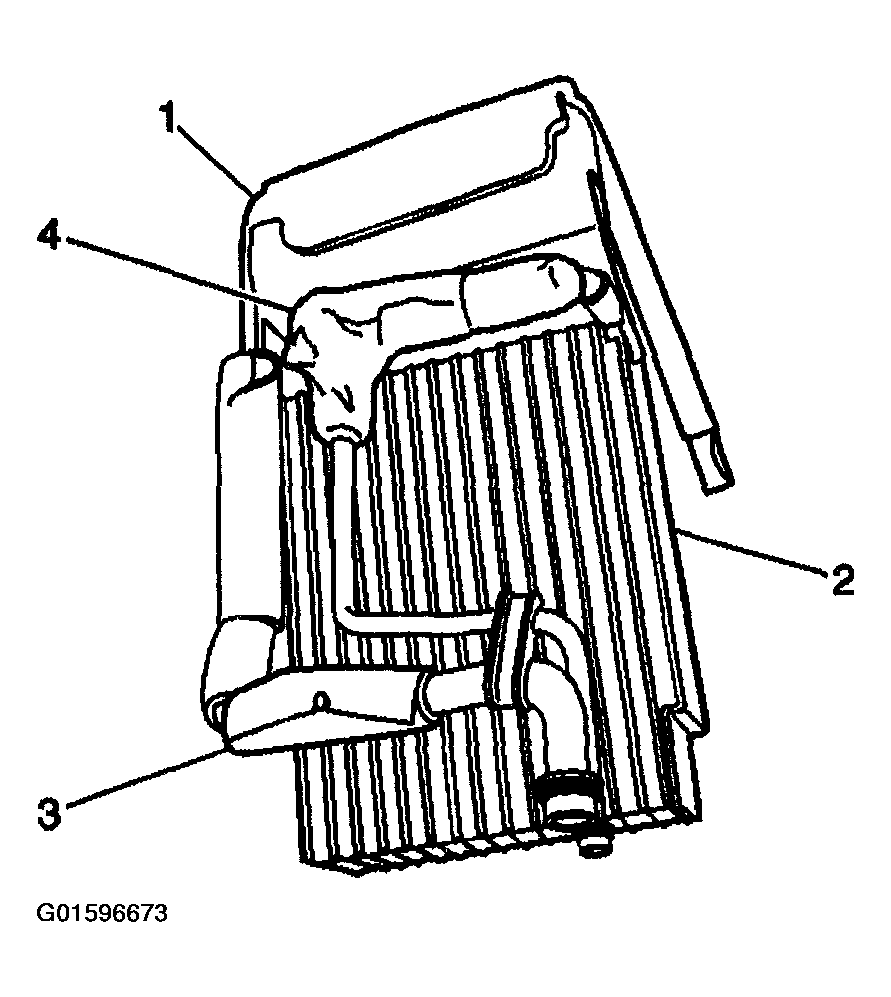

    Fig 1: Installing Foam Insulators To Thermal Expansion Valve-Auxiliary
    G01596673Courtesy of GENERAL MOTORS CORP.
  7. Install the evaporator core-auxiliary. Refer to EVAPORATOR CORE REPLACEMENT - AUXILIARY .
