Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the HVAC module assembly. Refer to HVAC MODULE ASSEMBLY REPLACEMENT .
  2. Remove the screws retaining the recirculation assembly to the HVAC module assembly.
  3. Remove the screws from the recirculation actuator.
  4. Remove recirculation actuator.
  5. Remove the recirculation door (1) from the recirculation assembly.

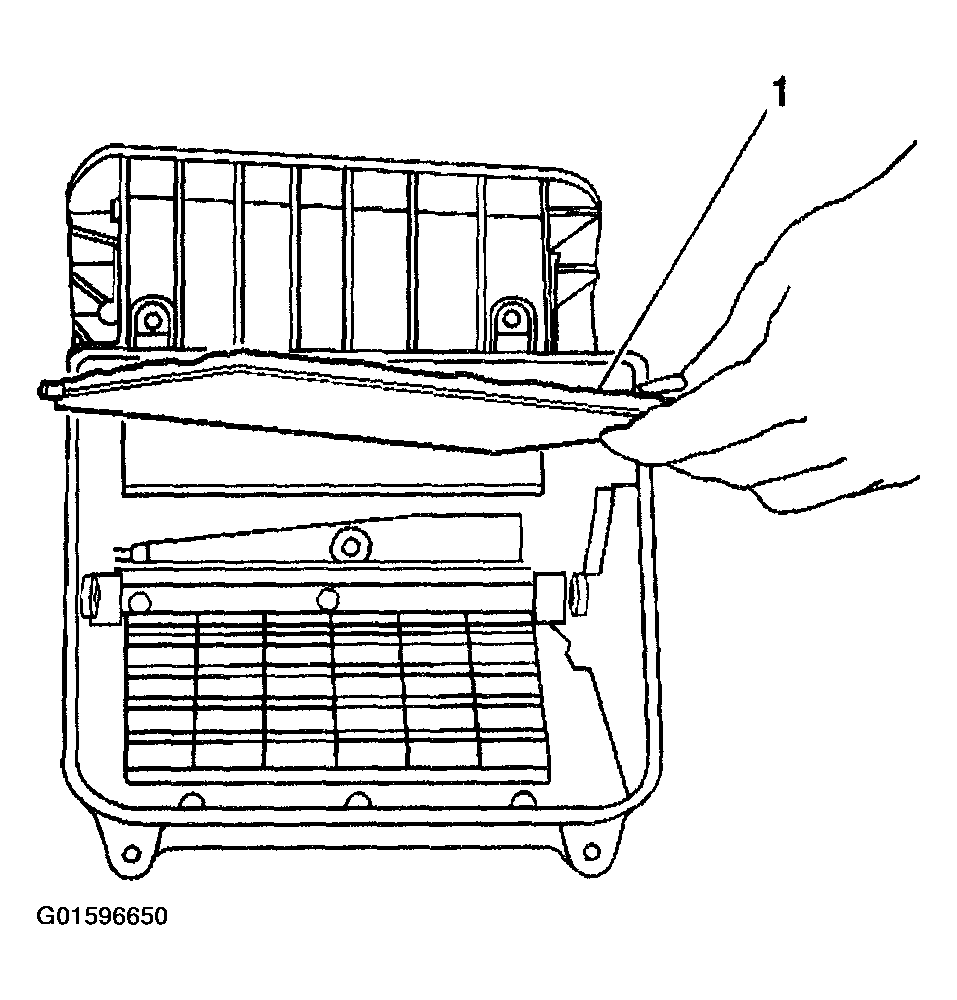

    Fig 1: Removing Recirculation Door From Recirculation Assembly
    G01596650Courtesy of GENERAL MOTORS CORP.
