Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the recirculation door (1) to the recirculation assembly.
  2. Install the recirculation actuator.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the screws to the recirculation actuator.

    Tighten

    Tighten the screws to 1.9 N.m (18 lb in).

  4. Install the screws to assemble the recirculation assembly.

    Tighten

    Tighten the screws to 1.9 N.m (18 lb in).

  5. Install the HVAC module assembly. Refer to HVAC MODULE ASSEMBLY REPLACEMENT .

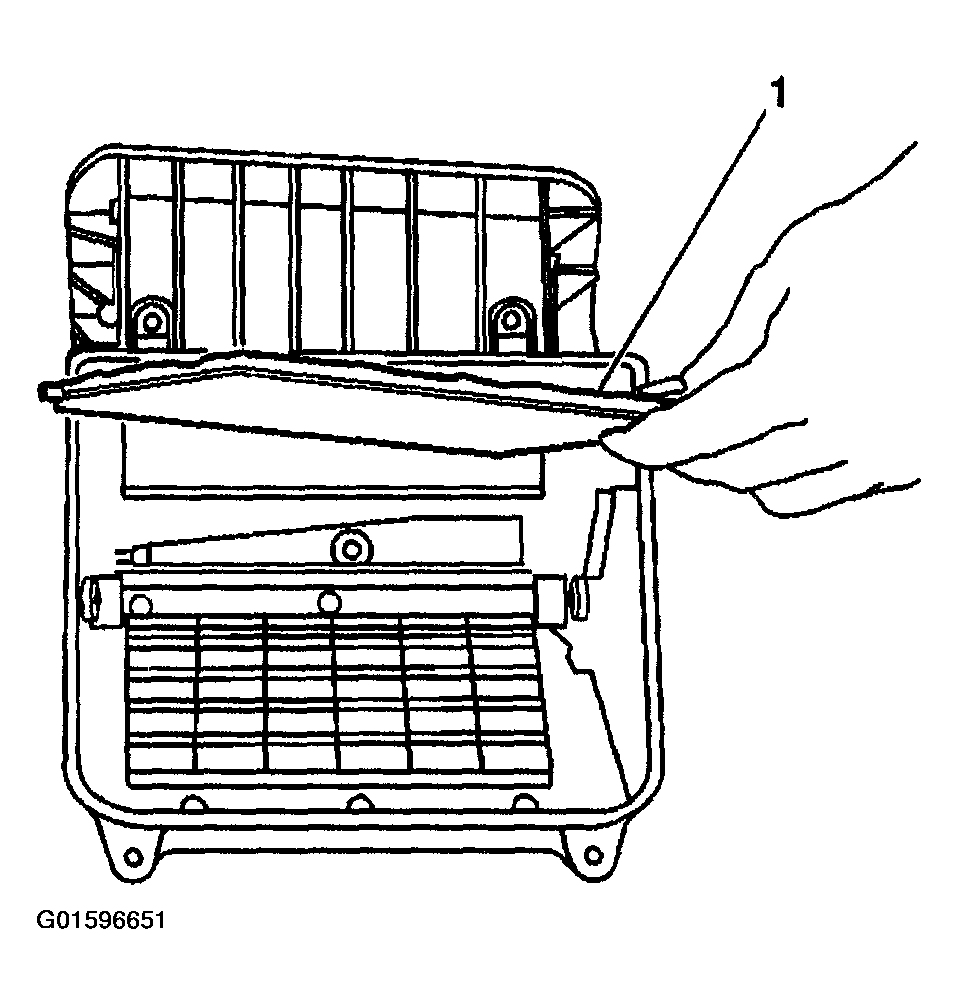

    Fig 1: Installing Recirculation Door To Recirculation Assembly
    G01596651Courtesy of GENERAL MOTORS CORP.
