Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect the new O-ring seal for any sign or cracks, cuts, or damage. Replace if necessary.
  2. Remove the cap or tape from the A/C refrigerant components.
  3. Using a lint-free clean, dry cloth, clean the sealing surfaces of the A/C refrigerant components.
    IMPORTANT: DO NOT allow any of the mineral base 525 viscosity refrigerant oil on the new O-ring seal to enter the refrigerant system.
  4. Lightly coat the new O-ring seal with mineral base 525 viscosity refrigerant oil.
    IMPORTANT: DO NOT reuse O-ring seals.
  5. Carefully slide the new O-ring seal onto the A/C refrigerant component.
  6. The O-ring seal must be fully seated.

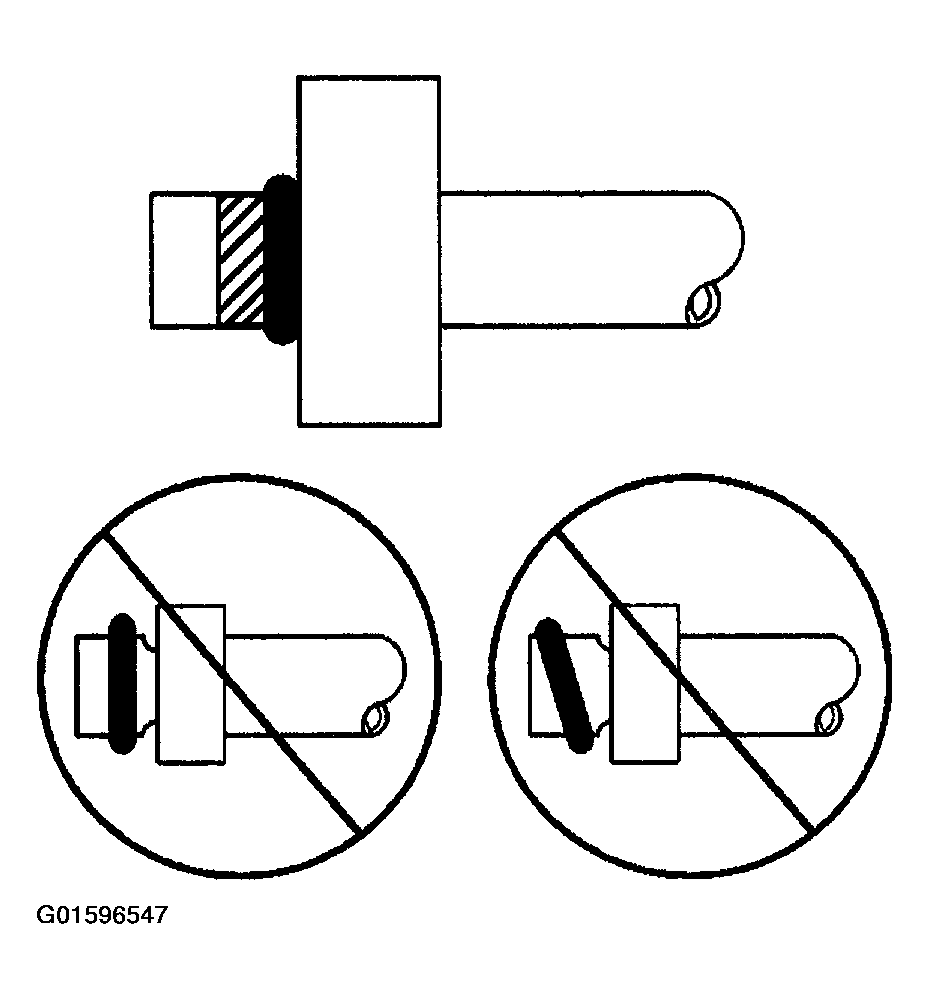

    Fig 1: Inspecting New O-Ring Seal For Cracks, Cuts, Or Damage
    G01596547Courtesy of GENERAL MOTORS CORP.
  7. Assemble the A/C components.

    Refer to the appropriate repair procedure.

    • For compression style fittings use a back up wrench on the fitting (2) and tighten the fitting nut (1) to specification.
    • For banjo style fittings install the bolt retaining the banjo type fitting and tighten to specification.

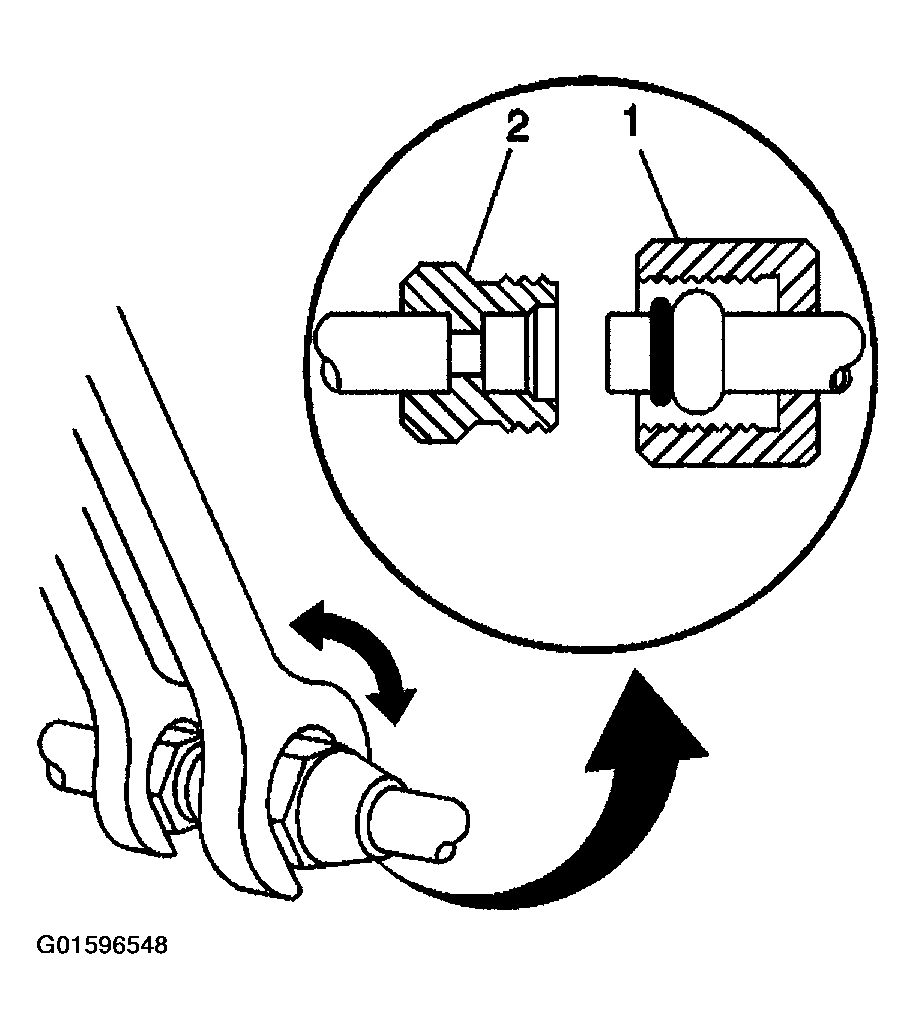

      Fig 2: Identifying Compression Style Fittings
      G01596548Courtesy of GENERAL MOTORS CORP.
