Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the I/P carrier. Refer to INSTRUMENT PANEL (I/P) CARRIER REPLACEMENT in Instrument Panel, Gages and Console.
  2. Remove the screws from the mode actuator.
  3. Remove the mode actuator.

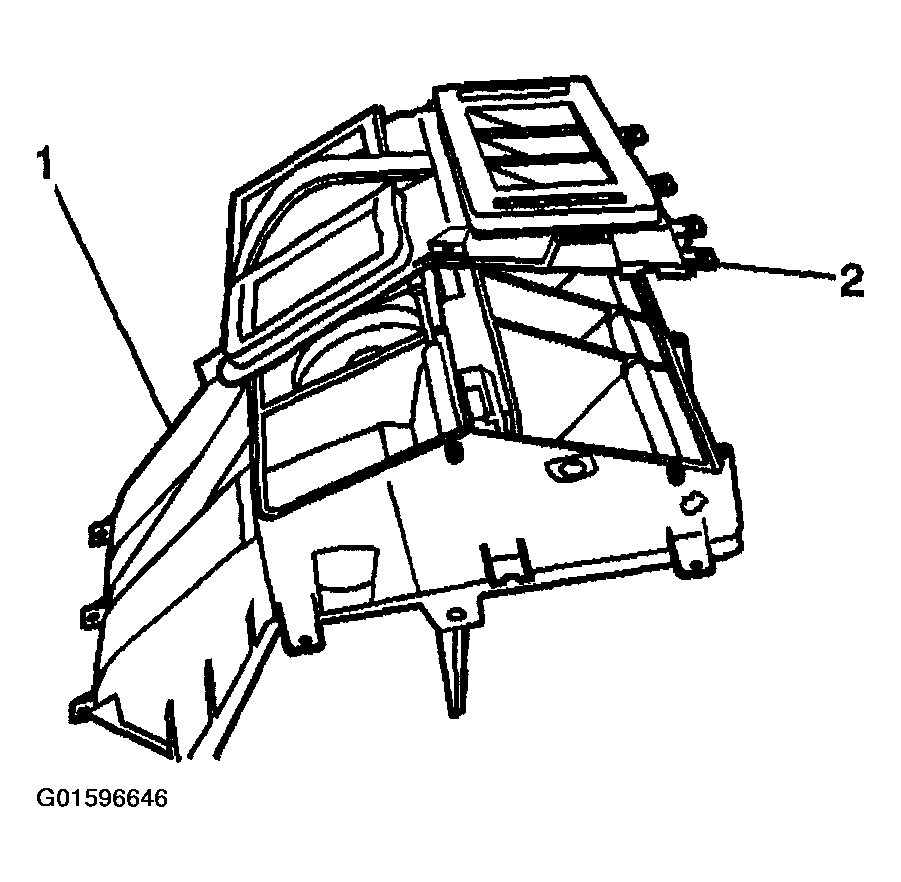

  4. Remove screws in order to separate the defroster/mode outlet cover (2) from the HVAC module assembly (1).
    Fig 1: Separating Defroster/Mode Outlet Cover From HVAC Module Assembly
    G01596646Courtesy of GENERAL MOTORS CORP.

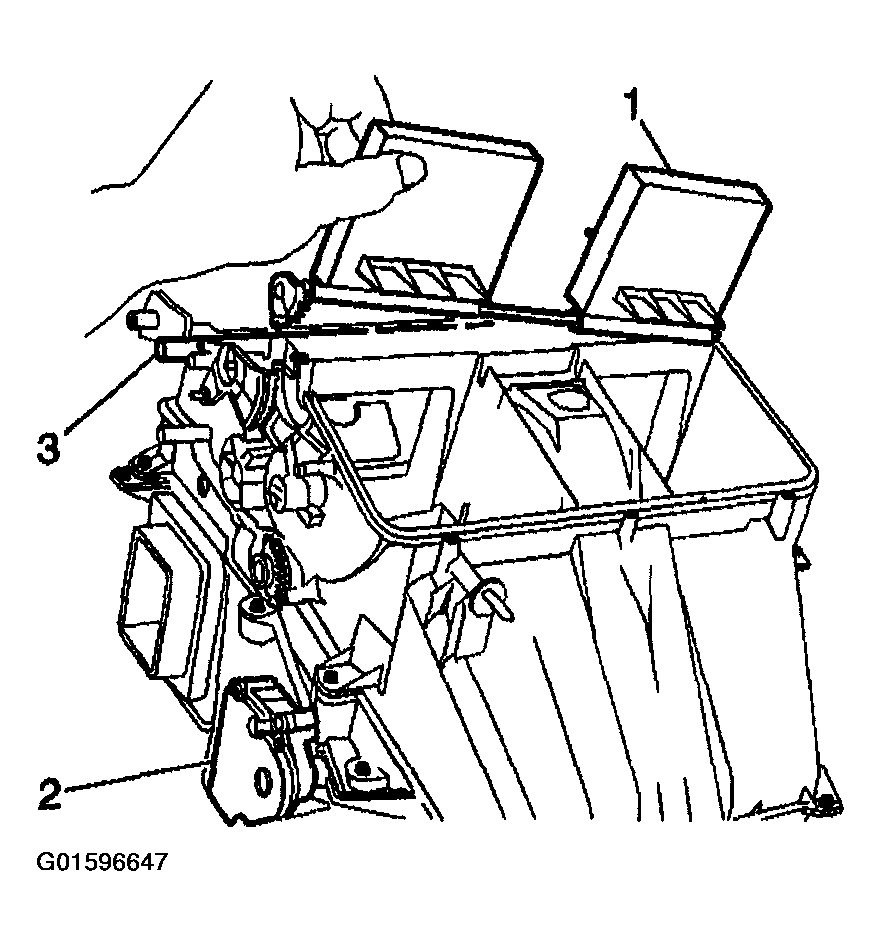

  5. Remove the mode door (1) from the heater module.
    Fig 2: Removing Mode Door From Heater Module
    G01596647Courtesy of GENERAL MOTORS CORP.
