Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the outlet heater hose.
  2. Install the heater outlet hose (7) to the outlet hose fitting.
  3. Position the outlet heater hose clamp (6) at the outlet hose fitting using J 38185.

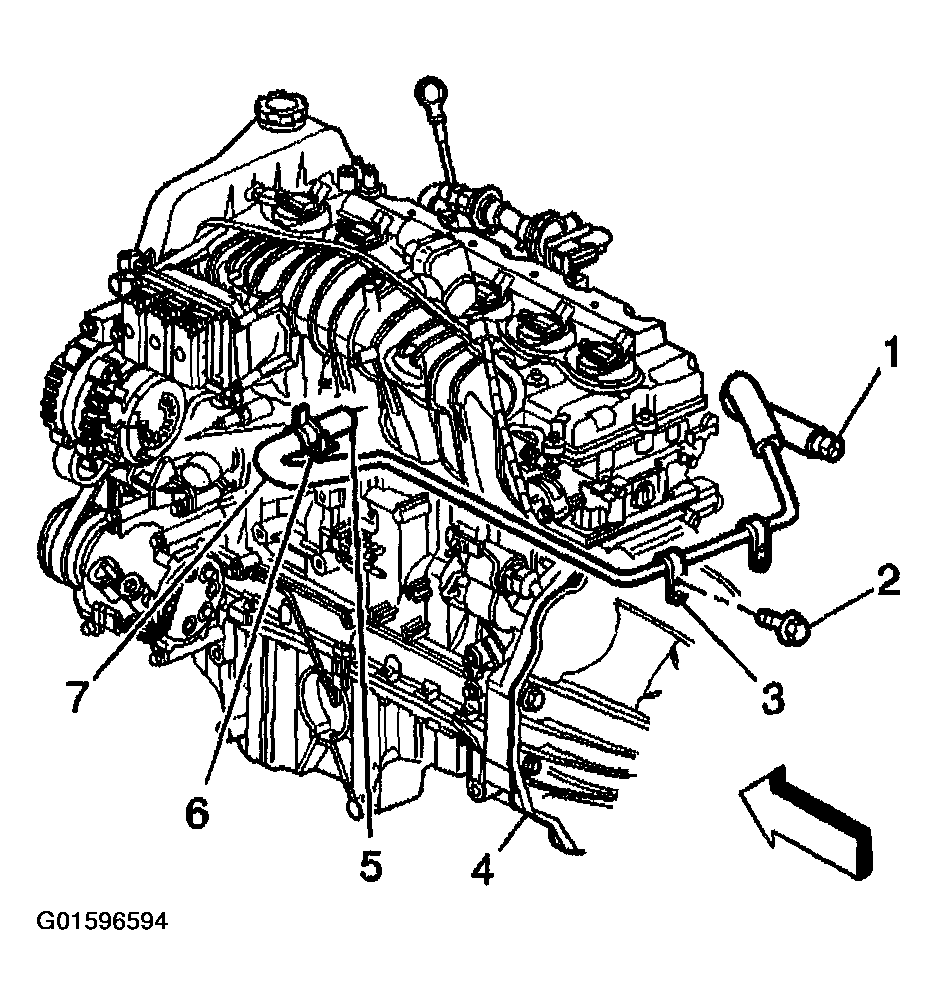

    Fig 1: Installing Heater Outlet Hose To Outlet Hose Fitting (LL8)
    G01596594Courtesy of GENERAL MOTORS CORP.
  4. Install the heater outlet hose (3) to the heater core (1).
  5. Firmly push the quick connect onto the heater core hose until you hear an audible click.
  6. Install the transmission. Refer to Transmission Replacement (LL8) or Transmission Replacement (LM4) in Automatic Transmission - 4L60/4L65-E.
  7. Install the generator. Refer to CHARGING SYSTEM or CHARGING SYSTEM in Engine Electrical.
  8. Fill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM (BODY VIN CODE 6) or DRAINING AND FILLING COOLING SYSTEM (BODY VIN CODE 3) .

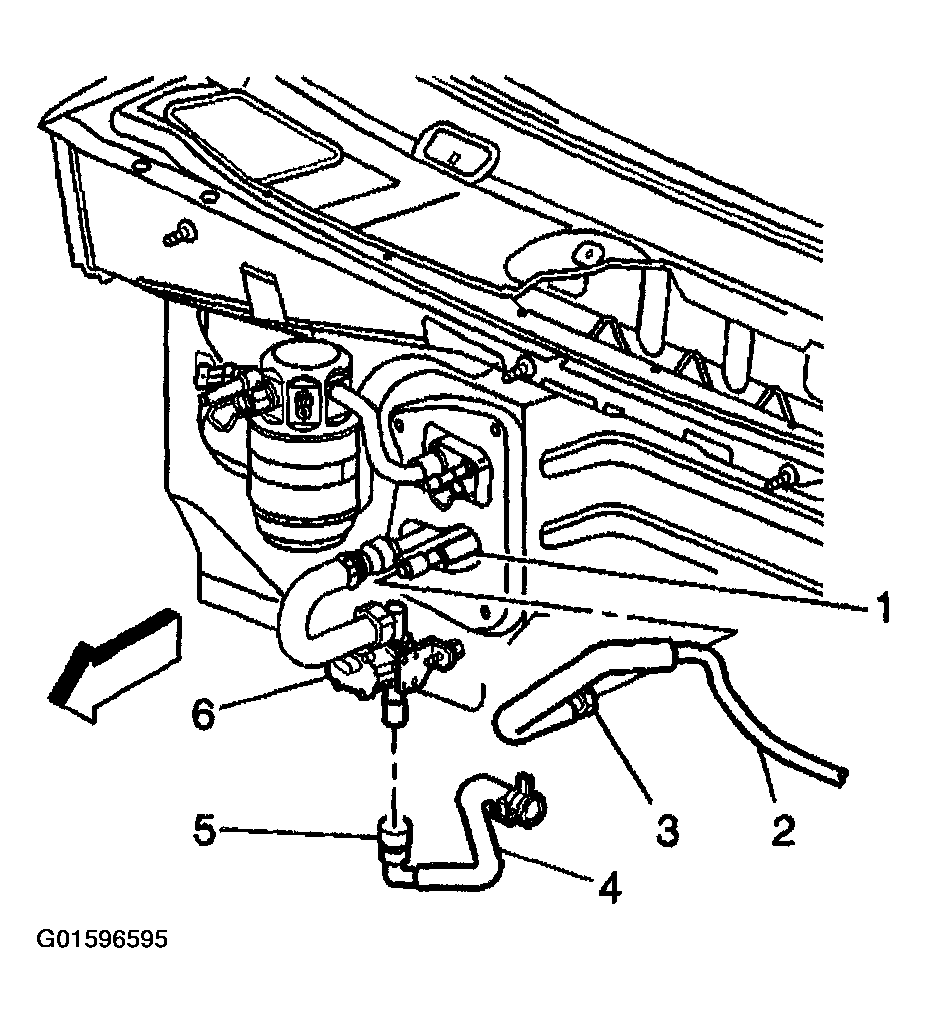

    Fig 2: Installing Heater Outlet Hose To Heater Core (LL8)
    G01596595Courtesy of GENERAL MOTORS CORP.
