Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the HVAC module assembly. Refer to HVAC MODULE ASSEMBLY REPLACEMENT .
  2. Remove the heater core access cover screws.
  3. Remove the heater core access cover.
  4. Remove the heater core (2) from the HVAC module assembly (1).

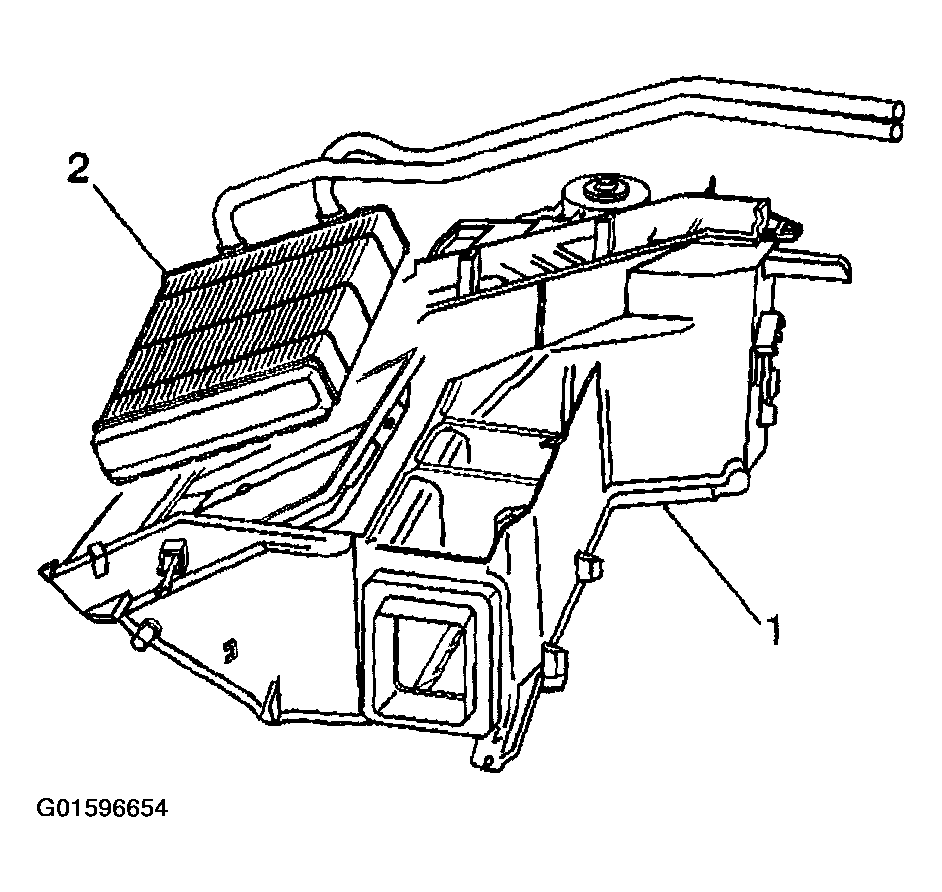

    Fig 1: Removing Heater Core From HVAC Module Assembly
    G01596654Courtesy of GENERAL MOTORS CORP.
