Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the HVAC module-auxiliary. Refer to HVAC MODULE REPLACEMENT - AUXILIARY .
  2. Remove the screws from heater core cover-auxiliary (3) from the HVAC module-auxiliary.
  3. Remove the heater core cover-auxiliary (3).

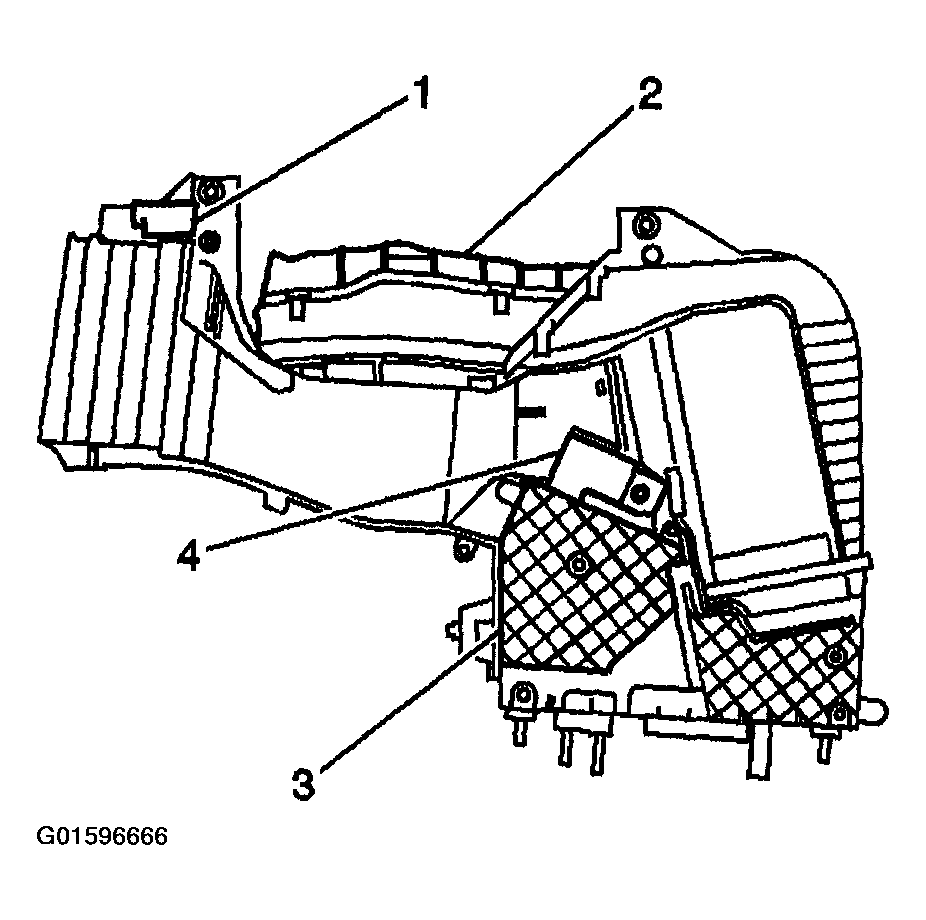

    Fig 1: Removing Heater Core Cover-Auxiliary
    G01596666Courtesy of GENERAL MOTORS CORP.
  4. Remove the HVAC module pass thru seal-auxiliary.

    Remove the heater core-auxiliary (2) from the HVAC module-auxiliary.

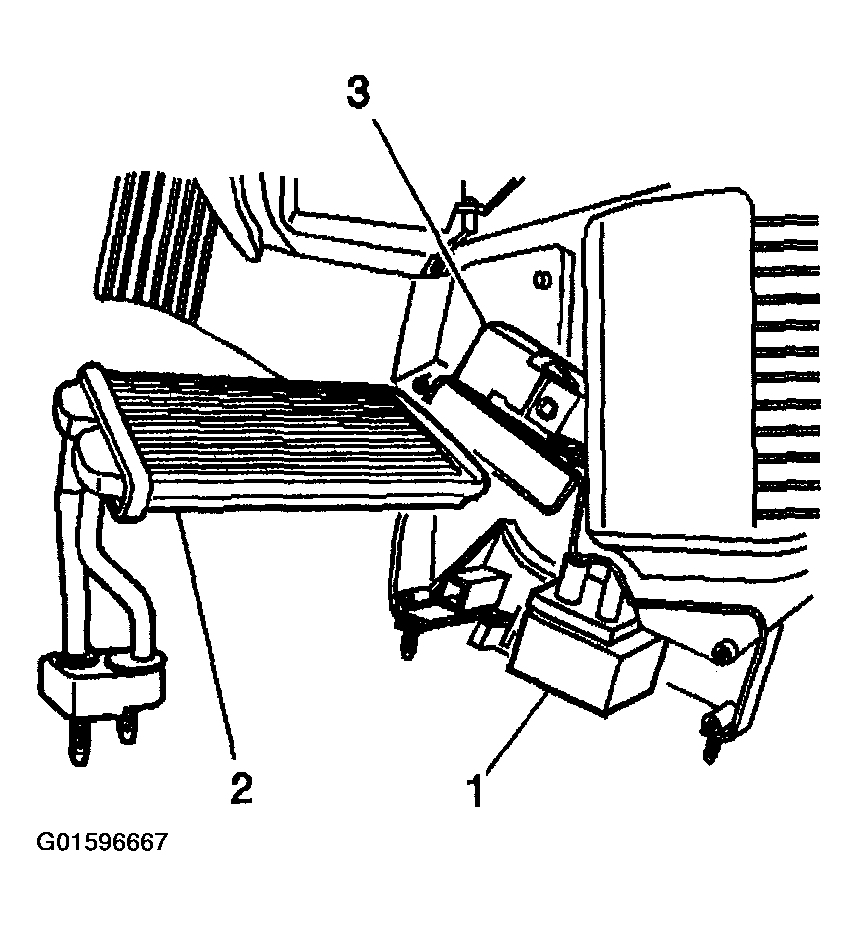

    Fig 2: Removing Heater Core-Auxiliary From HVAC Module-Auxiliary
    G01596667Courtesy of GENERAL MOTORS CORP.
