Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install new HVAC module pass through seal.

    Refer to HVAC MODULE PASS THRU SEAL REPLACEMENT - AUXILIARY .

  2. Install the HVAC module (1).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the HVAC module mounting bolts (5).

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

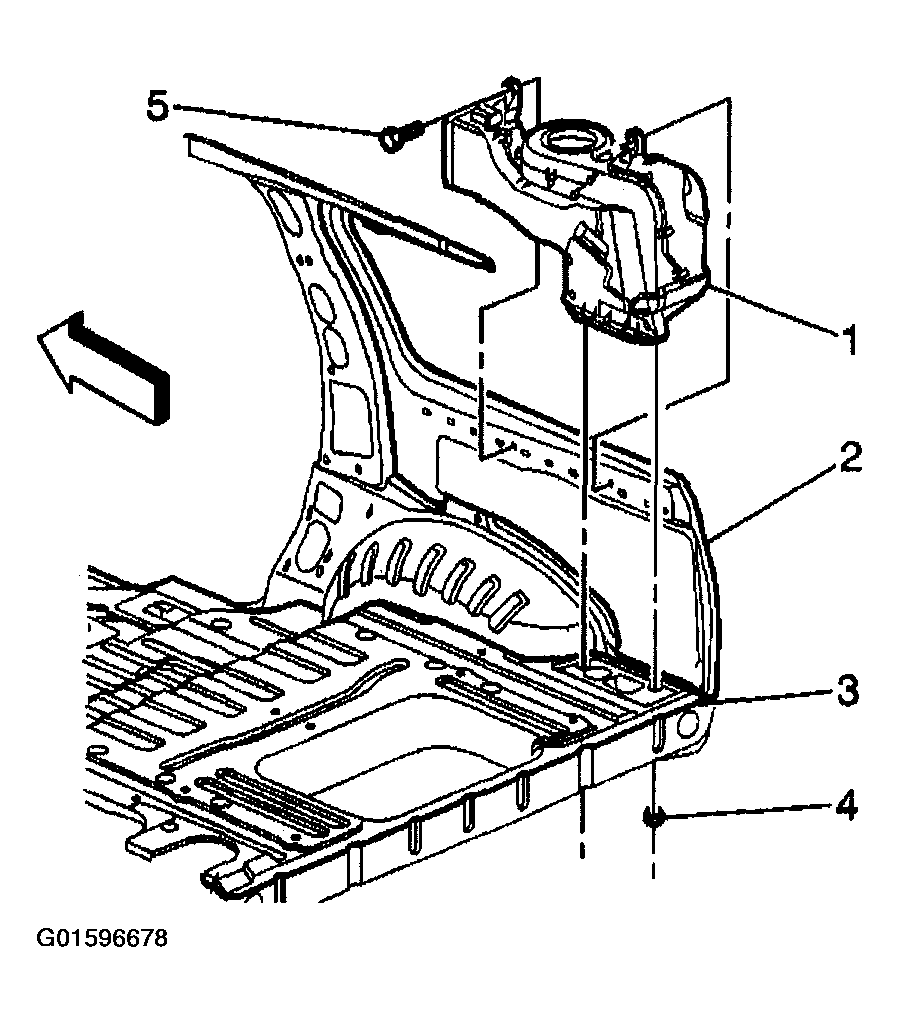

    Fig 1: Installing HVAC Module And HVAC Module Mounting Bolts
    G01596678Courtesy of GENERAL MOTORS CORP.
  4. Install the air outlet ducts (5).
  5. Connect the electrical connectors.
  6. Install the right side rear quarter trim panel. Refer to INTERIOR TRIM in Interior Trim.
  7. Raise and support the vehicle.

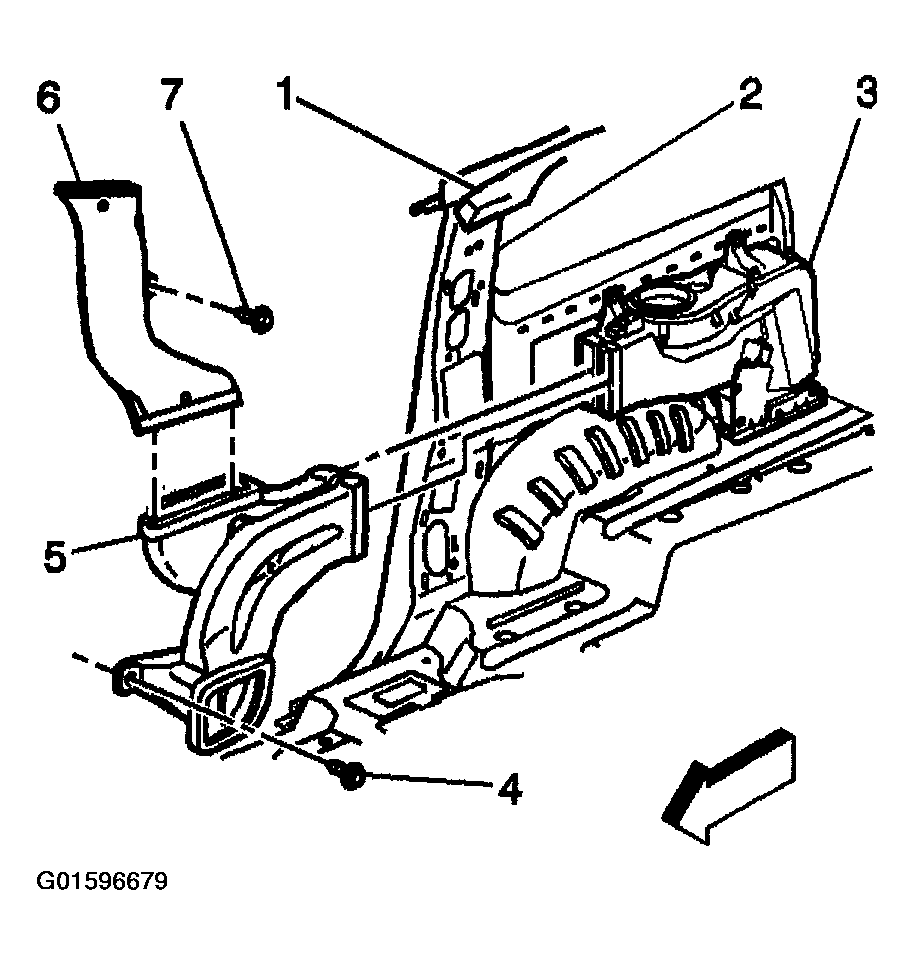

    Fig 2: Installing Air Outlet Ducts
    G01596679Courtesy of GENERAL MOTORS CORP.
  8. Connect the heater hoses to the heater core.
  9. Install the nuts to the HVAC module studs.

    Tighten

    Tighten the nuts to 10 N.m (89 lb in).

  10. Remove the cap or tape from the A/C lines.
  11. Install the new O-ring seals. Refer to O-RING REPLACEMENT .

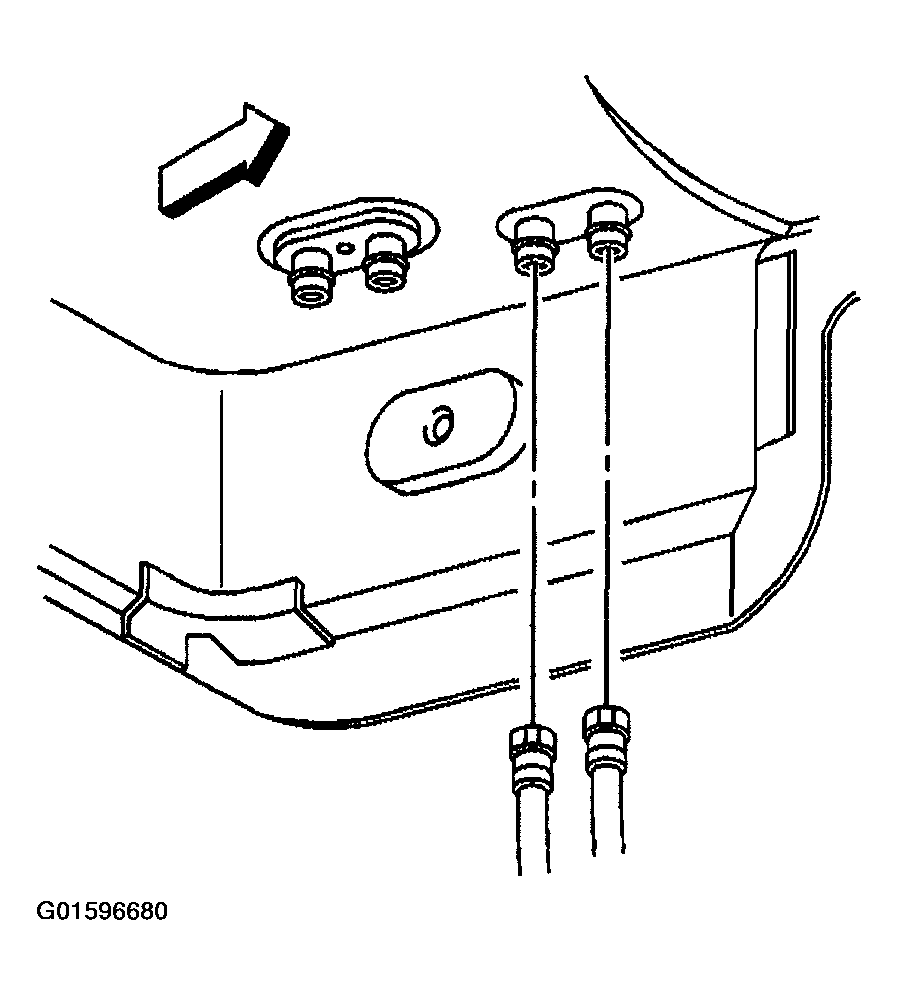

    Fig 3: Connecting Heater Hoses To Heater Core
    G01596680Courtesy of GENERAL MOTORS CORP.
  12. Install the nuts (3) to the evaporator core studs.

    Tighten

    Tighten the nuts to 20 N.m (15 lb ft).

  13. Lower the vehicle.
  14. Fill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM (BODY VIN CODE 6) or DRAINING AND FILLING COOLING SYSTEM (BODY VIN CODE 3) in Engine Cooling.
  15. Evacuate and charge the system. Refer to REFRIGERANT RECOVERY AND RECHARGING .
  16. Leak test the fitting of the component using the J 39400-A.

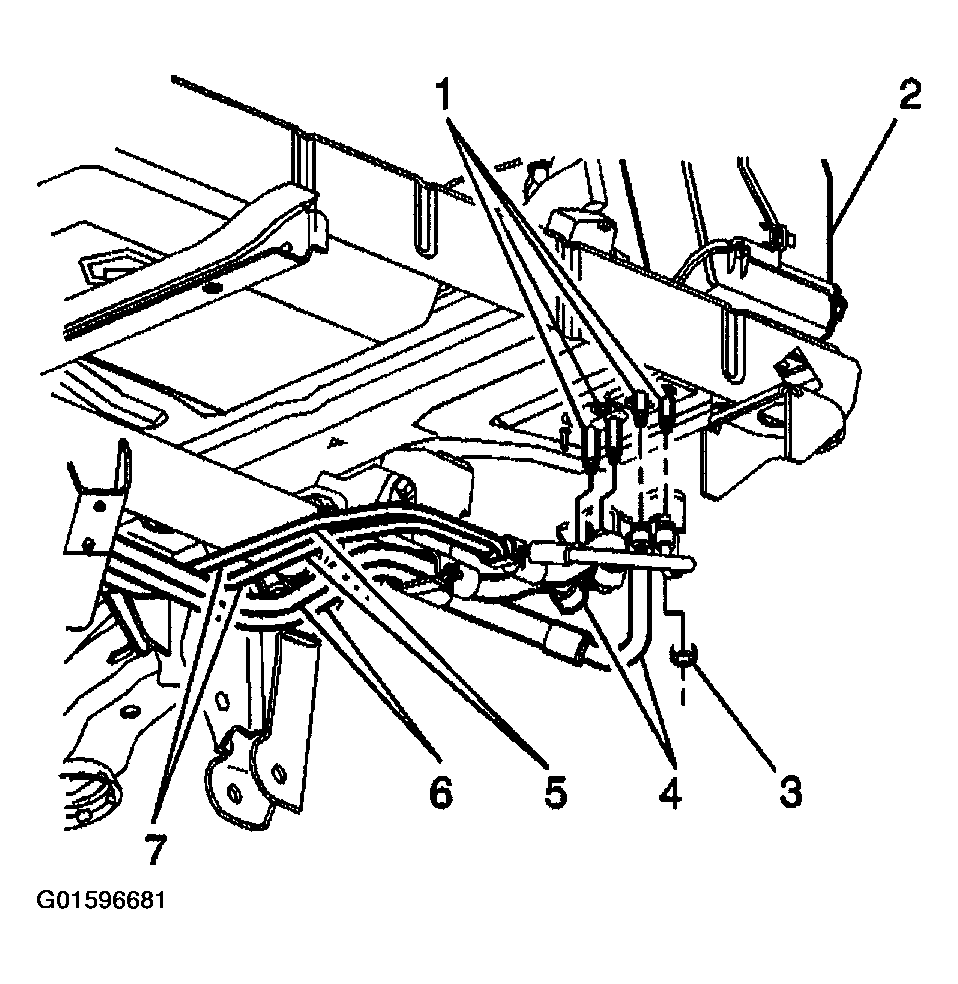

    Fig 4: Installing Nuts To Evaporator Core Studs
    G01596681Courtesy of GENERAL MOTORS CORP.
