Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the HVAC pass thru seal (3) to the HVAC module-auxiliary (1).
  2. Install the heater core cover-auxiliary.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the screws to the heater core cover-auxiliary.

    Tighten

    Tighten the screws to 1.9 N.m (18 lb in).

  4. Install the HVAC Module-Auxiliary. Refer to HVAC MODULE REPLACEMENT - AUXILIARY .

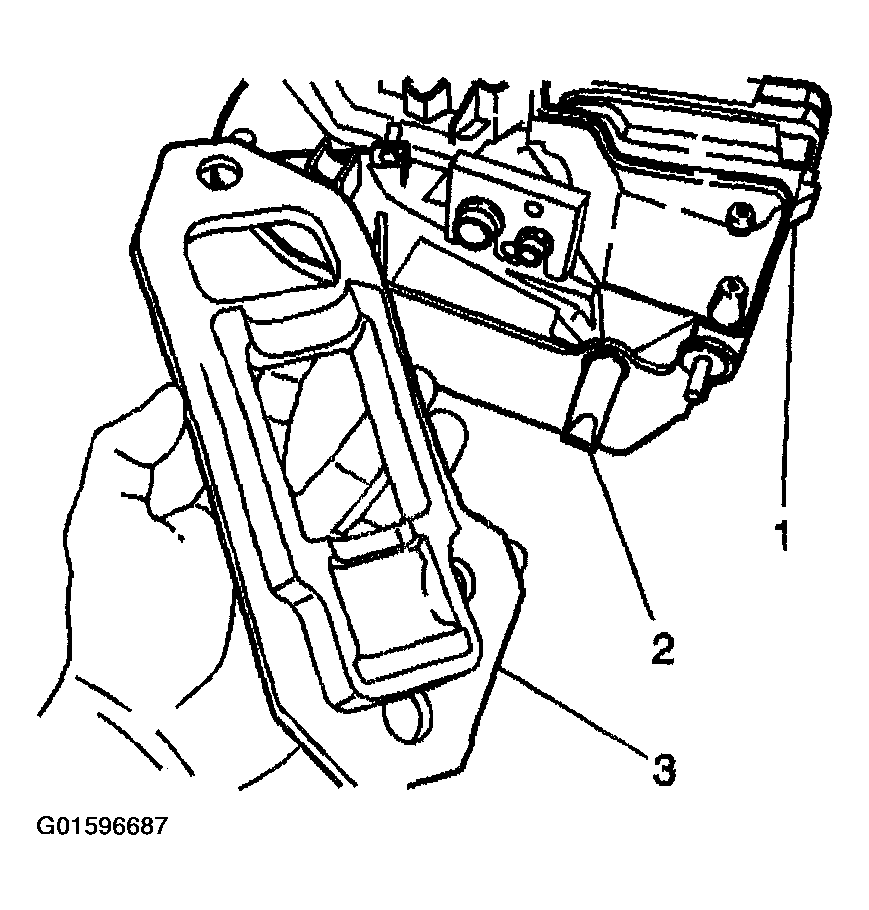

    Fig 1: Installing HVAC Pass Thru Seal To HVAC Module-Auxiliary
    G01596687Courtesy of GENERAL MOTORS CORP.
