Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the HVAC module-auxiliary case sump (4) to the HVAC module.
  2. Install the evaporator core-auxiliary. Refer to EVAPORATOR CORE REPLACEMENT - AUXILIARY .

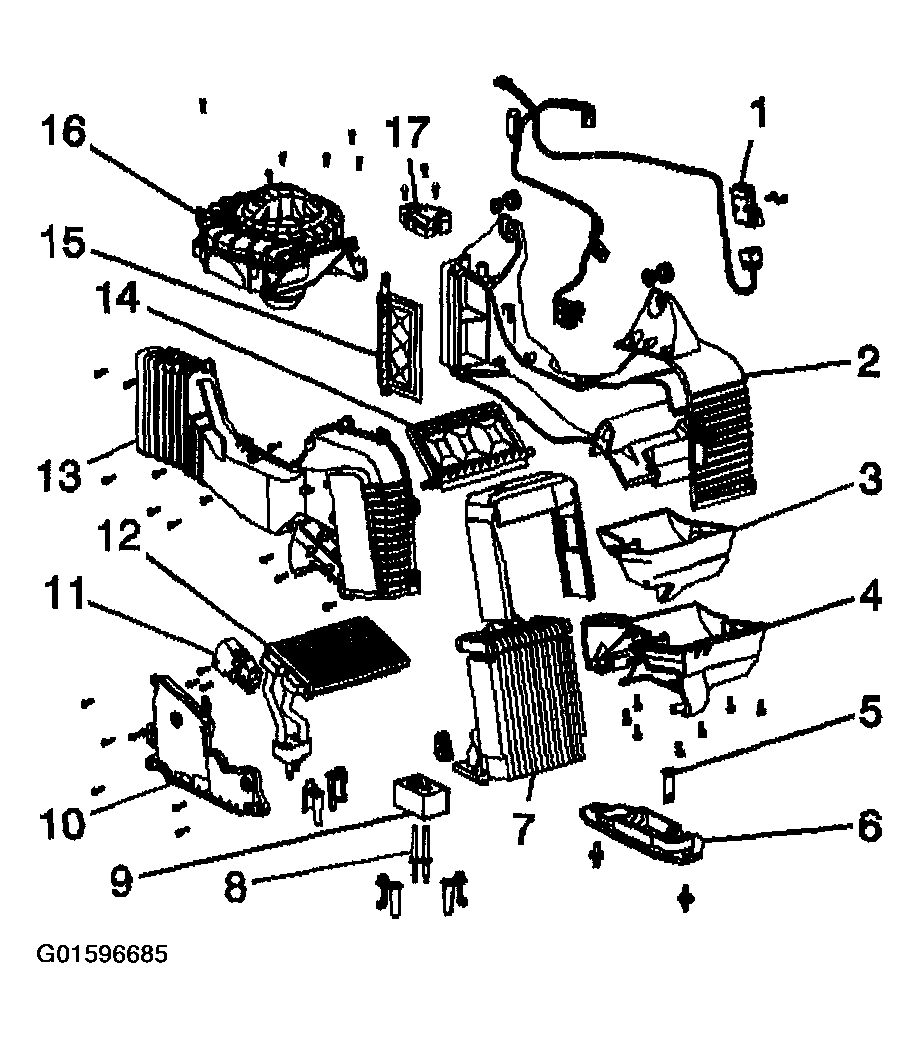

    Fig 1: Installing HVAC Module-Auxiliary Case Sump To HVAC Module
    G01596685Courtesy of GENERAL MOTORS CORP.
