Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Transfer the air temperature door (14) to the HVAC module-auxiliary case half (2).
  2. Transfer the mode door (15) to the HVAC module-auxiliary case half (2).
  3. Assemble the HVAC module-auxiliary case halves (2,13).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install all of the screws to the HVAC module-auxiliary.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  5. Install the mode actuator-auxiliary.
  6. Install the mode actuator-auxiliary screws.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

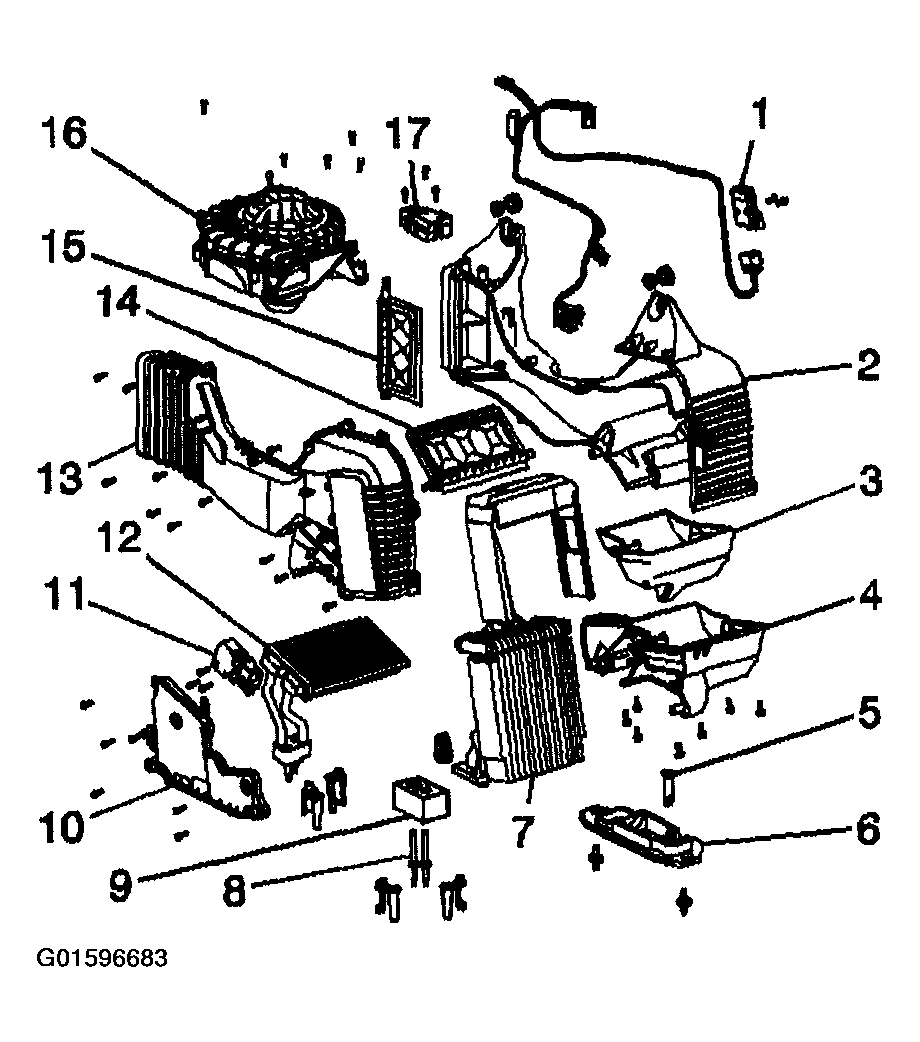

    Fig 1: Installing Mode Door And Air Temperature Door To HVAC Module-Auxiliary Case Half
    G01596683Courtesy of GENERAL MOTORS CORP.
  7. Install the air temperature actuator-auxiliary.
  8. Install the air temperature actuator-auxiliary screws.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  9. Install the evaporator core-auxiliary. Refer to EVAPORATOR CORE REPLACEMENT - AUXILIARY .
  10. Install the blower motor-auxiliary.
  11. Install the blower motor-auxiliary screws.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  12. Install the HVAC module-auxiliary. Refer to HVAC MODULE REPLACEMENT - AUXILIARY .
