Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. If replacing the HVAC module assembly(8), transfer the components from the old HVAC module assembly as necessary.
  2. Install the HVAC module assembly (8).
  3. Connect all of the electrical connectors to the HVAC module assembly.

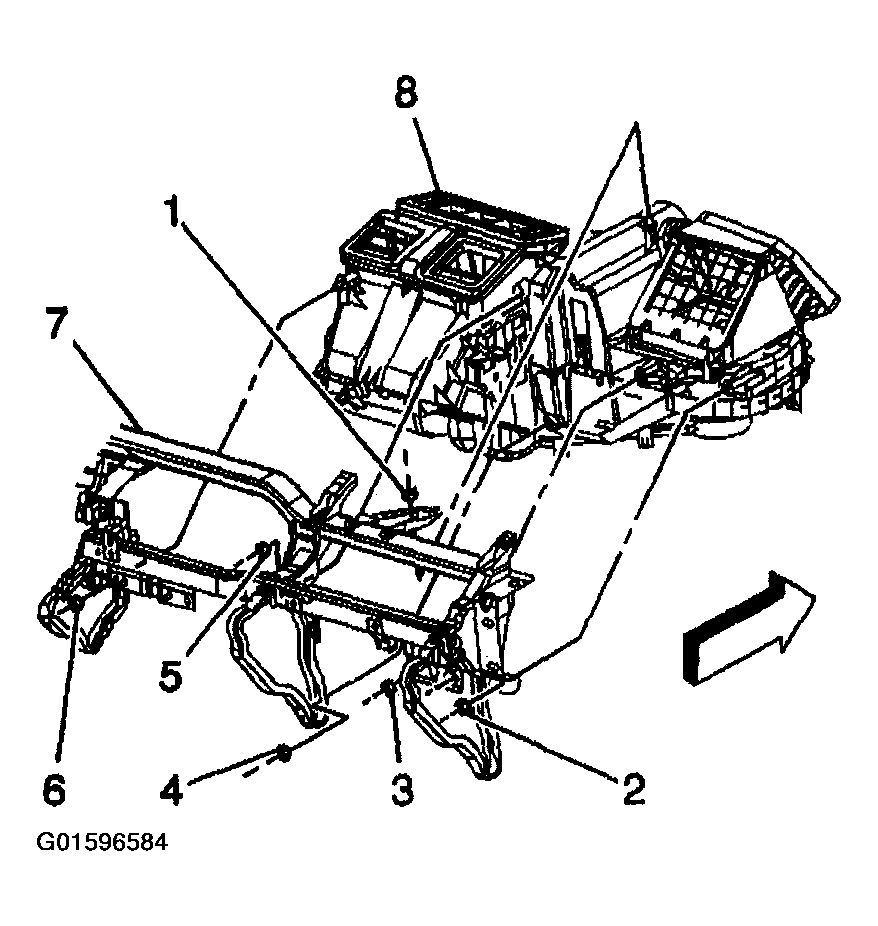

    Fig 1: Installing HVAC Module Assembly
    G01596584Courtesy of GENERAL MOTORS CORP.
  4. Connect the heater hoses to the heater core.
  5. Connect the evaporator tube (4) to the evaporator (1).
  6. Install the accumulator (6) to the evaporator (1).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  7. Tighten the accumulator retaining nut.

    Tighten

    Tighten the nut to 4.5 N.m (40 lb in).

  8. Install the I/P carrier. Refer to INSTRUMENT PANEL (I/P) CARRIER REPLACEMENT in Instrument Panel, Gages and Console.
  9. Evacuate and recharge the A/C system. Refer to REFRIGERANT RECOVERY AND RECHARGING .
  10. Leak test the fittings of the components using the J 39400.
  11. Refill the engine coolant. Refer to DRAINING AND FILLING COOLING SYSTEM (BODY VIN CODE 6) or DRAINING AND FILLING COOLING SYSTEM (BODY VIN CODE 3) in Engine Cooling.

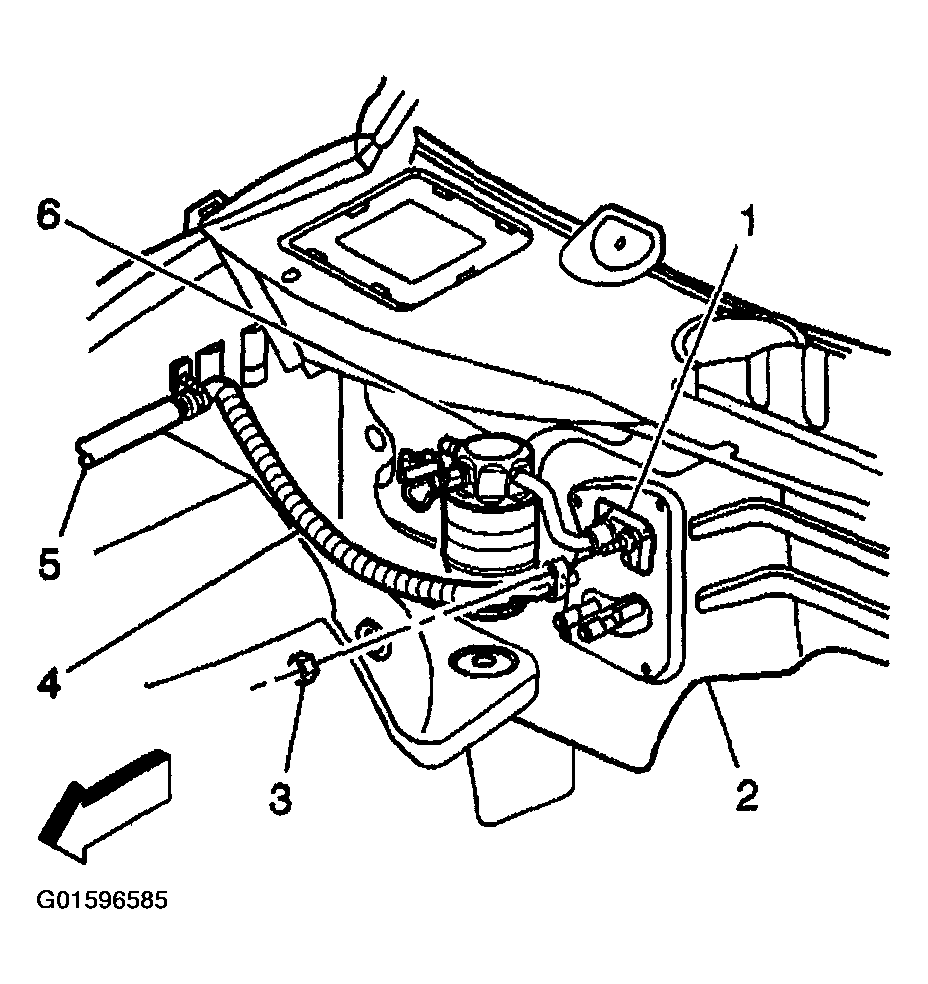

    Fig 2: Installing Accumulator To Evaporator
    G01596585Courtesy of GENERAL MOTORS CORP.
