Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Install the shorter screen end of the expansion tube into the evaporator tube (6) first.
  1. Use the J 26549-E in order to install the expansion tube.
  2. Install the new O-ring seal. Refer to O-RING REPLACEMENT .
  3. Assemble the evaporator tubes (4,6).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the evaporator tube nut.

    Tighten

    Tighten the nut to 28 N.m (21 lb ft).

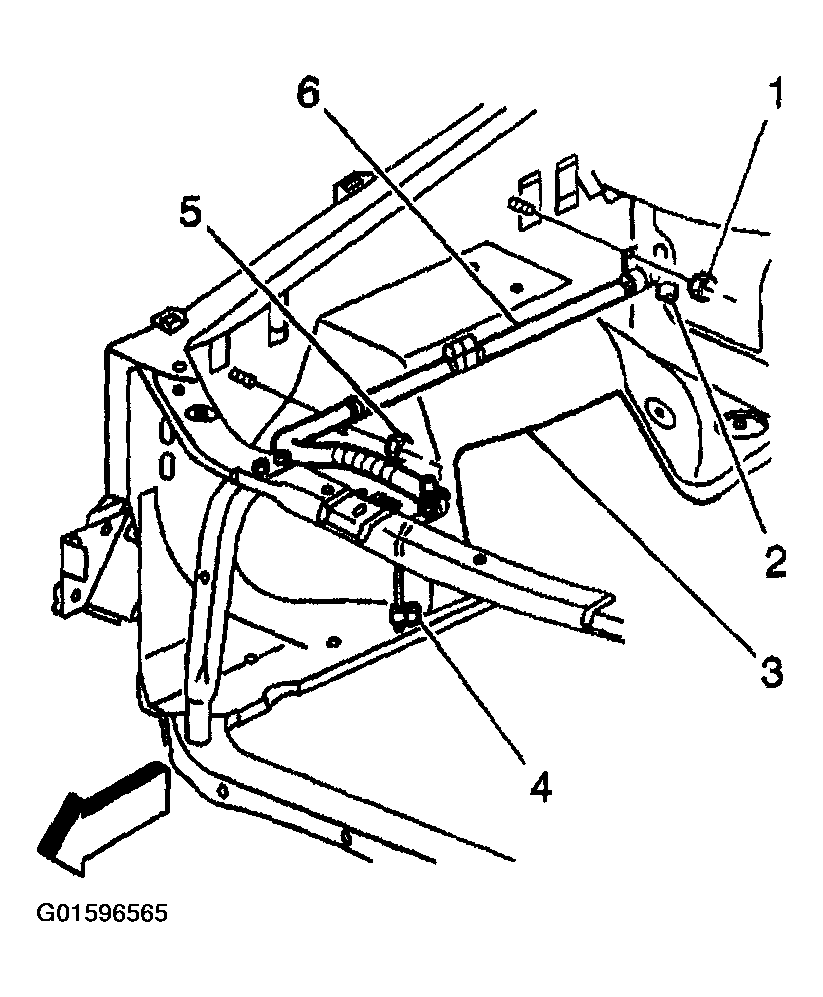

    Fig 1: Connecting Evaporator Tube To Evaporator (Body VIN Code 3)
    G01596565Courtesy of GENERAL MOTORS CORP.
  5. Connect the evaporator tube (4) to the evaporator (1).
  6. Install the nut (3).

    Tighten

    Tighten the nut to 28 N.m (21 lb ft).

  7. Install the coolant reservoir. Refer to COOLANT RECOVERY RESERVOIR REPLACEMENT in Engine Cooling.
  8. Install the accumulator. Refer to ACCUMULATOR REPLACEMENT .
  9. Recharge the refrigerant system. Refer to REFRIGERANT RECOVERY AND RECHARGING .
  10. Leak test the fittings of the components using the J 39400.

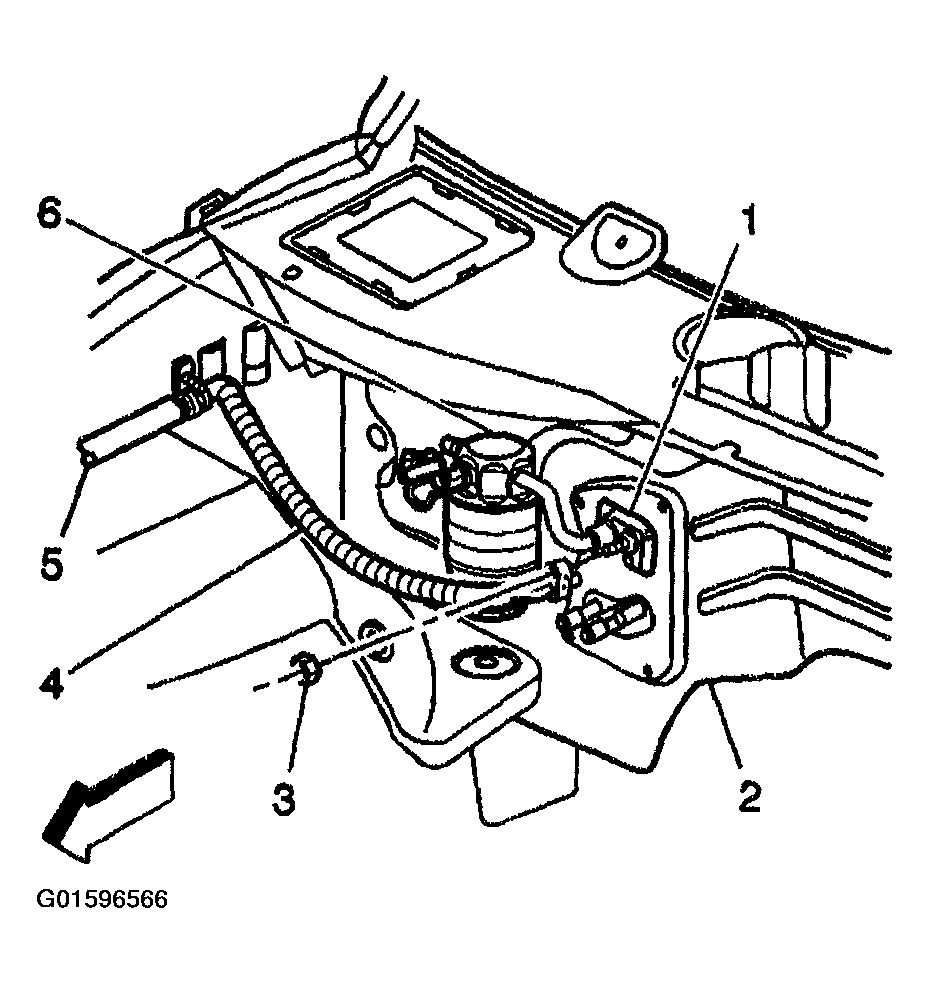

    Fig 2: Installing Evaporator Tube Nut From Evaporator (Body VIN Code 3)
    G01596566Courtesy of GENERAL MOTORS CORP.
