Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant from the system. Refer to REFRIGERANT RECOVERY AND RECHARGING .
  2. Loosen the evaporator tube (5) from the evaporator.
  3. Loosen the auxiliary evaporator tube (7) from the auxiliary piping.
  4. Remove the evaporator tube nut from the condenser.

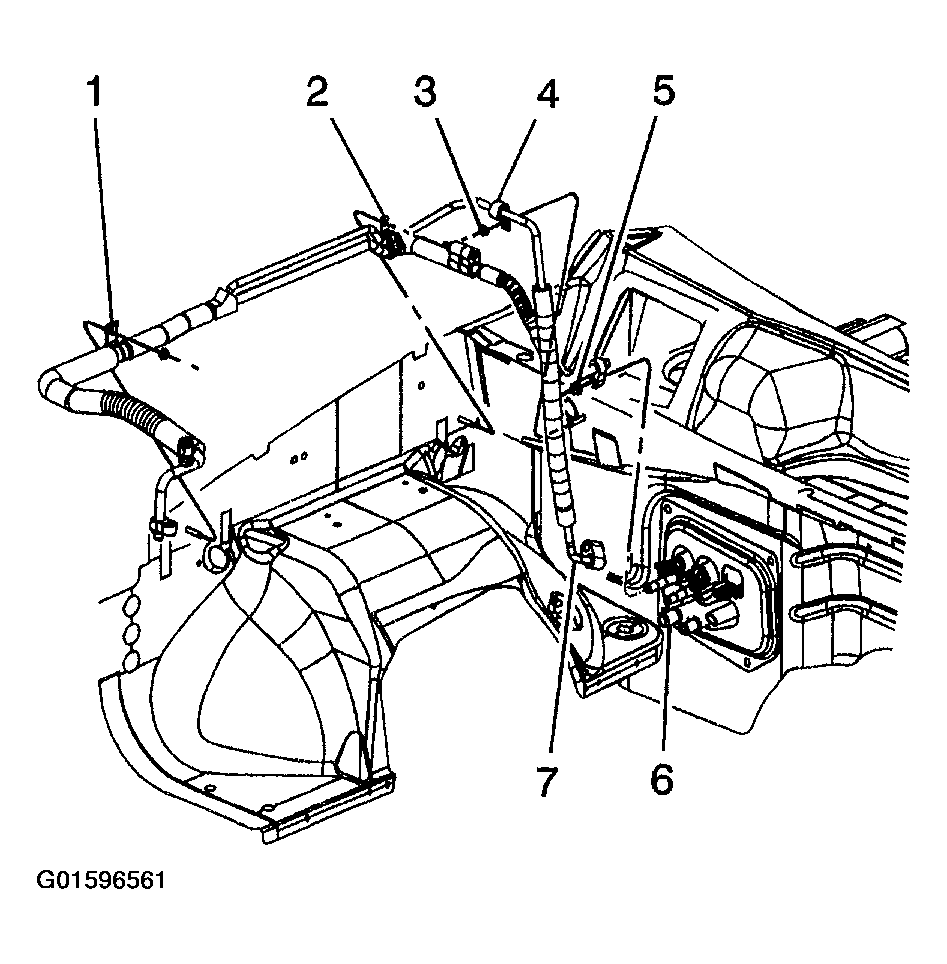

    Fig 1: Loosening Evaporator Tube From Evaporator (Body VIN6)
    G01596561Courtesy of GENERAL MOTORS CORP.
  5. Remove the nuts (1,2) retaining the evaporator tube to the fender.
  6. Remove the washer solvent container. Refer to WASHER SOLVENT CONTAINER REPLACEMENT in Wipers/Washer Systems.
  7. Remove the coolant recovery tank. Refer to COOLANT RECOVERY RESERVOIR REPLACEMENT in Engine Cooling.
  8. Remove the evaporator tube using J 26549-E.
  9. Remove the O-ring seal and discard.
