Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the new O-ring seal. Refer to O-RING REPLACEMENT .
  2. Install the evaporator tube.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the evaporator tube.

    Connect the evaporator tube to the evaporator.

    Tighten

    Tighten the nut to 28 N.m (21 lb ft).

  4. Connect the evaporator tube to the condenser.

    Tighten

    Tighten the nut to 28 N.m (21 lb ft).

  5. Install the coolant recovery tank. Refer to COOLANT RECOVERY RESERVOIR REPLACEMENT in Engine Cooling.

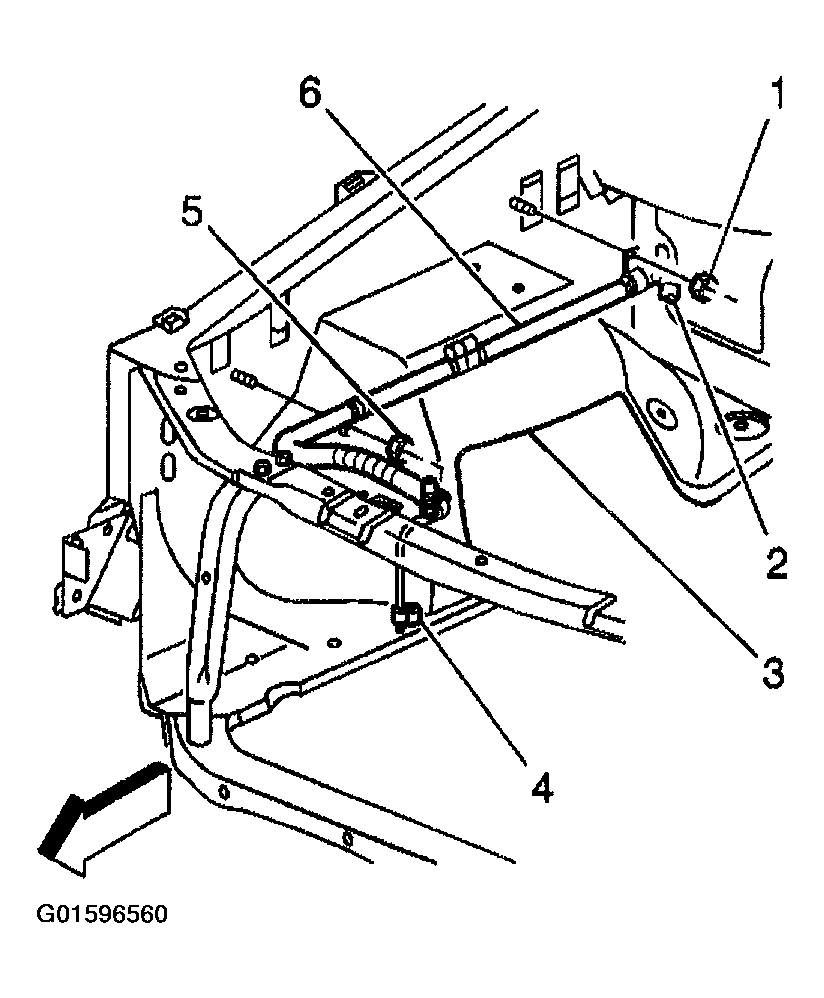

    Fig 1: Installing Nuts Retaining Evaporator Tube To Fender (Body VIN3)
    G01596560Courtesy of GENERAL MOTORS CORP.
  6. Install the washer solvent container. Refer to WASHER SOLVENT CONTAINER REPLACEMENT in Wipers/Washer Systems.
  7. Install the nuts (1,5) retaining the evaporator tube to the fender.

    Tighten

    Tighten the nuts to 28 N.m (21 lb ft).

  8. Evacuate and recharge the A/C system. Refer to REFRIGERANT RECOVERY AND RECHARGING .
  9. Leak test the fittings of the components using the J 39400.
