Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the I/P trim pad. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER in Instrument Panel, Gages and Console.
  2. Remove the side window defroster duct (3) retaining screw (4).
  3. Remove the passenger side window defroster duct.

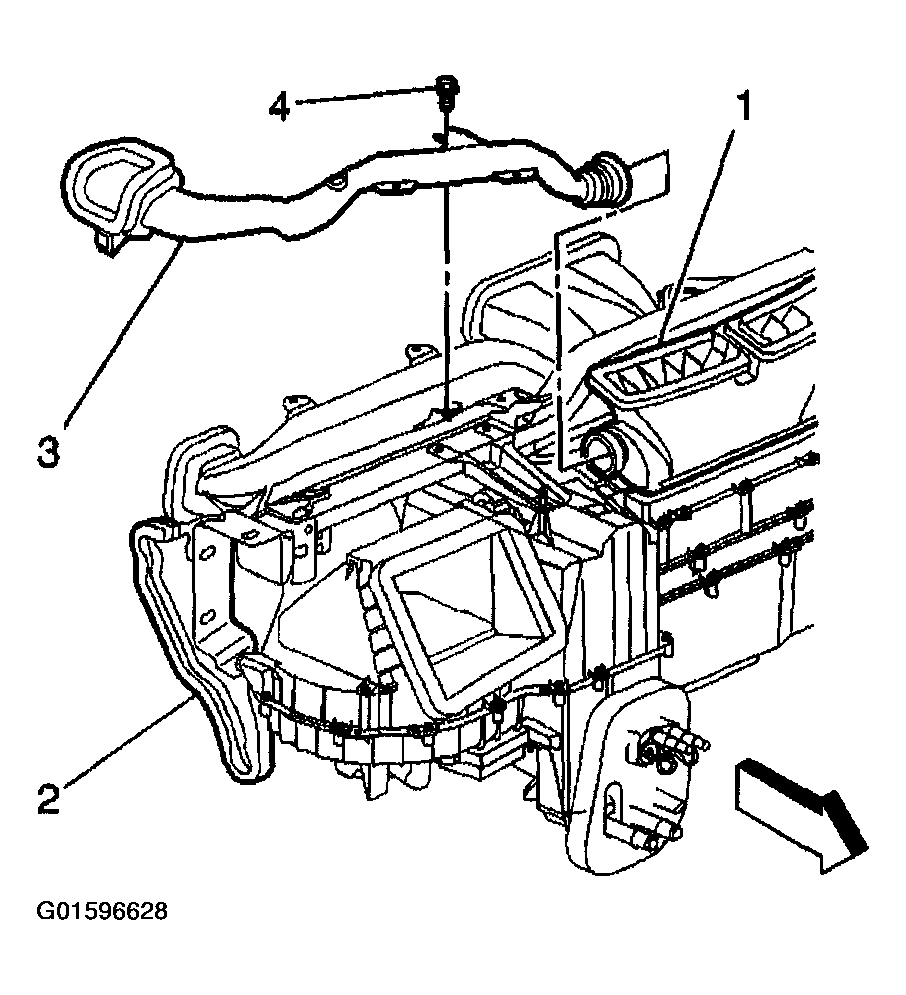

    Fig 1: Removing Side Window Defroster Duct Retaining Screw
    G01596628Courtesy of GENERAL MOTORS CORP.
  4. Remove the retaining screw (1) from the driver side window defroster duct (4).
  5. Remove the driver side window defroster duct.

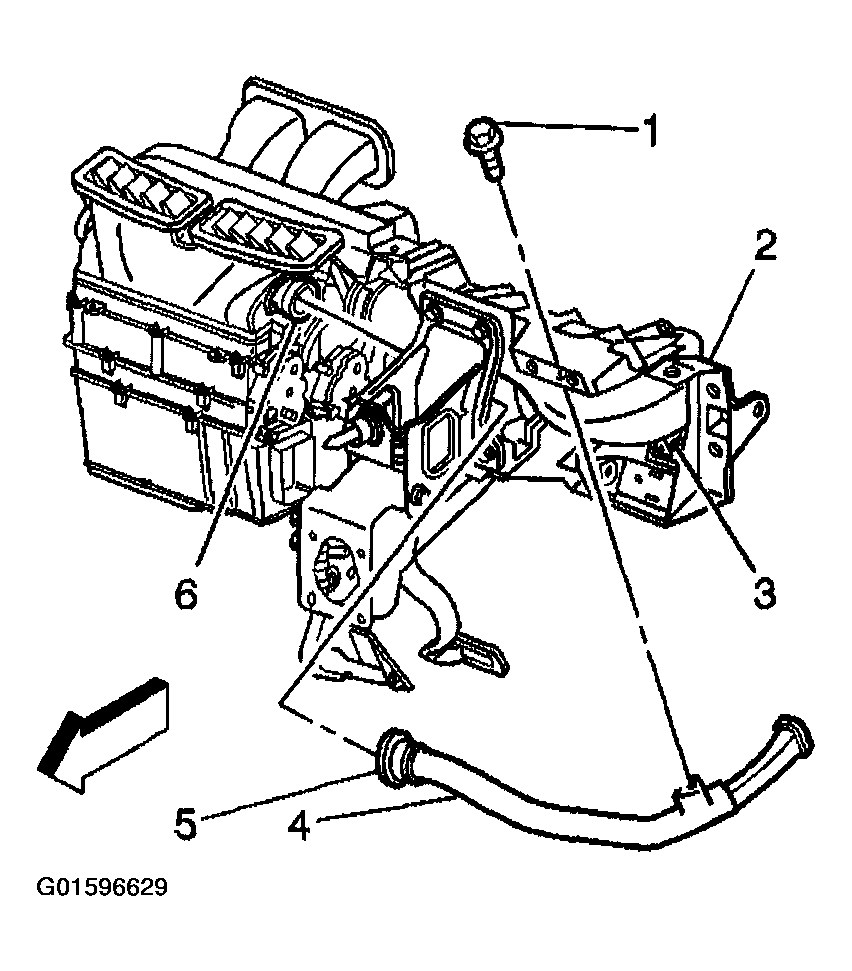

    Fig 2: Removing Retaining Screw From Driver Side Window Defroster Duct
    G01596629Courtesy of GENERAL MOTORS CORP.
  6. Release retaining clips (2) from the defroster duct (1).
  7. Remove the defroster duct (1).

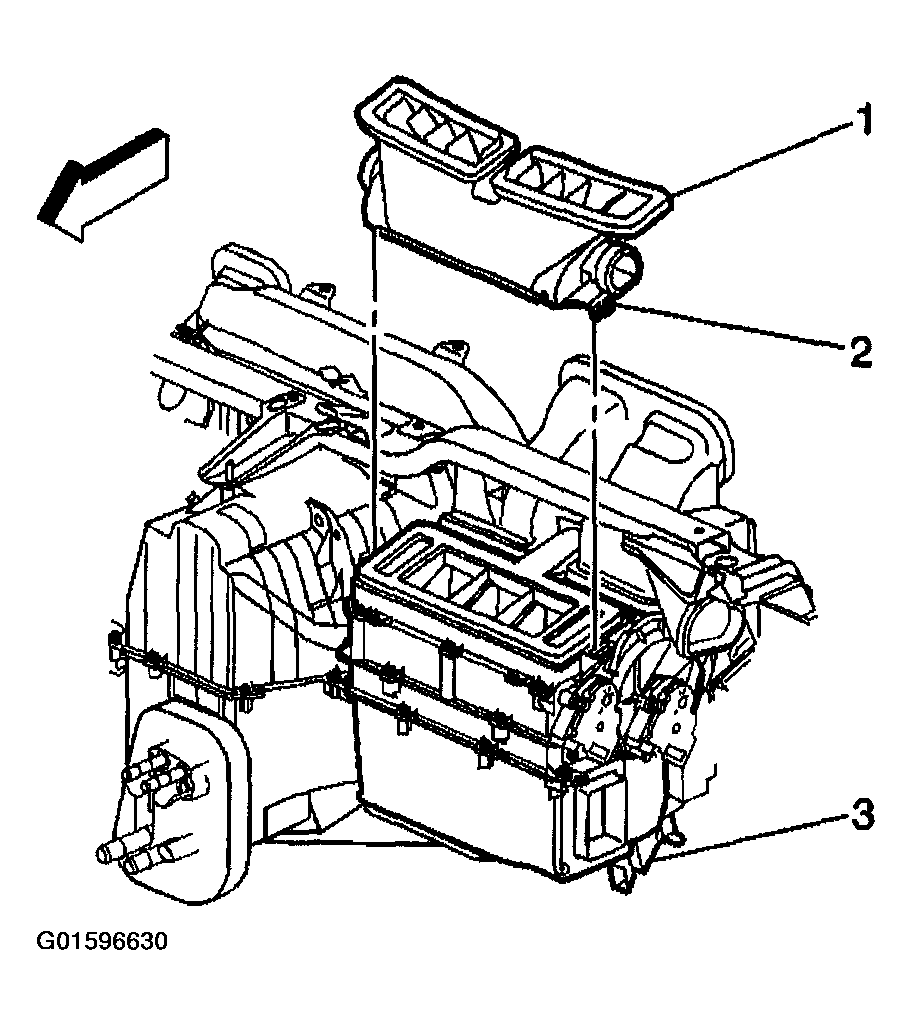

    Fig 3: Releasing Retaining Clips And Removing Defroster Duct
    G01596630Courtesy of GENERAL MOTORS CORP.
