Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the defroster duct.
  2. Insert defroster duct into retaining slots.

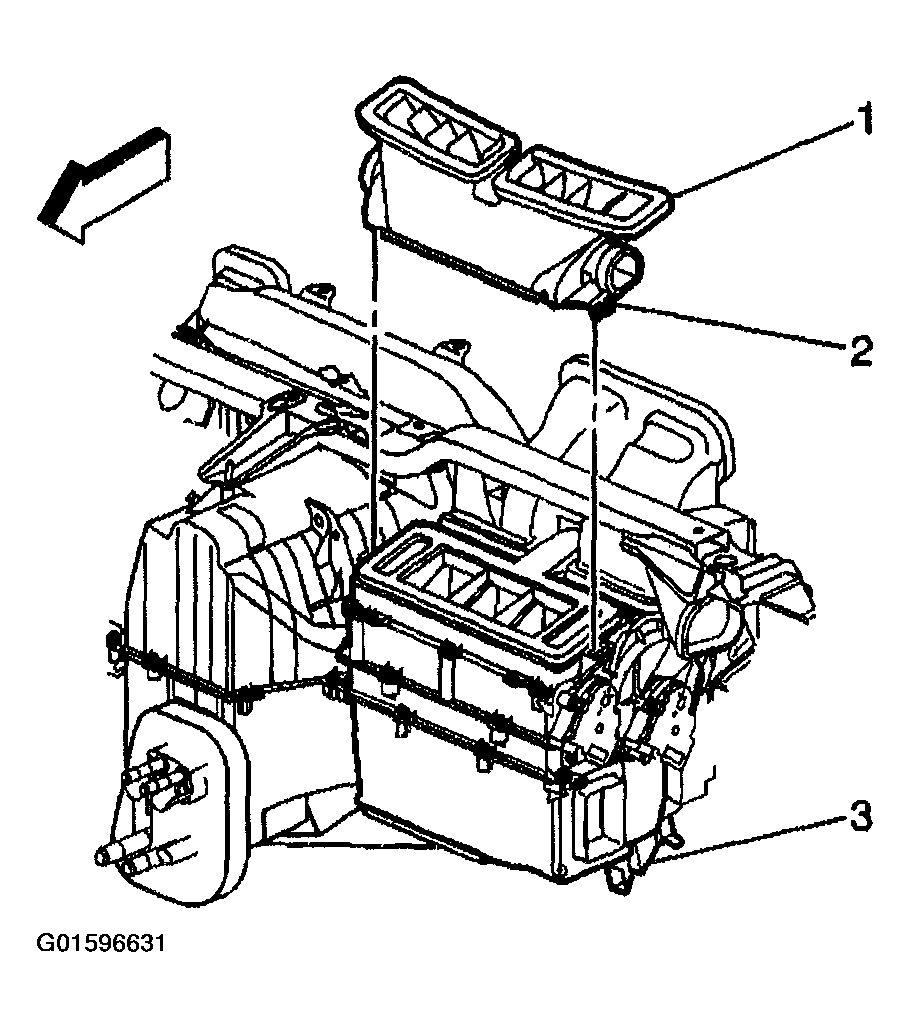

    Fig 1: Installing Defroster Duct And Inserting Defroster Duct
    G01596631Courtesy of GENERAL MOTORS CORP.
  3. Install the driver side window defroster duct.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the retaining screw (1) to the driver side window defroster duct (4).

    Tighten

    Tighten the screw to 2 N.m (18 lb in).

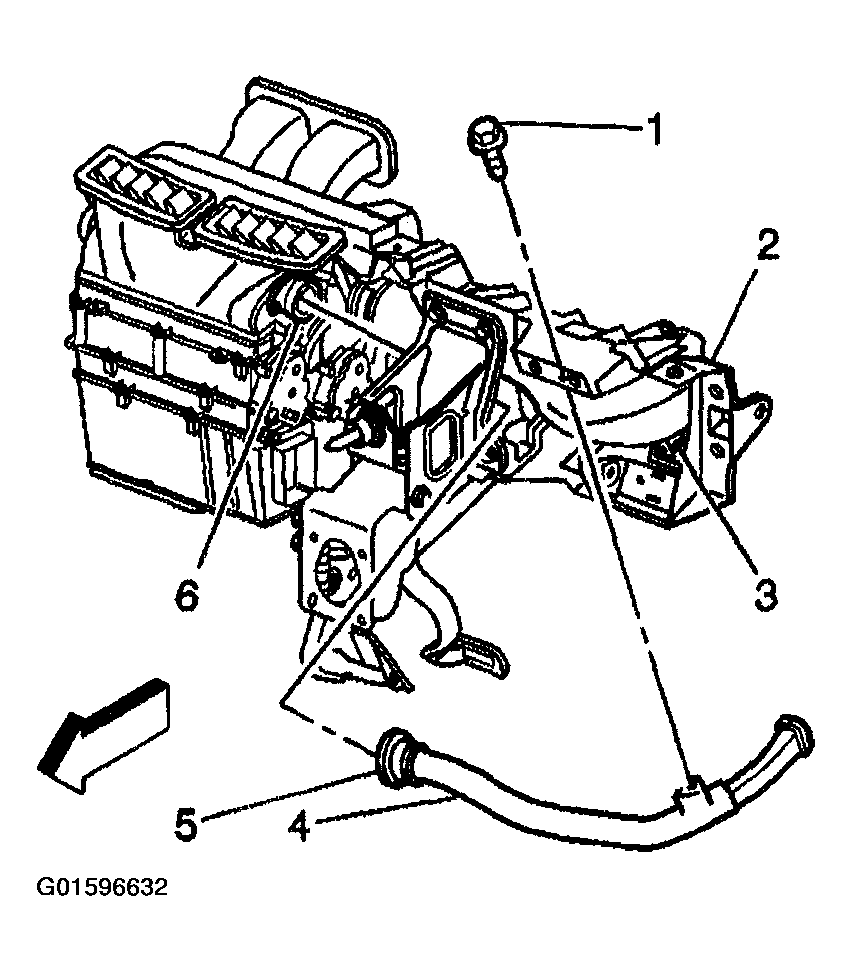

    Fig 2: Installing Retaining Screw To Driver Side Window Defroster Duct
    G01596632Courtesy of GENERAL MOTORS CORP.
  5. Install the passenger side window defroster duct.
  6. Install the passenger side window defroster duct (3) retaining screw (4).

    Tighten

    Tighten the nut to 2 N.m (18 lb in).

  7. Install the I/P assembly. Refer to INSTRUMENT PANEL (I/P) CARRIER REPLACEMENT in Instrument Panel, Gages and Console.

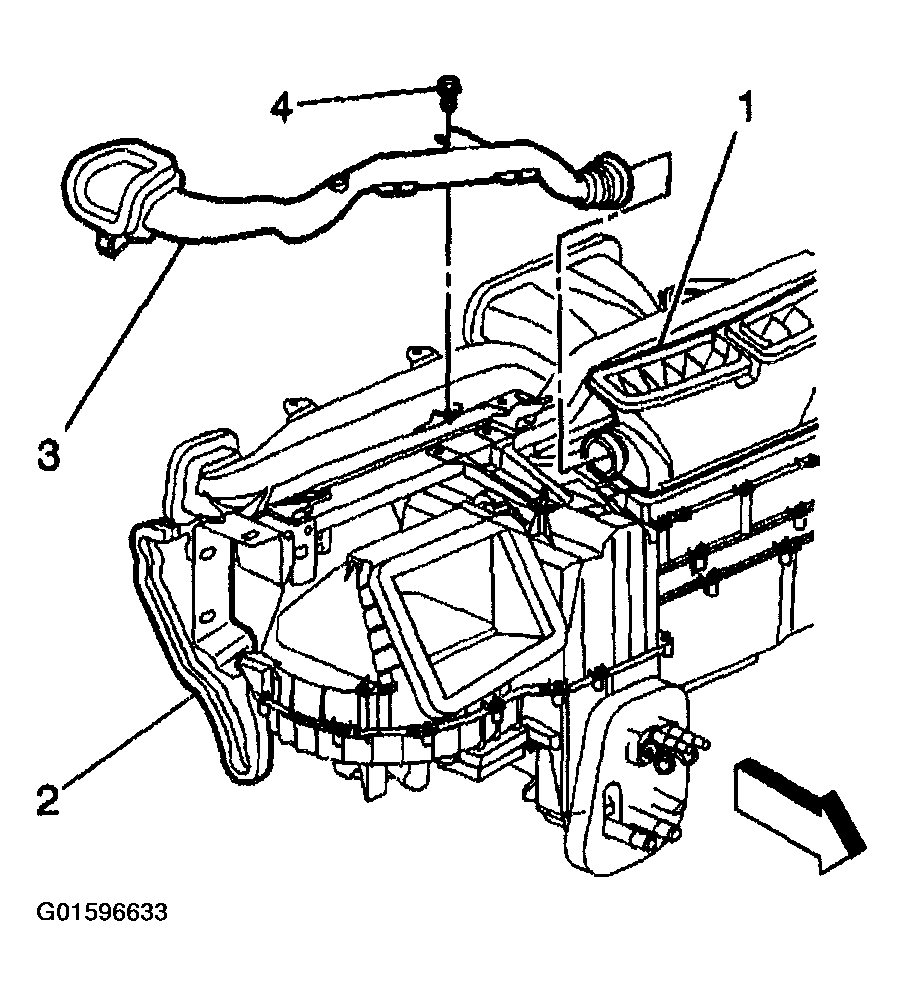

    Fig 3: Installing Passenger Side Window Defroster Duct Retaining Screw
    G01596633Courtesy of GENERAL MOTORS CORP.
