Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the I/P carrier. Refer to INSTRUMENT PANEL (I/P) CARRIER REPLACEMENT in Instrument Panel, Gages and Console.
  2. Remove the screws from the defroster actuator.
  3. Remove the defroster actuator.
  4. Remove screws in order to separate the defroster/mode outlet cover (2) from the HVAC module assembly (1).
  5. Remove the defroster/mode outlet cover.

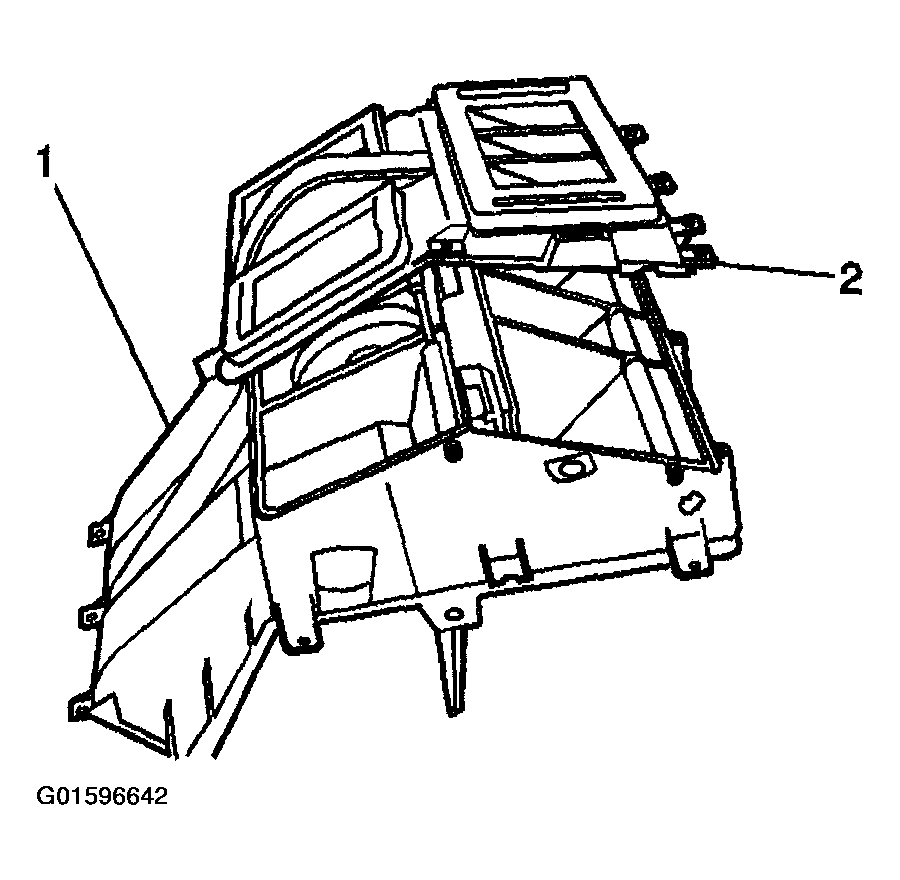

    Fig 1: Separating Defroster/Mode Outlet Cover From HVAC Module Assembly
    G01596642Courtesy of GENERAL MOTORS CORP.
  6. Remove the defroster door (1) from the HVAC module assembly.

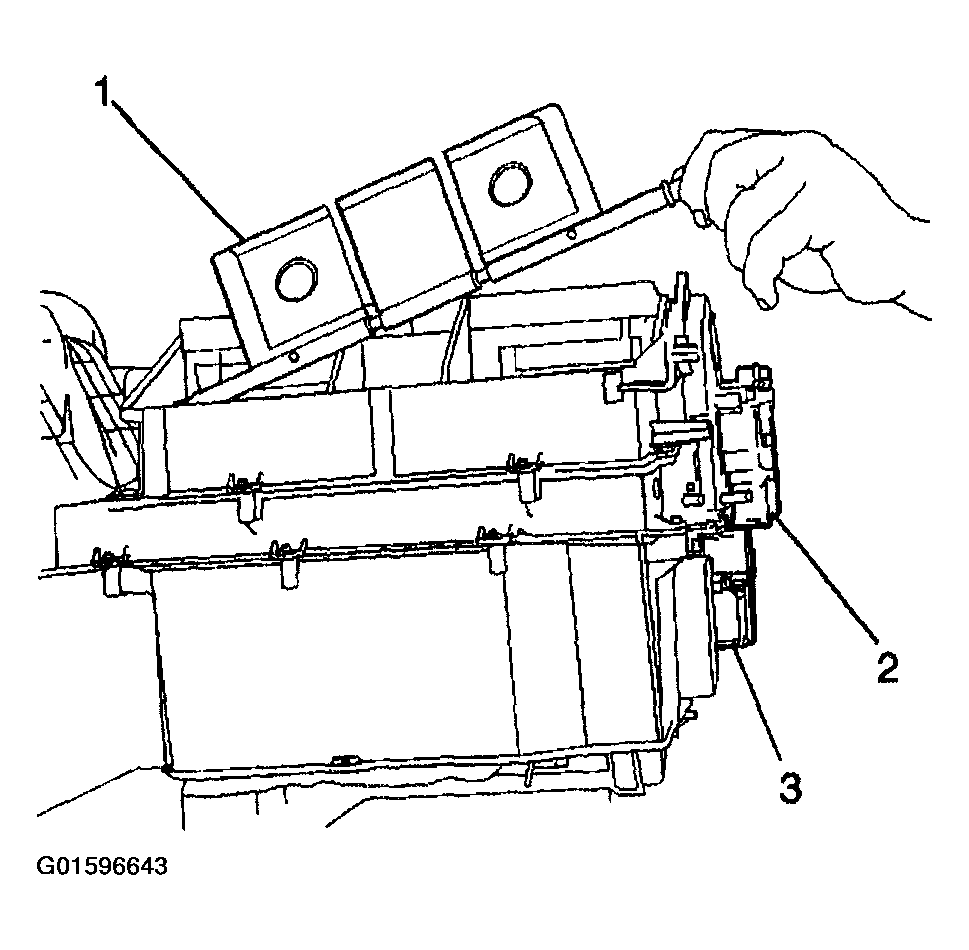

    Fig 2: Removing Defroster Door From HVAC Module Assembly
    G01596643Courtesy of GENERAL MOTORS CORP.
