Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the defroster door (1) to the HVAC module assembly.
  2. Install the defroster/mode outlet cover.

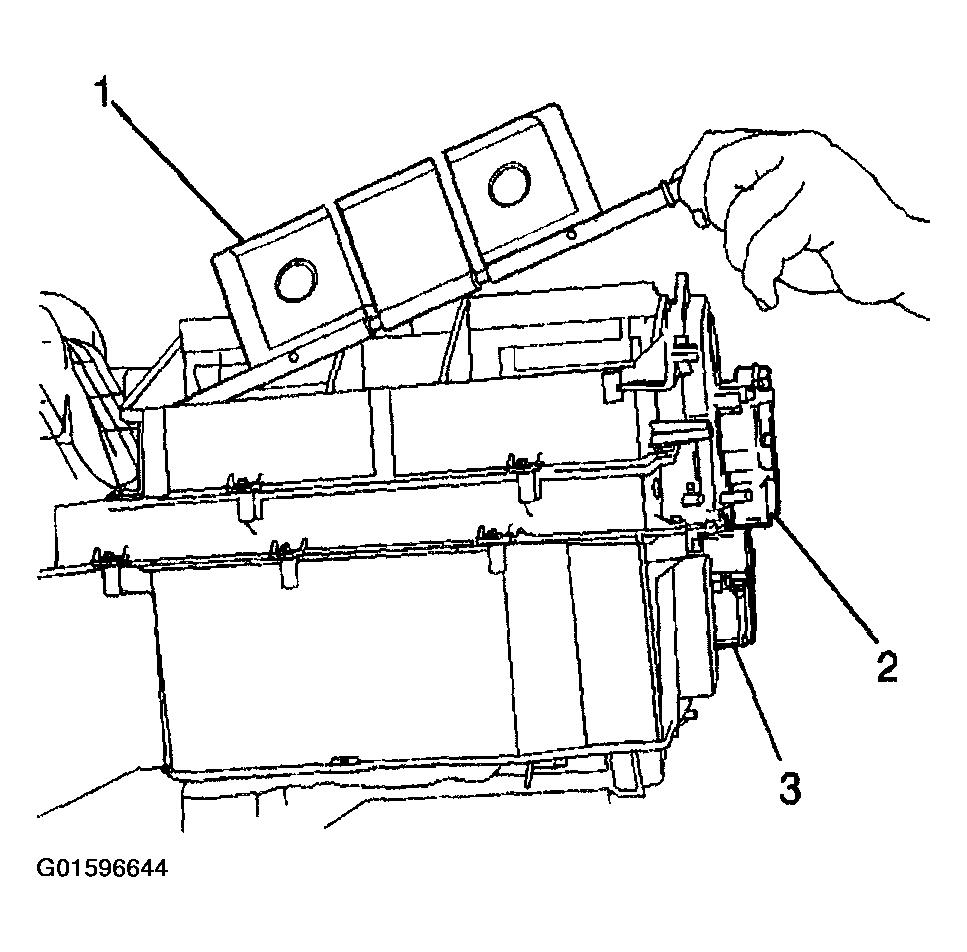

    Fig 1: Installing Defroster Door To HVAC Module Assembly
    G01596644Courtesy of GENERAL MOTORS CORP.
  3. Install the defroster/mode outlet cover screws to the HVAC module assembly (1).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the screws to assemble the defroster/mode outlet to the HVAC module assembly.

    Tighten

    Tighten the screws to 1.9 N.m (18 lb in).

  5. Install the defroster actuator.
  6. Install the screws to the defroster actuator.

    Tighten

    Tighten the screws to 1.9 N.m (18 lb in).

  7. Install the I/P carrier. Refer to INSTRUMENT PANEL (I/P) CARRIER REPLACEMENT in Instrument Panel, Gages and Console.

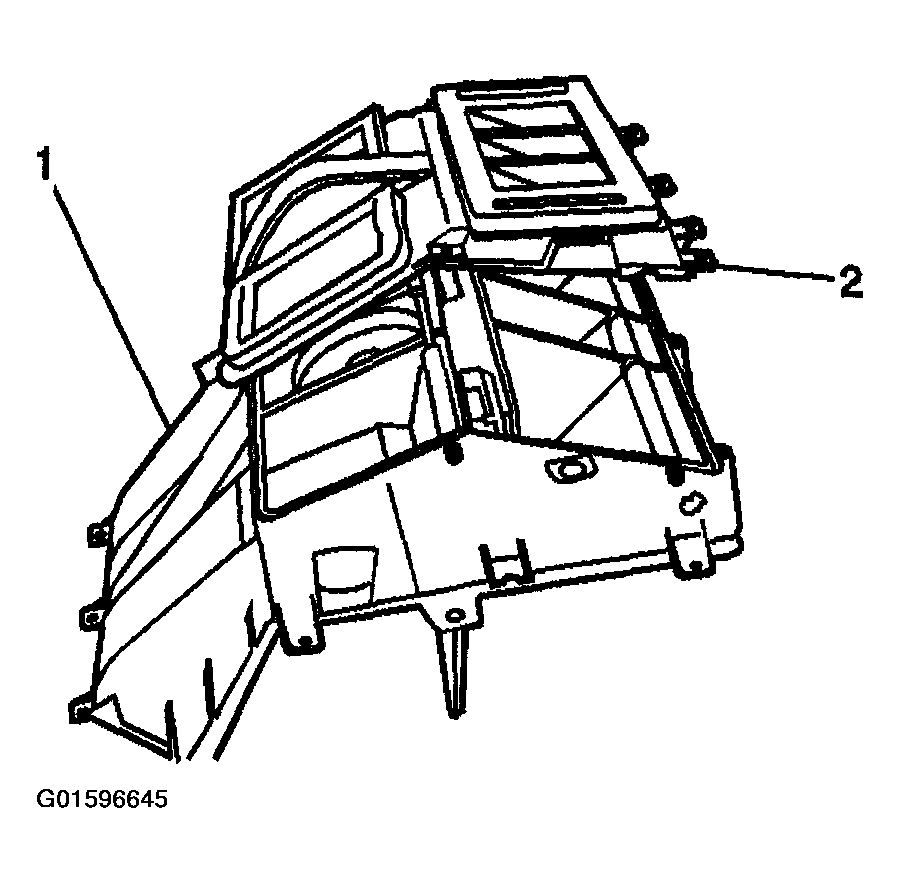

    Fig 2: Installing Defroster/Mode Outlet Cover Screws To HVAC Module Assembly
    G01596645Courtesy of GENERAL MOTORS CORP.
