Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the protective cover from the underhood fuse block.
  2. Remove the compressor relay (1) from the underhood fuse block (2).

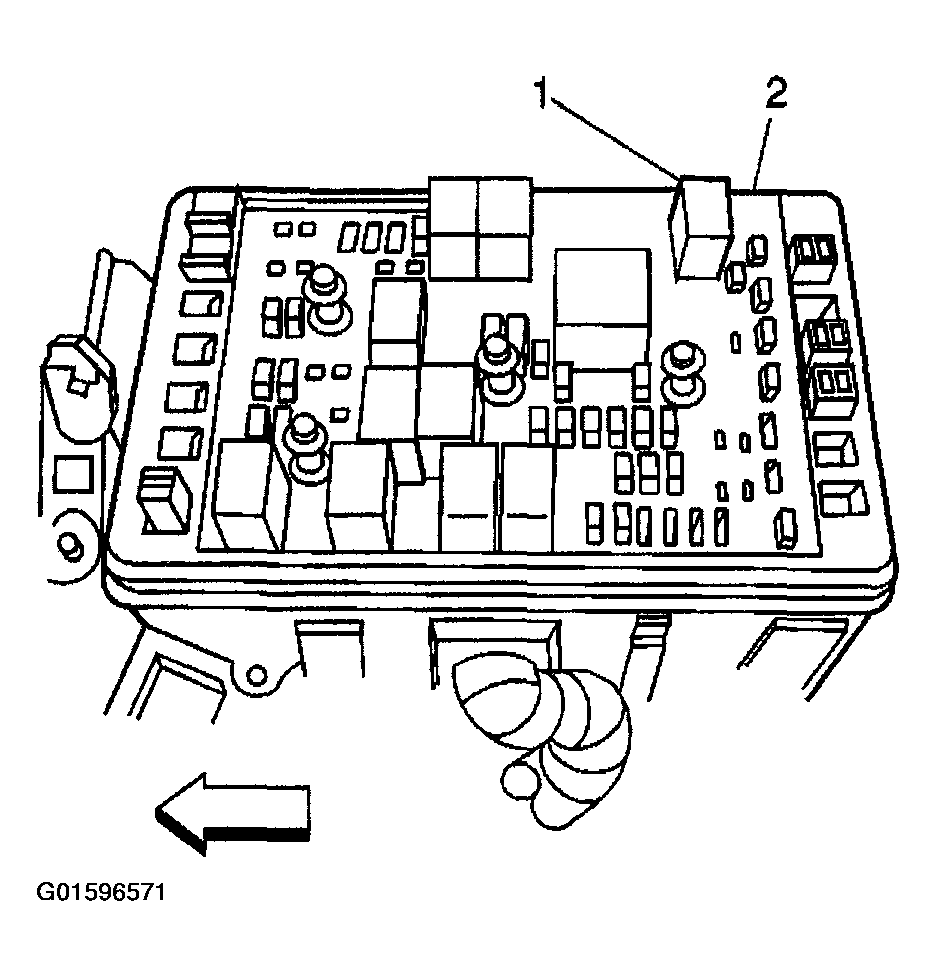

    Fig 1: Removing Compressor Relay From Underhood Fuse Block
    G01596571Courtesy of GENERAL MOTORS CORP.
