Balancing Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: The refrigerant oil in the A/C system must be balanced during compressor replacement.
  1. The replacement compressor is shipped with 240 ml (8.0 oz) of refrigerant oil.
  2. Before installing the compressor, the refrigerant oil will have to be partially drained:
    1. Refer to the amount of refrigerant oil recorded during the compressor removal.
    2. Subtract the amount recorded from the total system capacity. Refer to REFRIGERANT SYSTEM CAPACITIES .

      The difference between the total system capacity and the recorded amount is the calculated amount to be drained from the replacement compressor.

  3. Drain the calculated amount of refrigerant oil from the replacement compressor.

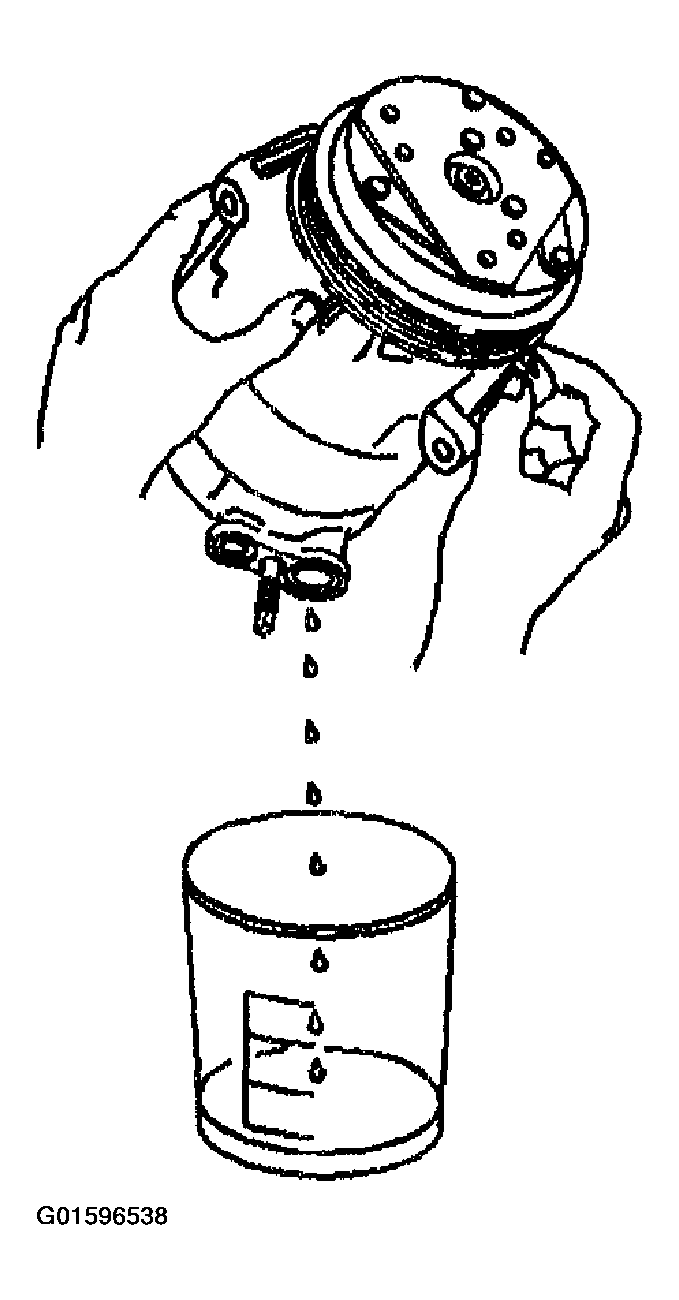

    Fig 1: Draining Calculated Amount Of Refrigerant Oil From Replacement Compressor
    G01596538Courtesy of GENERAL MOTORS CORP.
