Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear HVAC module assembly. Refer to HVAC MODULE REPLACEMENT - AUXILIARY .
  2. Disconnect the electrical connector from the blower motor control processor-auxiliary (3).
  3. Remove the screws from the blower motor control processor-auxiliary (3).
  4. Remove the blower motor control processor-auxiliary (3).
  5. Remove the thermal gasket from the evaporator core-auxiliary surface.

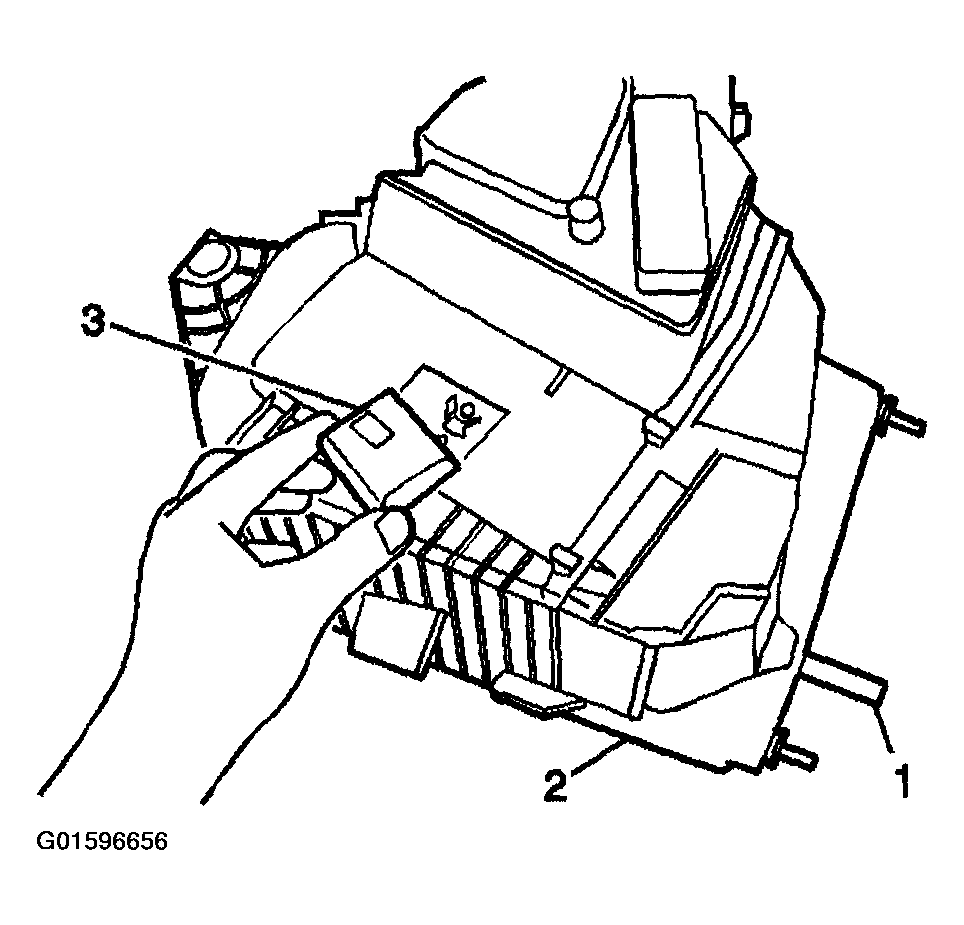

    Fig 1: Disconnecting Electrical Connector From Blower Motor Control Processor-Auxiliary
    G01596656Courtesy of GENERAL MOTORS CORP.
