Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the thermal gasket to the blower motor control processor-auxiliary.
  2. Install the blower motor control processor-auxiliary (3).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the screws to the blower motor control processor-auxiliary (3).

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  4. Connect the electrical connector to the blower motor control processor- auxiliary (3).
  5. Install the HVAC module-auxiliary. Refer to HVAC MODULE REPLACEMENT - AUXILIARY .

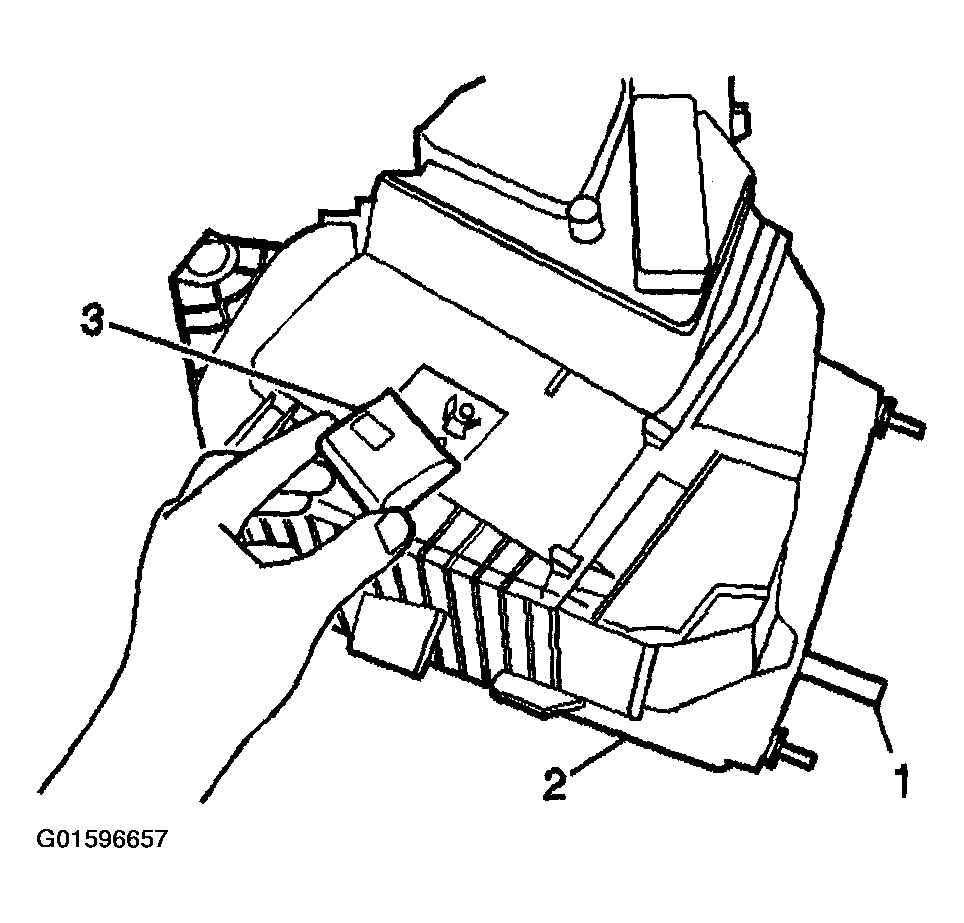

    Fig 1: Connecting Electrical Connector To Blower Motor Control Processor- Auxiliary
    G01596657Courtesy of GENERAL MOTORS CORP.
